Re: [sumo-user] Creating pedestrian crossings
|
Thank you for the quick reply, Couldn't manage to make it work, here is the net file.
Best regards,
Akos
It should work if there is at least one lane which forbids pedestrians for each of the edges being crossed so I suspect your permissions must be adapted somewhere.
If that's not the case, send me the network so I can take a look.
regards,
Jakob
Hello!

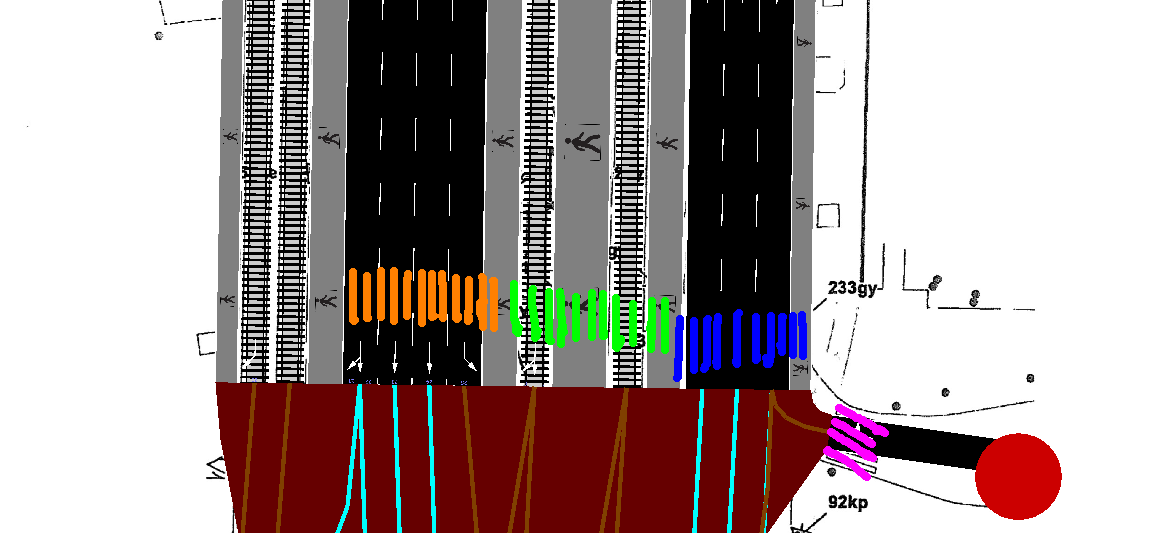

I would like to create seperated pedestrian crossings on a junction, as shown on the image below.
The problem is that when i try to create one, i get the following error message: "Warning: Discarding invalid crossing ':gneJ99_c3' at junction 'gneJ99' with edges 'gneE76 gneE75 gneE78' (no vehicle lanes to cross)."
It won't let me create a crossing unless I add a reverse direction for the lanes. Is there a way to add crossings that can have TLS without adding reverse directions to the lanes?
Thank you in advance!
