| Re: [ptp-dev] PTFw: two tool XML questions |

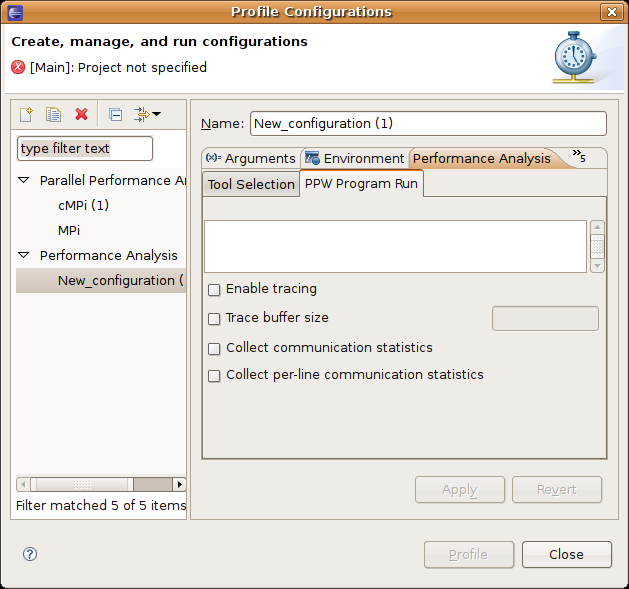

To the first question, yes that looks correct. Whatever scripting language you use needs its executable be the program to which the actual script is passed. This is because the internal execution system doesn't use a proper shell environment and can't interpret the script itself. It just launches executables with their parameters. I'm having trouble reproducing the second issue on my system. The attached file is what the UI looks like by default and nothing is enabled there (does everything else look as expected?). Try just leaving out the 'defstate' parameter altogether. The default, when it is not specified at all, should be disabled. Where/when did you obtain the version of the Perf Framework you are using? Please let me know if you have any more questions. Thanks, Wyatt Spear On Fri, Aug 1, 2008 at 10:28 AM, Max Billingsley III <billingsley@xxxxxxxxxxx> wrote: > > This is Max from the HCS Lab at the University of Florida, working on > integrating our Parallel Performance Wizard (PPW) tool with Eclipse PTP, by > way of the Performance Tool Framework (PTFw). > > I have a couple of questions about the XML files used with the PTFw. > > First, our PPW tool uses compiler wrapper scripts and a "ppwrun" script that > are written in Perl (these are executable scripts with a "shebang" line at > the top). Directly invoking the "ppwmpicc" script seems to work fine, > however based on the following section in the annotated example tool XML > file (from the PTFw wiki page) > > <execute> > <!-- Use this line only if valgrind is a shell script. > The plugin can not execute scripts natively --> > <utility command="bash" group="inbin"/> > <utility command="valgrind" group="valgrind"/> > </execute> > > and after trying a couple of possibilities, it seems that the following > formulation is needed for invoking our "ppwrun" script: > > <execute> > <utility command="perl" group="perl"/> > <utility command="ppwrun" group="ppw"> > ... > </execute> > > Does this seem right? > > Second, I seem to be having trouble with the "defstate" modifier for > <togoption ...>; for some reason this doesn't seem to be working as > expected. For example, the following tool XML (this is a subset of what I'm > working on for PPW) yields the "PPW Program Run" panel having the "Enable > tracing" option selected by default. > > <?xml version="1.0" encoding="UTF-8"?> > <toolset.01> > <tool name="PPW"> > <compile replace="true"> > <CC command="ppwmpicc" group="ppw"/> > </compile> > <execute> > <utility command="perl" group="perl"/> > <utility command="ppwrun" group="ppw"> > <argument value="--output=ppw_eclipse.par"/> > <optionpane title="PPW Program Run" prependwith="" > enclosewith="" enclosevalues="" separatewith=" "> > <togoption label="Enable tracing" > optname="--trace" > tooltip="Record full program trace during run" > defstate="false"/> > <togoption label="Trace buffer size" > optname="--trace-buffer" > tooltip="Set the trace buffer size to the specified number of > bytes (most users should not need to change this)" > defstate="false"> > <optvalue type="text" default=""></optvalue> > </togoption> > <togoption label="Collect communication statistics" > optname="--comm-stats" > tooltip="Record statistics on (explicit and implicit) > communication during program run" > defstate="false"/> > <togoption label="Collect per-line communication statistics" > optname="--line-comm-stats" > tooltip="Record per-line statistics on (explicit and implicit) > communication during program run" > defstate="false"/> > </optionpane> > </utility> > </execute> > <analyze> > <utility type="view" command="ppw" group="ppw"> > <argument value="ppw_eclipse.par"/> > </utility> > </analyze> > </tool> > </toolset.01> > > > Does anything here look suspicious? > > -Max > > > _______________________________________________ > ptp-dev mailing list > ptp-dev@xxxxxxxxxxx > https://dev.eclipse.org/mailman/listinfo/ptp-dev > >
Attachment:
Description: PNG image
