Hi,
I pushed a new gerrit to add the support of the new DSML plugin version[1]. The stereotype <<MessageHandling>> is also
in the Mars maintenance branch, so I could apply it to the UML-RT and UML-RT StateMachines profile.
The new messages do not have the ‘not valid’ at the end. I added new tests on the validation for the capsulepart multiplicities

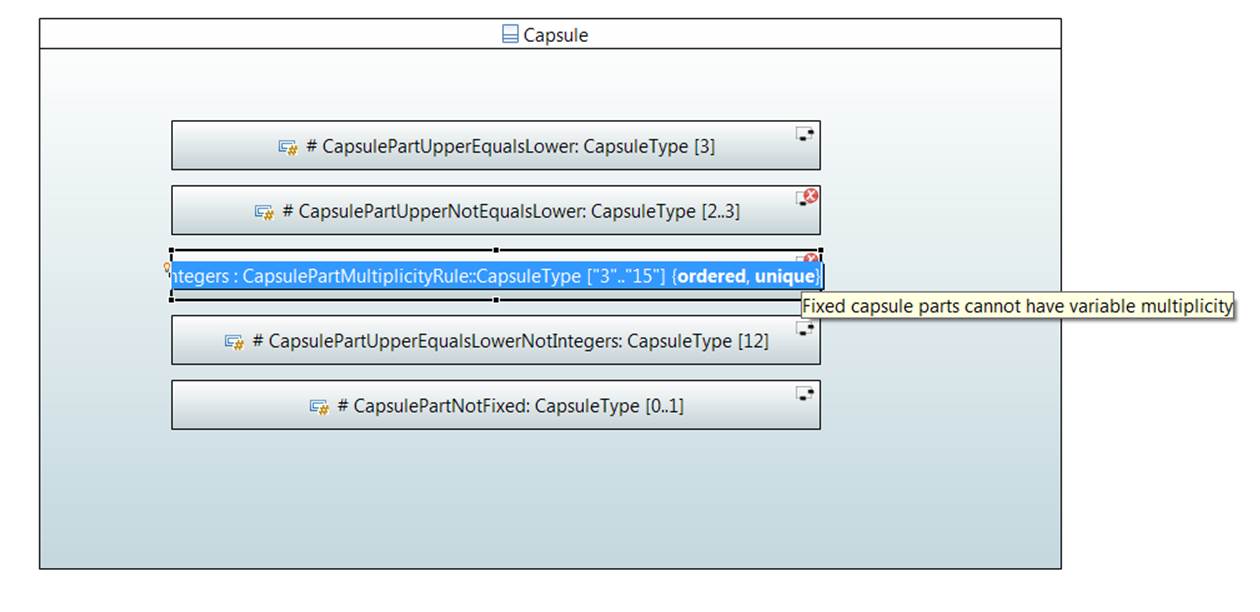

to be sure the rule was well written, because I had doubt on non-integer based multiplicity compare. I could also add a check on the message being presented to the user, to be sure we have no regression in this area. Here is a snapshot from the test model
for validation rule, with a compare between 2 upper/lower values being LiteralStrings “3” and “15”.
![](jpgPwvUhEvtEX.jpg)
Regards
Rémi
[1]
https://git.eclipse.org/r/62335
-------------------------------------------------------
Rémi SCHNEKENBURGER
+33 (0)1 69 08 48 48
CEA Saclay Nano-INNOV
Institut CARNOT CEA LIST
www.eclipse.org/papyrus
De : papyrus-rt-dev-bounces@xxxxxxxxxxx [mailto:papyrus-rt-dev-bounces@xxxxxxxxxxx]
De la part de Peter Cigéhn
Envoyé : mercredi 9 décembre 2015 13:09
À : papyrus-rt developer discussions <papyrus-rt-dev@xxxxxxxxxxx>
Objet : Re: [papyrus-rt-dev] Update of the profile and update version numbers
I have tried to look at changes in Gerrit, but I am not sure I can see the change related to the discussion in the following Bugzilla:
Ansgar have made some improvements to the DMSL Validation tooling regarding how the messages gets formatted. I would have expected the new <<MessageHandling>> stereotype to have been applied, with the property "messageMode"
set to "NameIsMessage" (if I understood Ansgar correctly regarding how this new feature should be used for the UML-RT profile). But maybe that new feature is only available in the DSML Validation tooling on the Neon track?
So I was just expecting the improvement Ansgar made to be included in this update of the profile. But maybe we have to wait until we are on the Neon track to get these improvements included in Papyrus-RT?
One very minor comment: I am not used to write OCL so I am not sure what conventions normally are used. But I can see that you have written the multiplicity constraint for capsule parts without spaces around ">", whereas
Bran in his proposal had spaces. I guess these are things that an OCL expert will find "annoying" if the convention normally is to use spaces around ">" (you have used spaces around "=").
On 9 December 2015 at 12:24, SCHNEKENBURGER Remi 211865 <Remi.SCHNEKENBURGER@xxxxxx> wrote:
Hi,
I pushed on gerrit an updated version of the profile [1]. That will be the first step of the general update to version 0.8.0 of Papyrus-RT.
Before continuing the update of the version numbers to 0.8.0, could you have a look to the new profile version and check if everything is OK for you?
Tomorrow, I will update the version numbers. I initially planned to update all the version numbers of the plugins / features doing a basic search and replace.
Do you all agree to that update, also for codegen and xtumlrt plugins ? There will probably be some issues on the build system, as there could be in the Hudson job configurations some references to 0.7.1 versions I do not see. Is the timing OK for you to have
the update tomorrow or would you like to wait another time frame?
Regards,
Rémi
[1]
https://git.eclipse.org/r/#/c/62285/
-------------------------------------------------------
Rémi SCHNEKENBURGER
+33 (0)1 69 08 48 48
CEA Saclay Nano-INNOV
Institut CARNOT CEA LIST
www.eclipse.org/papyrus
