Re: [sumo-user] Modifying TLS cycle raises an error when opening modifie

[Alejandro Rodríguez Sánchez <alrodr25@xxxxxx>]

Hello again Jakob,

If I reduce the original network -sumonetwork.net.xml- excluding the problematic junction (the one which arised error when modifying the original network) and modify some phases from traffic lights signals at the large intersection on the central part of the network (the one which includes edge 679019848), no errors arise this time (sumonetwork_reduced_tlsmod.net.xml).

However, if when reducing the network, the problematic junction "cluster_1246744979_1395083865_30438446_41430295_4816012929_4816012930_4818455270_7672571397_7672571399" is included in the network, again an error arises when trying to load the modified network (sumonetwork_reduced2_tlsmod.net.xml)

 sumonetwork_reduced2_tlsmod.net.xml

 sumonetwork_reduced_tlsmod.net.xml

.

Besides, it is remarkable to me that the problematic junction is quite far of the intersection in which I modify the cycles of traffic light signals.

Best regards,

Alejandro

PD: Please, find the files attached as google drive links.

 sumonetwork.net.xml

El mar, 28 sept 2021 a las 9:44, Alejandro Rodríguez Sánchez (<alrodr25@xxxxxx>) escribió:

Thanks for the answer Jakob,

I haven't be able yet to do this but I'll provide the answer with the result as soon as possible.

Regards,

Alejandro.

El vie, 24 sept 2021 a las 12:27, Jakob Erdmann (<namdre.sumo@xxxxxxxxx>) escribió:

Please try to reproduce your problem in a small network (see https://sumo.dlr.de/docs/Netedit/neteditUsageExamples.html#reducing_the_extent_of_the_network)

Then provide this network along with the exact steps to reproduce the issue (a saved network that cannot be loaded by sumo).

Thanks,

Jakob

Am Fr., 24. Sept. 2021 um 11:49 Uhr schrieb Alejandro Rodríguez Sánchez <alrodr25@xxxxxx>:

Hello everyone,

When I modify with netedit the TLS cycle of a cluster of traffic light signals in a crossroad, and after saving the changes in a new sumonetwork file, I have the following error when I try to open the new network in sumo-gui:

Error: Invalid linkIndex '23' in connection controlled by 'cluster_1246744979_1395083865_30438446_41430295_4816012929_4816012930_4818455270_7672571397_7672571399

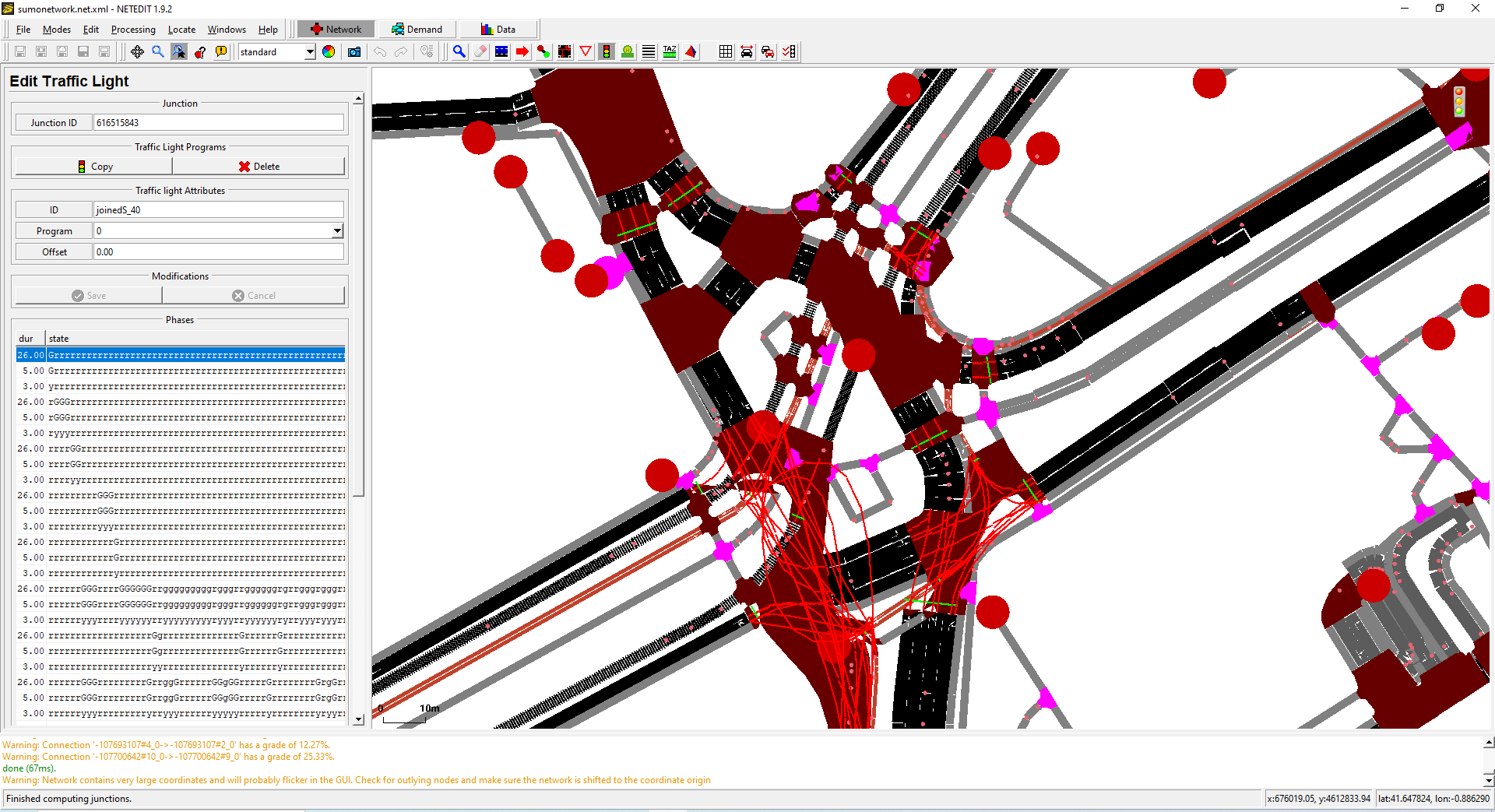

I don't really understand this error becuase, as far as I am concerned, I haven't modified any links, just added some states of the TLS cycle. The joined TLS cluster is quite large as you can see in this image below:

I can send you both unmodified and modified sumonetwork files if you need them, but they are too large to send them by email.

Best regards,

Alejandro.

--

Alejandro Rodríguez Sánchez

PhD student
CIEMAT // Universidad Complutense de Madrid
28040 Madrid
email: alrodr25@xxxxxx

Website: https://alexrsanchez.github.io/en/
