Re: [sumo-user] How to edit the median left-turn lane and waiting area b

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

A waiting area is automatically generated when the left turn lane has the green light at the same time as the oncoming traffic from the opposite direction. You can adjust the position using the connection attribute 'contPos'. See

https://sumo.dlr.de/docs/Simulation/Intersections.html#waiting_within_the_intersection

https://sumo.dlr.de/docs/NETEDIT.html#setting_connection_attributes

Am Fr., 27. Sept. 2019 um 09:45 Uhr schrieb Manh Do Van <manhdv@xxxxxxxxxx>:

Dear Users,

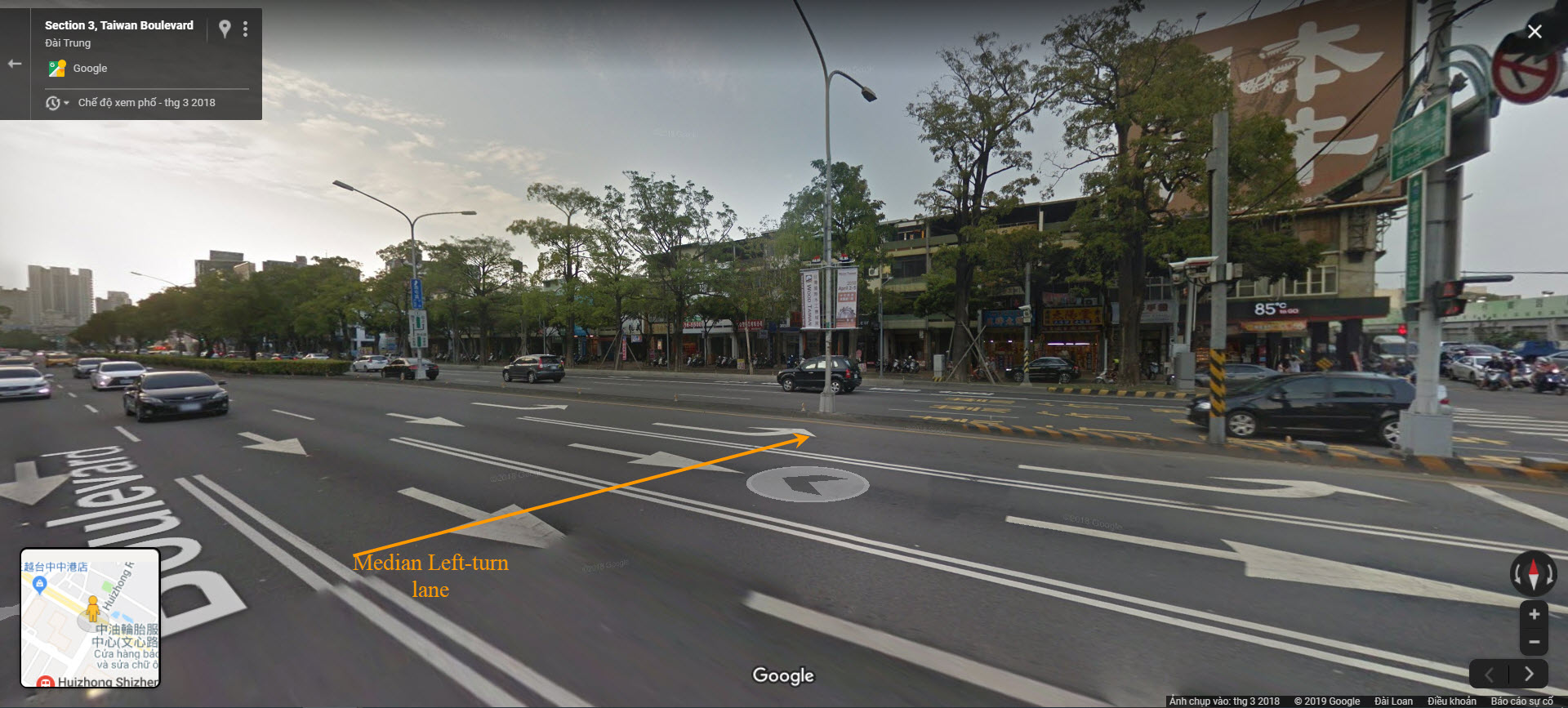

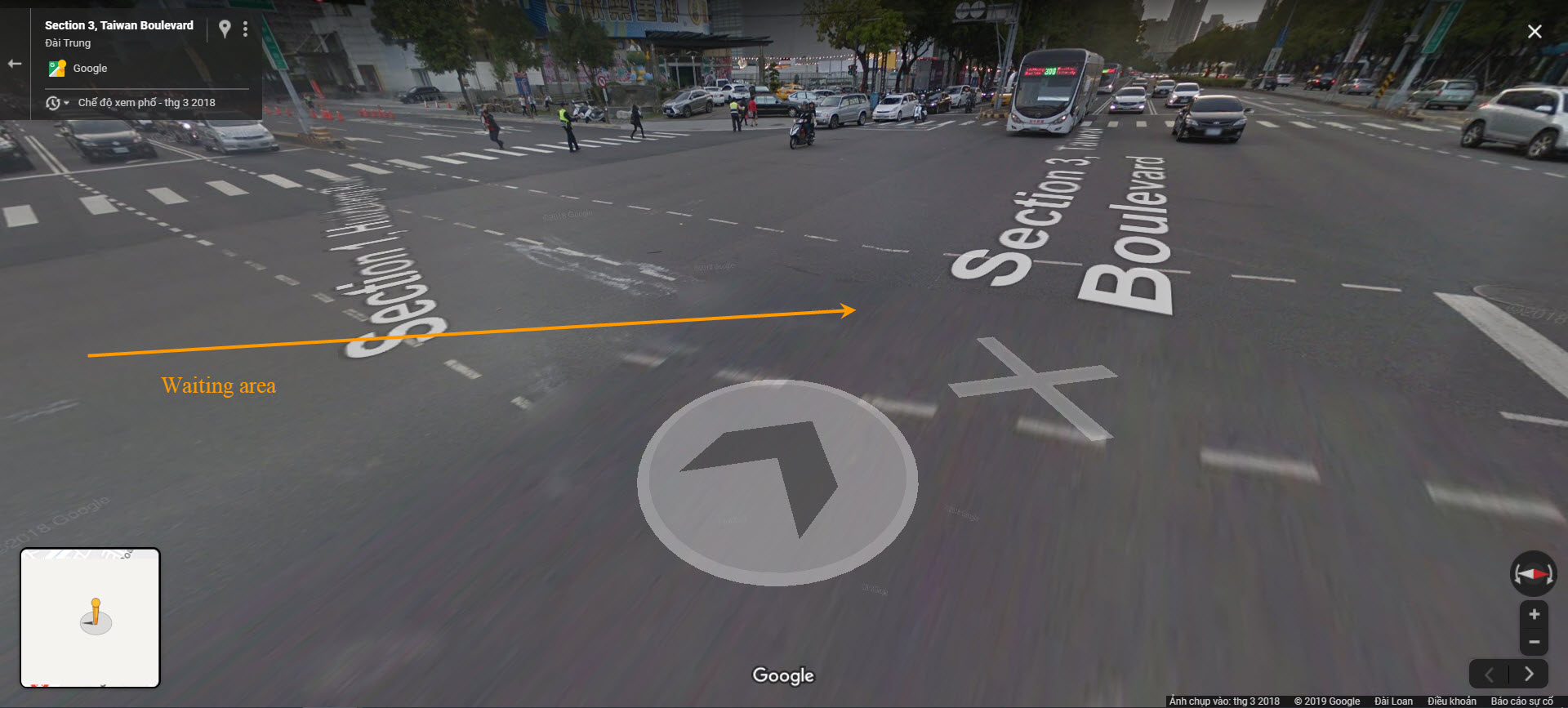

When simulating the traffic geometry, the traffic geometry of intersection has a new design for the median left-turn lanes and waiting areas, for example, two pictures that I attached to this email. How can I edit the traffic geometry for both of them by NETEDIT or another solution?

Thanks for your help.

Regards,
