Re: [sumo-user] How to edit the median left-turn lane and waiting area b

[Manh Do Van <manhdv@xxxxxxxxxx>]

Thanks, Mr. Jakob Erdmann

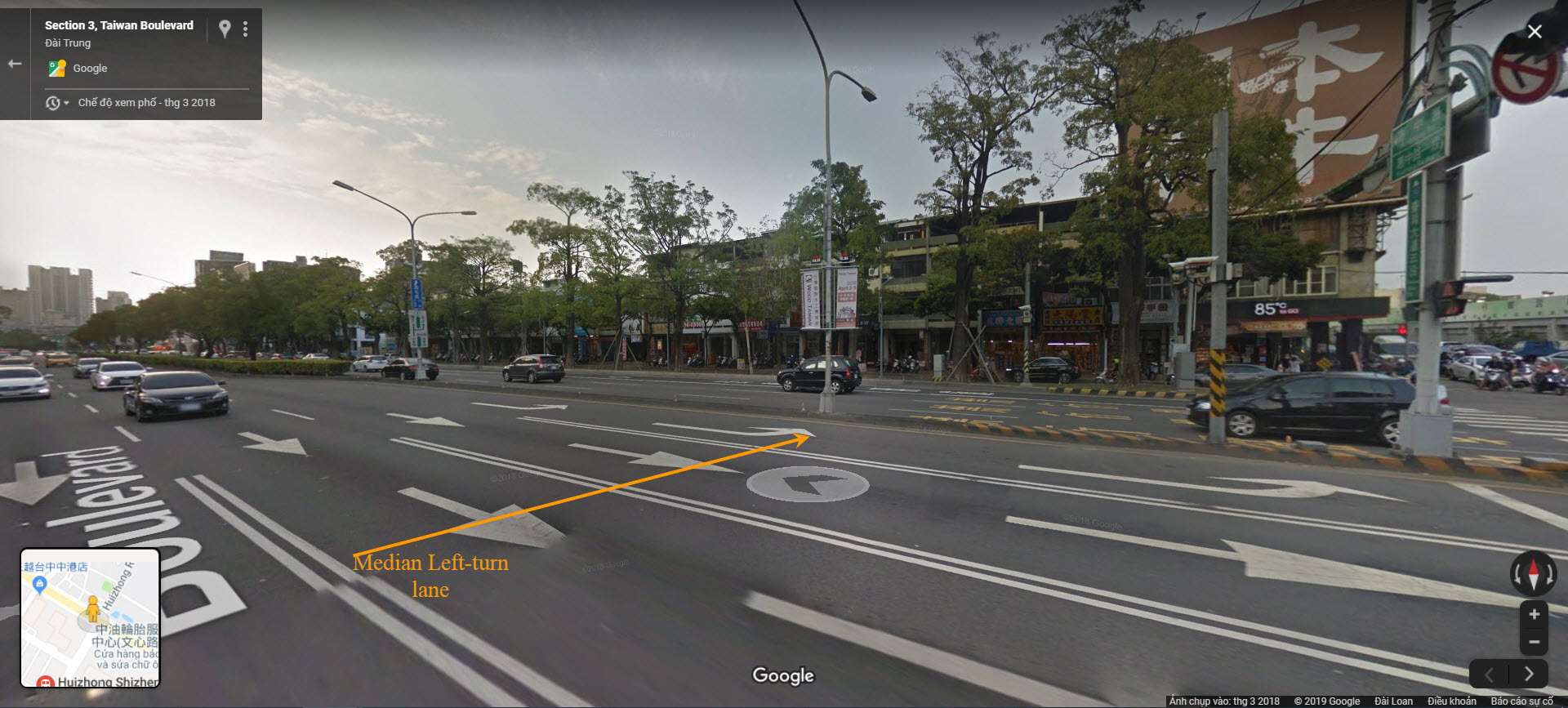

One more thing, with the median design, for example in the second picture that I attached to the previous email, the arterial road has 5 lanes, but near the intersection, they designed to 6 lanes ( one lane for left-turn). How can I draw or edit my traffic geometry by NETEDIT? The osm file in this area is not good enough so I have to edit a lot of error information for traffic geometry.

Thanks.

Regards,

On Sat, Sep 28, 2019 at 2:56 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

A waiting area is automatically generated when the left turn lane has the green light at the same time as the oncoming traffic from the opposite direction. You can adjust the position using the connection attribute 'contPos'. See

https://sumo.dlr.de/docs/Simulation/Intersections.html#waiting_within_the_intersection

https://sumo.dlr.de/docs/NETEDIT.html#setting_connection_attributes

Am Fr., 27. Sept. 2019 um 09:45 Uhr schrieb Manh Do Van <manhdv@xxxxxxxxxx>:

Dear Users,

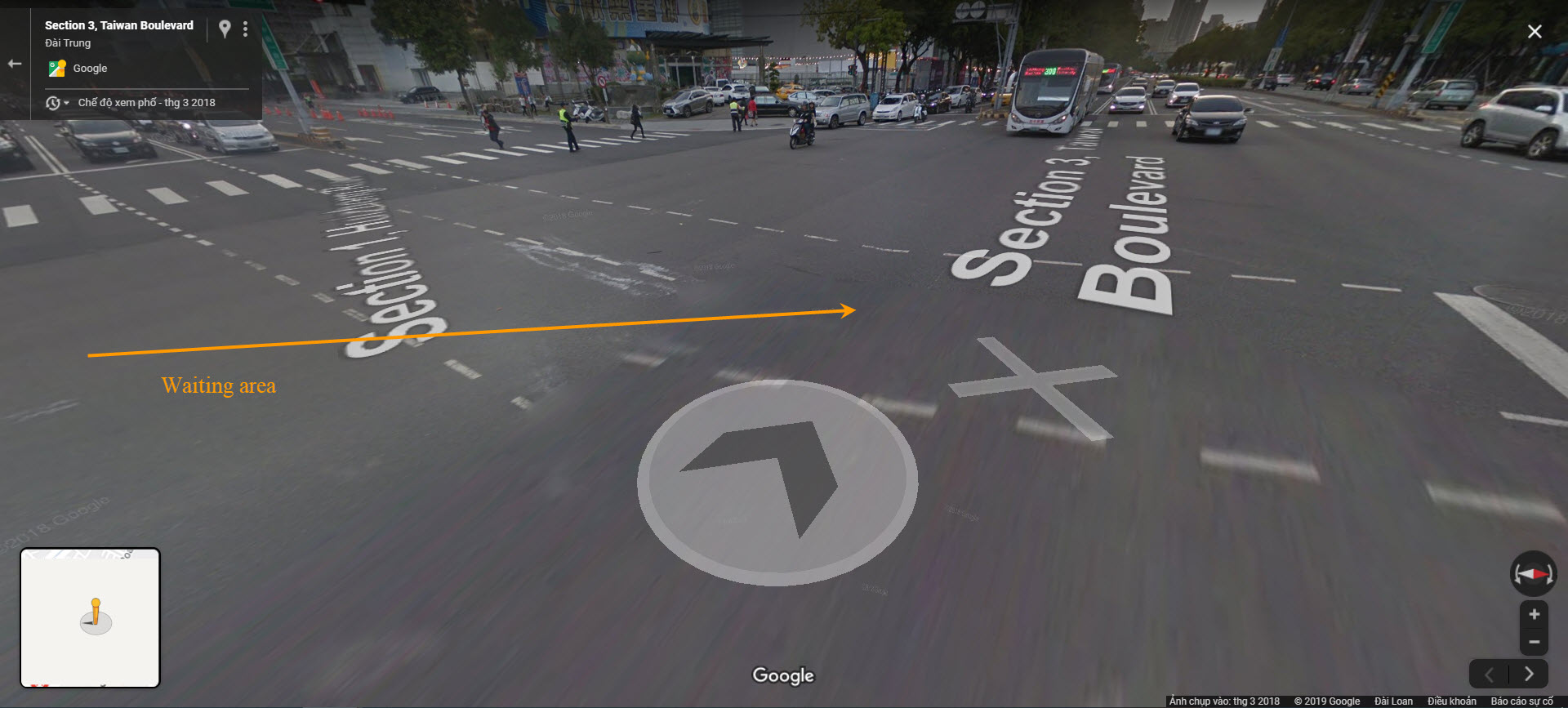

When simulating the traffic geometry, the traffic geometry of intersection has a new design for the median left-turn lanes and waiting areas, for example, two pictures that I attached to this email. How can I edit the traffic geometry for both of them by NETEDIT or another solution?

Thanks for your help.

Regards,
