Re: [sumo-user] routes & netedit & buses
You woud reference it from vehicles and flow defintions. (attribute 'route').
You can also use routes as child elements for vehicles and flows. Netedit, referes to these as 'embeddedRoute' and lets you convert between both usages (dev-version).

Am Mo., 27. Mai 2019 um 16:16 Uhr schrieb Menno van der Woude <menno@xxxxxxxxxxxxxxxxxx>:

Hello Jakob,

thanks for your prompt reply. I will try the dev version in relation to the crash.

What would be the appropriate way to use a route created in NETEDIT (or otherwise)?

Greets, Menno

On 27-5-2019 16:13, Jakob Erdmann wrote:
Hello,
the easiest solution would be to forbid busses on some edges/lanes when you want to force them on a particular bus lane.
In the netedit route creation mode you can specify intermediate edges to tailor a given route to your needs.
If netedit crashes, please try the very latest development version.
If that also crashes, please create a bug report with instructions for reproducing the crash so we can fix it.

regards,
Jakob

Am Mo., 27. Mai 2019 um 16:08 Uhr schrieb Menno van der Woude <menno@xxxxxxxxxxxxxxxxxx>:

Hello all,

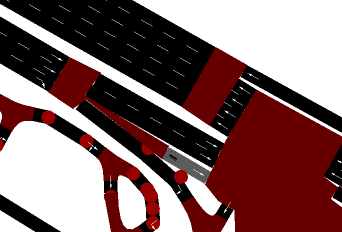

in a network I would like for buses to follow a specific route, because there are small stretches of road only meant for them at intersections; for example:

where the gray road is for buses only. Is it possible to achieve this with the 'Mode for creating routes'? How would I tell buses to use a given route? I now use od2trips for all vehicles in the simulation, including buses (mostly because this is a method that I know). Or is it better to somehow manually specify bus trips? Also: is it possible to tell a bus to use a specific lane, so it will prepare for using the bus-only edge?

Note: if I try to create a route, and save the demand data file, NETEDIT tells me there are conflicts, and proposes to fix them, but crashes when I click OK.

Thanks, greets,

Menno
