[sumo-user] Resolve network warnings

[fereshte jafari <j.fereshte1993@xxxxxxxxx>]

Hello!

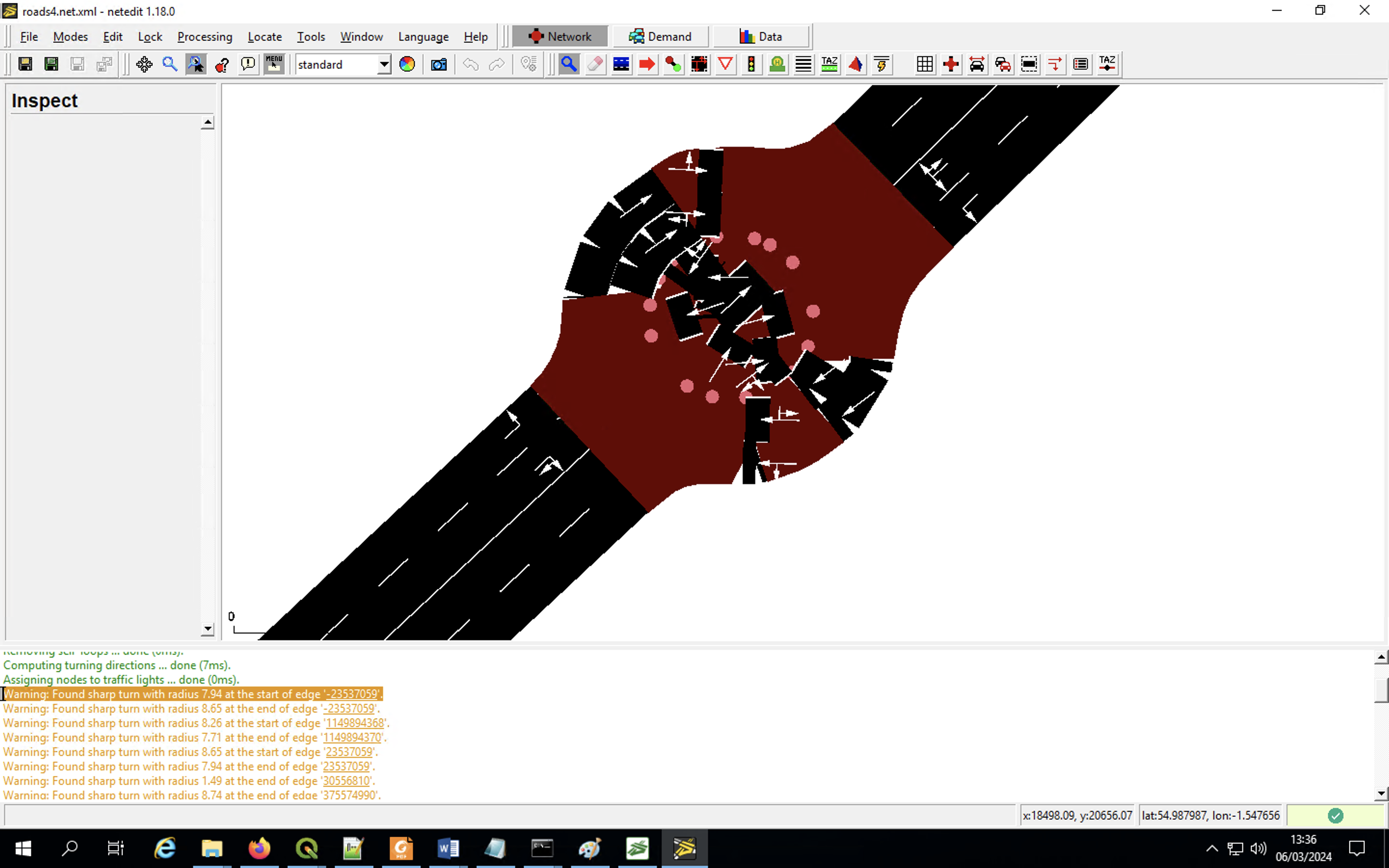

I am facing many warnings in my network. Several of them related to a roundabout as shown in the picture below:

I am thinking about removing this roundabout and recreating it as explained here (Converting an intersection into a roundabout): https://sumo.dlr.de/docs/Netedit/neteditUsageExamples.html But I am not sure if it is the best solution.

Beside that, I also have the below warnings:

Warning: Speed of straight connection '-604070588_1->-33040725_1' reduced by 7.28 due to turning radius of 20.06 (length=7.15, angle=36.28).
Warning: Speed of straight connection '33040725_0->604070588_0' reduced by 5.53 due to turning radius of 27.30 (length=9.84, angle=36.28).
Warning: Speed of straight connection '33040725_1->604070588_1' reduced by 6.14 due to turning radius of 24.65 (length=8.86, angle=36.28).
Warning: Speed of straight connection '713933105_1->604070587_1' reduced by 6.08 due to turning radius of 24.89 (length=11.41, angle=42.13).
Warning: Speed of straight connection '-604070587_0->-713933105_0' reduced by 7.63 due to turning radius of 18.73 (length=8.49, angle=42.13).

By clicking on them it does not go to the warning place on the network and I have no idea on how to get rid of them.

Any ideas and suggestions would be appreciated.

--

Sincerely,

Fereshteh Jafari Shahdani

PhD candidate, Dep. of Civil Engineering

ISISE - University of Minho
