Re: [sumo-user] [sumo-dev] 4 way stop intersection and traffic flow rule

Hi Pallavi,



you'll find additional attributes in the FCD output file if you activate them by --fcd-output.geo true --fcd-output.distance true. Please read our documentation summary page about safety to get to know more about causing collisions deliberately.



Best regards

Mirko









-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-08T09:02:27+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







Hi Mirko,

In two-way stop intersections in the US,
the principles for determining right-of-way are similar to four-way stops, but not identical.
Like four-way stops, the first vehicle to arrive at a complete stop generally has the right of way.Since there are no traffic lights dictating turns, left turns require more caution and yielding in a two-way stop.

I have a few more questions:

  1. In the simulation output, I extracted fcd output xml, but failed to extract fcdoutput.Distance. Can you tell me how to extract the output of those who are generated by the bool parameter like --fcd-output.geo <BOOL>.

  2. Additionally, I am having trouble adding processing, such as

    --collision.check-junctions <BOOL> ,collision.check-junctions.mingap <FLOAT>I

    After adding these my sumo-gui not loading model.when to add these i need additional steps?

  3. I want to create a vehicle - pedestrian collision .how to create the scenario without Traci

Thanks,
Pallavi Zambare

On Wed, Feb 7, 2024 at 1:33 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Hi Pallavi,



in this case you can use the intersection type "priority_stop" and configure the "priority" attribute of the incoming edges like described in the documentation: raise this value for the main road to a higher value than the minor roads. Does the two-way stop intersection in the US work the same as the four-way one regarding who drives first? Or do vehicles wanting to turn left have to wait in any case for opposing traffic?



Best regards

Mirko









-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-06T23:54:32+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







Thank you for the information.
When creating 4 ways stop intersection scenario, we set intersection "type" attribute to "allway_stop". but it is not work with 2-way stop intersection scenario.so there is any attribute to stop the particular edge.  also have attached the scenario.
PFA

Best Regards,
Pallavi.

On Tue, Feb 6, 2024 at 9:39 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Dear Pallavi,



please look into points of interest in sumo-gui. You can load arbitrary raster images into the simulation.



Best regards

Mirko









-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-06T15:18:14+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







Hi Mirko ,
Is there any option to add a stop sign for the edge or lane?

Thanks,
Pallavi Zambare





On Mon, Feb 5, 2024 at 8:46 AM Pallavi zambare <pzambare3@xxxxxxxxx> wrote:
Thank you for the clarification.

Thanks,
Pallavi Zambare

On Mon, Feb 5, 2024 at 2:27 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Hi Pallavi,

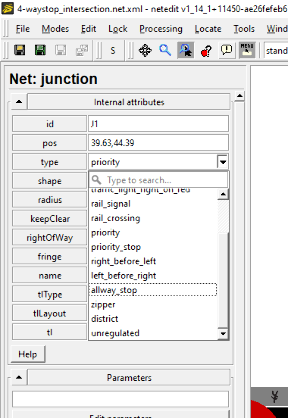

your intersection is still set to priority type. Please change the type as in the screenshot attached (and explained before). Regarding your other question:

You can define electric vehicles using the battery device. It is up to you which vehicle type settings you consider manual driving or automated...







Best regards

Mirko









-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-03T08:00:16+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







I have attached my scenario.I have another question how to define different kinds of vehicles like Autonomous vehicles ,electrical vehicles and manual vehicles.
PFA.

On Fri, Feb 2, 2024 at 1:14 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Hi Pallavi,



can you send me your scenario? I think otherwise I won't be able to find the reason.



Best regards

Mirko







-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-01T16:52:09+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







Hi Mirko

I have created a scenario with 4 stop intersections and created 4 traffic flow routes (R1, R2, R3, R4).

In the simulation, all vehicles from r1 flow first. The other side vehicles are waiting for all vehicles to pass the vehicle from r1. it does not follow the 4-way stop rule, the first car to arrive at the intersection receives the right of way. It doesn’t matter where the vehicle is located or what direction it is traveling, this rule will always apply when someone has clearly arrived at the stop sign first.

Please let me know if I am doing anything wrong.



Thanks,

Pallavi








On Thu, Feb 1, 2024 at 3:20 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Hi Pallavi,



I just tested an intersection with 4 way stop rule and several vehicles and to me it looked fine. What happens on your side? Can you describe better what exactly is wrong?



Best regards

Mirko







-----Original-Nachricht-----

Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-02-01T08:21:54+0100

Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>

An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>







Thanks for your reply.
I have created scenario that works with 4 vehicles but when I increase the traffic flow it doesn't work. it does not work as per the 4 way stop intersection rule.can you tell me how to write rules for that.

Thanks and regards
Pallavi



On Wed, Jan 31, 2024 at 2:22 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:

Hi,



we have this type of traffic rules among our intersection types. You can select the intersection in netedit inspect mode and set the "type" attribute to "allway_stop".



Best regards

Mirko









-----Original-Nachricht-----

Betreff: [sumo-dev] 4 way stop intersection and traffic flow rule

Datum: 2024-01-31T07:59:02+0100

Von: "Pallavi zambare via sumo-dev" <sumo-dev@xxxxxxxxxxx>

An: "sumo-dev@xxxxxxxxxxx" <sumo-dev@xxxxxxxxxxx>







Hi.

 I am new with SUMO. I would like to simulate a non-signalised  4 way stop intersection .
how to write rules for traffic.

Help me in this regard!
Thanks.
