Re: [sumo-user] Problem with Elevation

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

see https://github.com/eclipse/sumo/issues/13318

A workaround is to build (or rebuild) the network with option --no-internal-links, though this has the side effect of using a less detailed intersection model (https://sumo.dlr.de/docs/Simulation/Intersections.html#internal_links)

splitting the network would not help.

Am Fr., 26. Mai 2023 um 10:30 Uhr schrieb Florian Schnepf <florian.schnepf97@xxxxxx>:

Hello Jakob,





I added elevation data to my net using Geotiff from NASA Earth Observation.

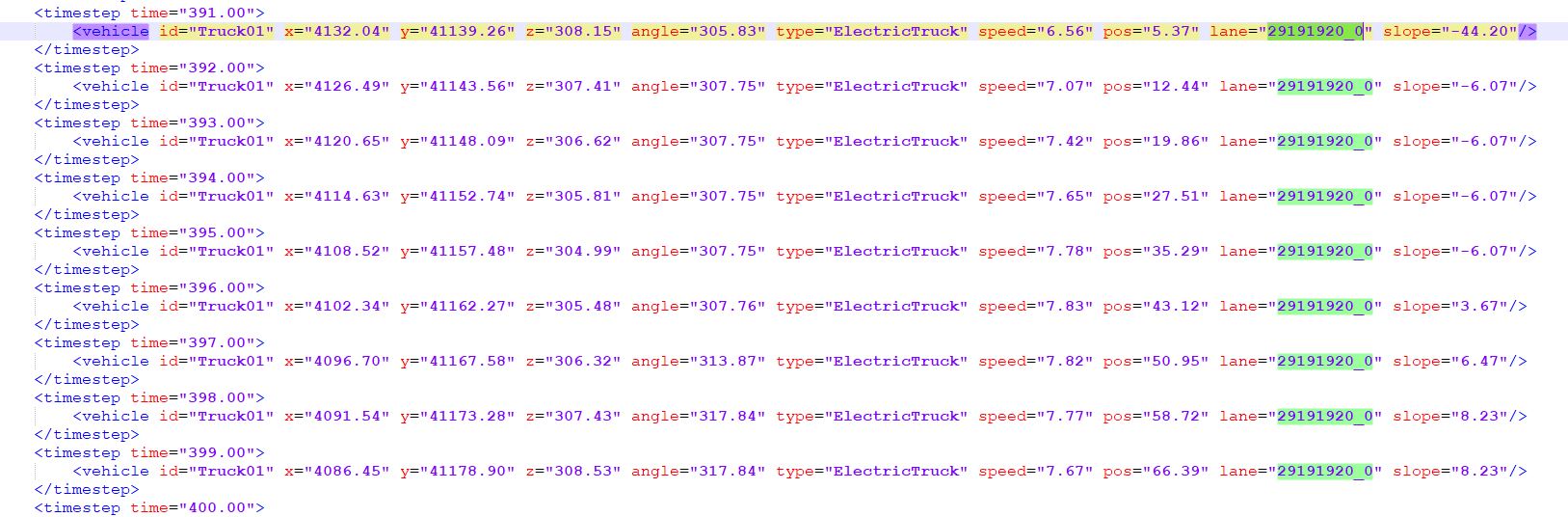

Now I get implausible values for the slope. For example this edge. If the edge would rise linear between the two junctions, the slope would be 2,09°. But in my output file the values jump from -44,2° to 8,2°



How is the z value for edges between two junctions computed? Would it be helpful to split the edges to get more junctions?



I atteched my network.





Thank you for your continuous support



Regards,

Florian
