Hello Jakob,





I added elevation data to my net using Geotiff from NASA Earth Observation.

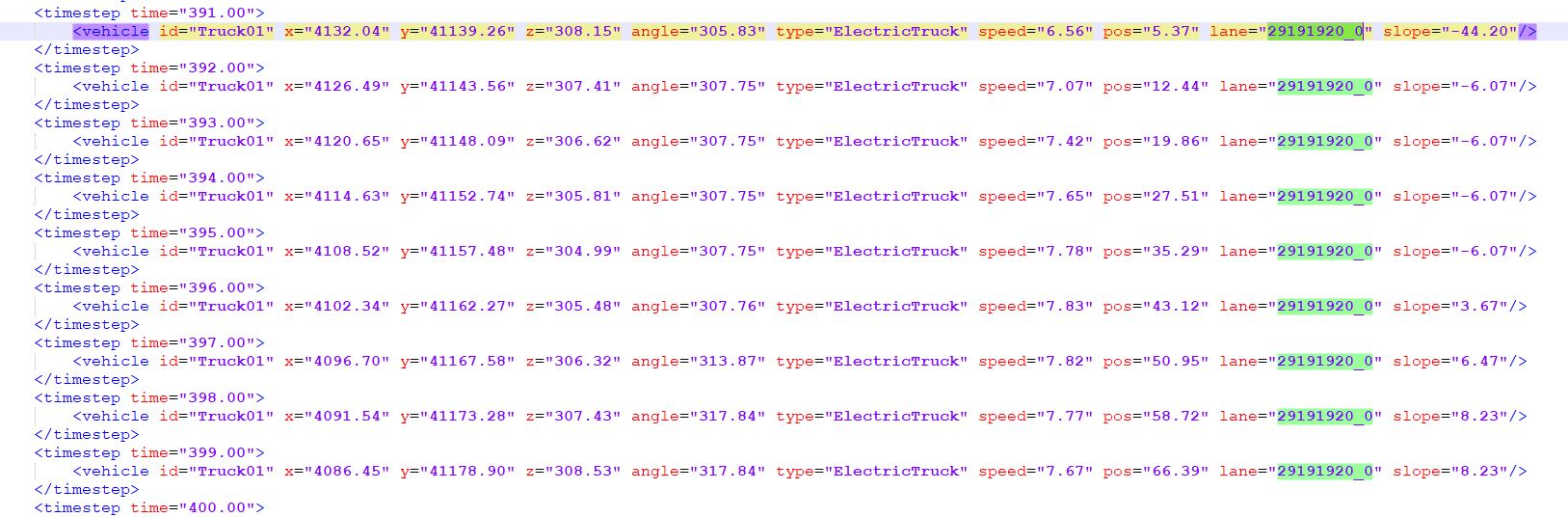

Now I get implausible values for the slope. For example this edge. If the edge would rise linear between the two junctions, the slope would be 2,09°. But in my output file the values jump from -44,2° to 8,2°



How is the z value for edges between two junctions computed? Would it be helpful to split the edges to get more junctions?



I atteched my network.





Thank you for your continuous support



Regards,

Florian
