Re: [sumo-user] How to impart yielding behaviors on Right Turns at Intersections and Removing Error in SUMO-Gui

The warnings are from actuated traffic lights (https://sumo.dlr.de/docs/Simulation/Traffic_Lights.html#detectors).
If you want right turns to be permissive in all phases, use junction type 'traffic_light_right_on_red'.
If you want static rather than actuated traffic lights, set tlType="static"  (this will also get rid of detector warnings).
If you do not want an intersection to be controlled by a traffic light, set its type to 'priority' and the warnings will disappear.
For controlling who has right of way, see https://sumo.dlr.de/docs/Networks/PlainXML.html#right-of-way



Am Mi., 29. Sept. 2021 um 17:56 Uhr schrieb vincentobiako <vincentobiako@xxxxxxxxx>:

Hello everyone

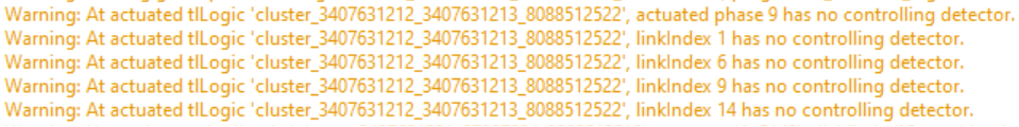

I was looking at some of my intersections in SUMO and I was wondering if there is a way to impart yielding behavior rather than a traffic signal for vehicles taking a right turn at a typical four-way intersection? I want the vehicles at the right turn of an approach to yield to vehicles that may be coming from the through or left turn movement of other intersections. I am currently using the ‘off-blinking’ signal at my intersections, but I keep getting error messages that look something like this:





I didn’t think that right turn movements needed controlling detectors if they are intending to be yield movements. Does anyone know what can be done to remove these errors?



For reference, I have attached my net-file to visualize the error. Please refer to cluster_3407631212_3407631213_8088512522 in the network.



Thank you in advance

Ifezue
