Re: [sumo-user] Issues with Road Geometry

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Hello,

the gray areas are so-called "walkingareas". They are enabled either by having pedestrian crossings in your network or if the network was ever built with option --walkingareas.

Walkingareas connect lanes that permit pedestrians. In a typical pedestrian simulation, only dedicated sidewalk lanes allow pedestrians and all other road lanes disallow them.

See https://sumo.dlr.de/docs/Simulation/Pedestrians.html#building_a_network_for_pedestrian_simulation

regards,

Jakob

Am Do., 2. Sept. 2021 um 16:06 Uhr schrieb vincentobiako <vincentobiako@xxxxxxxxx>:

Hello everyone

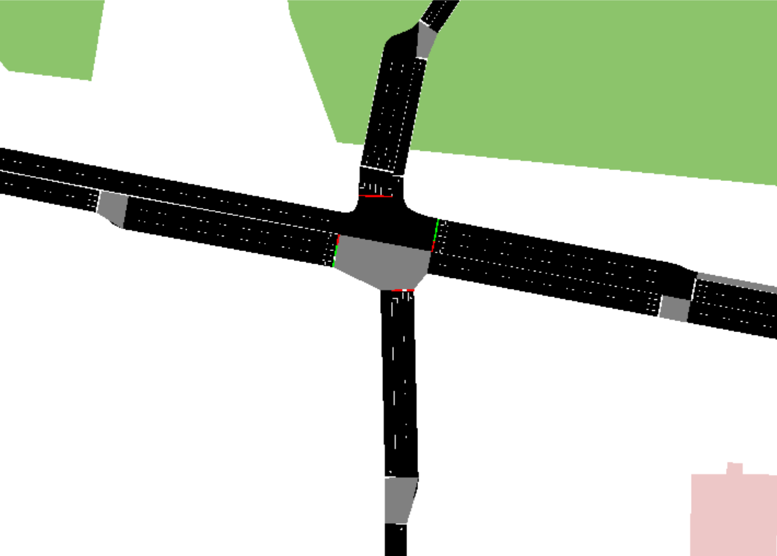

I just started using SUMO. I have run into an issue where I am trying to build the following intersection (i.e. see below), but for some reason I keep getting these grey areas at some of the junctions such as at the intersection or where the road geometry changes from a two-lane road to a three-lane road. I believe these grey areas are preventing the execution of routes in my network as well.



Does anybody know what is going on here in this instance?

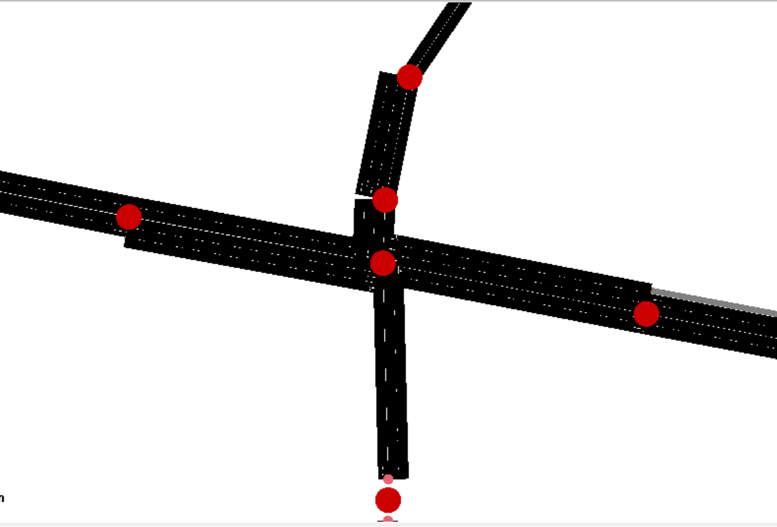

Here is the same image in NetEdit:



Thank you in advance

Ifezue
