| [sumo-user] Issues with jtrrouter |

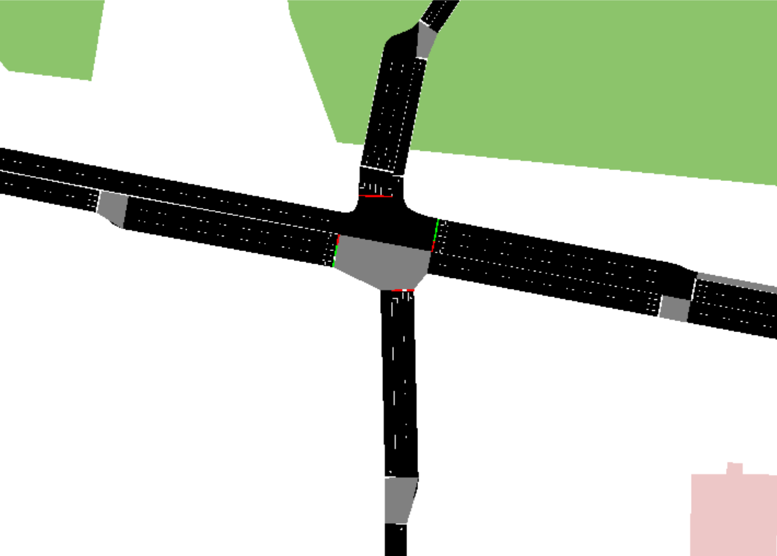

Hello Everyone I am working with turn probabilities in order to produce routes within my network and I am currently trying to test and see if a flow of vehicles can enter and move through the following intersection successfully. Please know that this is one in a chain of intersections and I am just trying to get the hang of working with jtrrouter by working on this one intersection for now.

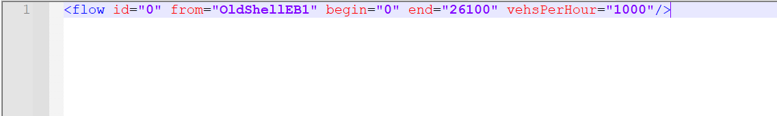

I was able to create flow definitions, a turn ratio file, and network file to generate a routing file for my vehicle in the flow file. Please the files below: Flow definition file:

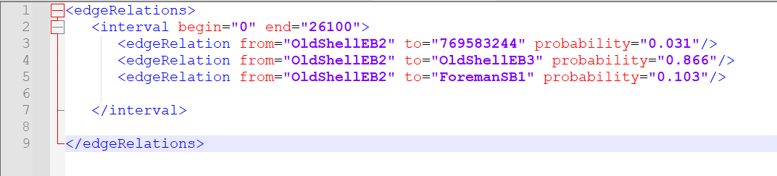

Here I followed the instructions for flow definition when the destination is not known within a vehicle’s route. Turn-Ratio File:

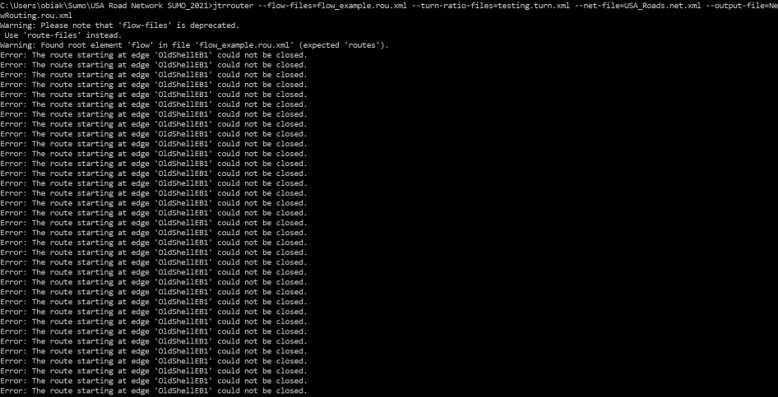

…and of course the net-file is extremely large because it was generated from the OSMWizard. Once aggregated and placed as inputs into jtrrouter to produce a rou.xml file, I got this error message and I am not really sure what is going on. I am not really sure what ‘flow-files’ is deprecated means. Do I need to put turn probabilities for all intersections in my network? Also what does “The route starting at edge ‘OldShellEB1’ could not be closed” means and how can I fix this problem?
Thank you in advance for the assistance Ifezue Sent from Mail for Windows |
