Re: [sumo-user] Invalid lane connections

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Take a look at the --no-turnaround options: https://sumo.dlr.de/docs/netconvert.html#junctions

In netedit you can select all junctions that have attribute 'dir' = t and delete them with <del>

Am Mi., 16. Juni 2021 um 11:40 Uhr schrieb Alejandro Rodríguez Sánchez <alrodr25@xxxxxx>:

Hello,

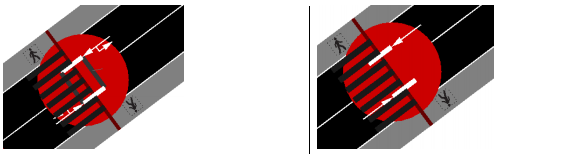

I've been noticing that when importing a network from OSM, there are some invalid connections in which a vehicle can turn 180 degrees at an intersection and return by the same edge it reached the intersection such in the left picture of this figure, while the correct connection would be the right one:

As my network is really large, I was wondering if there is some method to automatically detect and remove those 180-degree lane connections in my network.

Regards,

Alejandro.

--

Alejandro Rodríguez Sánchez

PhD student
CIEMAT // Universidad Complutense de Madrid
28040 Madrid
email: alrodr25@xxxxxx

Website: https://alexrsanchez.github.io/en/
