Re: [sumo-user] netedit - lane selection for neigh tag

[Richter Gerald <Gerald.Richter@xxxxxxxxx>]

Hi Jakob,

thank you for this swift response - again.

using your selection instructions I now can see

that most of the desired associations for opposite lanes have been found and implemented

by the netconvert opposite guess reprocessing.

however, some stretches - often parallel routes - have been left out and I wonder how to elegantly fix this.

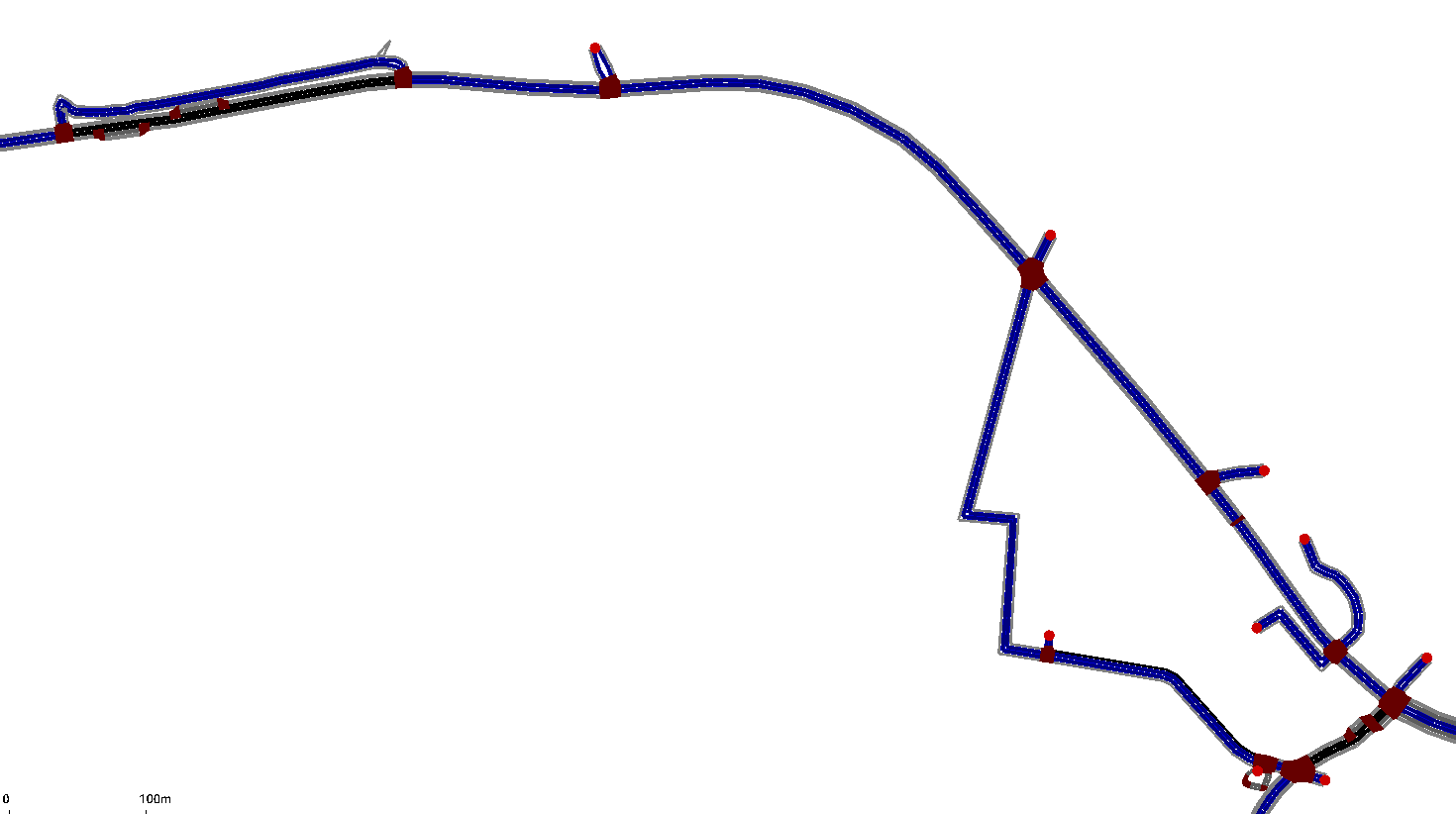

(see attachment - selected edges in blue are those where lanes have the opposite set)

1. can I pick lane ids and enforce a netconvert reprocessing on just those, or
2. would the best way be to
   1. define/select ids for stretches of edges along non-ambiguous routes and
   2. write a separate script using sumolib which
   3. would be following these stretches from junction-node to junction node and
   4. pick out the equivalent closest lane from the opposite direction stretch,
   5. set lengths to the average and
   6. associate by setting opposite="..."

please share your best guess

thanks,
Gerald

Von: sumo-user-bounces@xxxxxxxxxxx <sumo-user-bounces@xxxxxxxxxxx> im Auftrag von Jakob Erdmann <namdre.sumo@xxxxxxxxx>
Gesendet: Dienstag, 15. September 2020 15:33:31
An: Sumo project User discussions
Betreff: Re: [sumo-user] netedit - lane selection for neigh tag



Hi Gerald,

the latest nightly version of netedit supports lane attribute 'opposite' which you can edit and select for.

The easiest way to select all lanes with an opposite lane is to enter "_" (underscore) in the match-attribute input field.

regards,

Jakob

Am Mo., 14. Sept. 2020 um 09:47 Uhr schrieb Richter Gerald <Gerald.Richter@xxxxxxxxx>:

Hi.

Netedit 1.7.0.... recent git

to get an overview of the successful guesswork or necessary manual
corrections
regarding opposite lane overtaking

I tried to select for all lanes/edges that have the neigh element within
their lane definition

using edge selection mode
choosing: network elements, lane

which does not allow for a selection where neigh is present.

is there a way to do this?

thanks,
Gerald
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user

Attachment: Screenshot from 2020-09-16 13-00-56.png
Description: Screenshot from 2020-09-16 13-00-56.png
