Re: [sumo-user] Passenger cars driving over Trailer Trucks in SUMO GUI
In your network, that edge is defined with a length of 1550m whereas the geometrical distance is only 300m. In the simulation, the vehicles drive as if the road was 1550m long but when drawing the vehicles in sumo-gui, the positions are interpolated which causes overlap. You can safely ignore this (not a collision) or ensure that given lengths and geometrical lengths match (by setting edge length = -1 which causes netconvert/netedit to recompute the value).

regards,
Jakob

Am Mo., 21. Okt. 2019 um 04:16 Uhr schrieb Soumya Sharma <ssharm36@xxxxxxxx>:
Hello All,

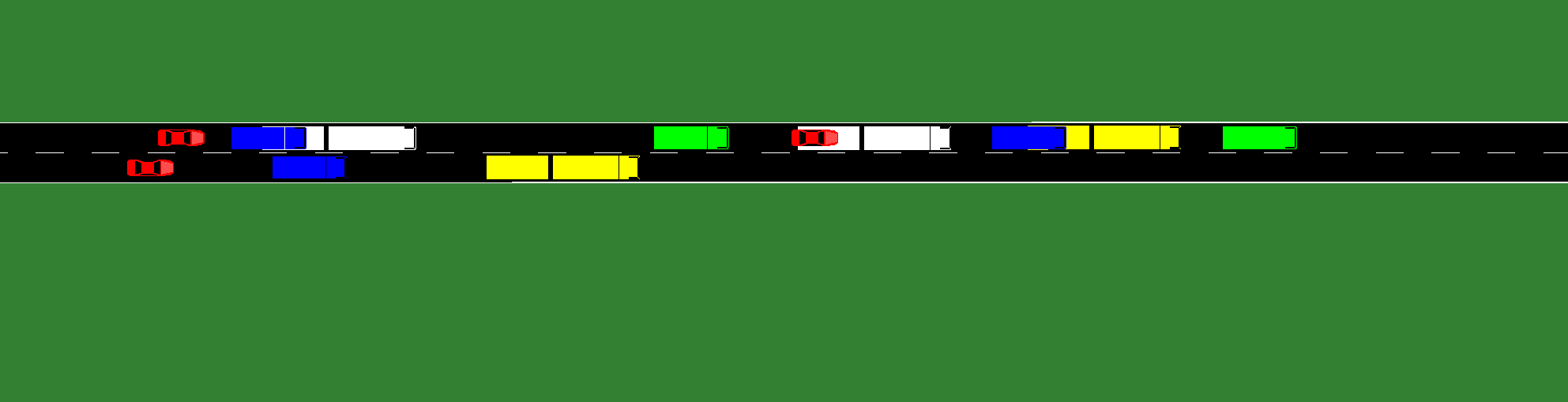

I am trying to simulate a traffic stream with cars, trucks, and semi-trailers. I have attached the flow file here for reference, I have tried to keep the trailer length at default and even tried setting it to a user-defined value (16m). I found that when I run a simple simulation, the passenger cars can be seen driving over/ through the semi-trailers as shown in a snapshot from the GUI below (semi is in white and passenger cars are in red).



Could anyone please tell me why this may be happening?

Many thanks in advance.

--
Thank you,
Soumya Sharma
Graduate Research Assistant | ITRE
Ph.D. Civil Engineering | Transportation Systems | NC State
AREMA Liaison | NC State Student Chapter
