[sumo-user] Passenger cars driving over Trailer Trucks in SUMO GUI
|
Hello All,

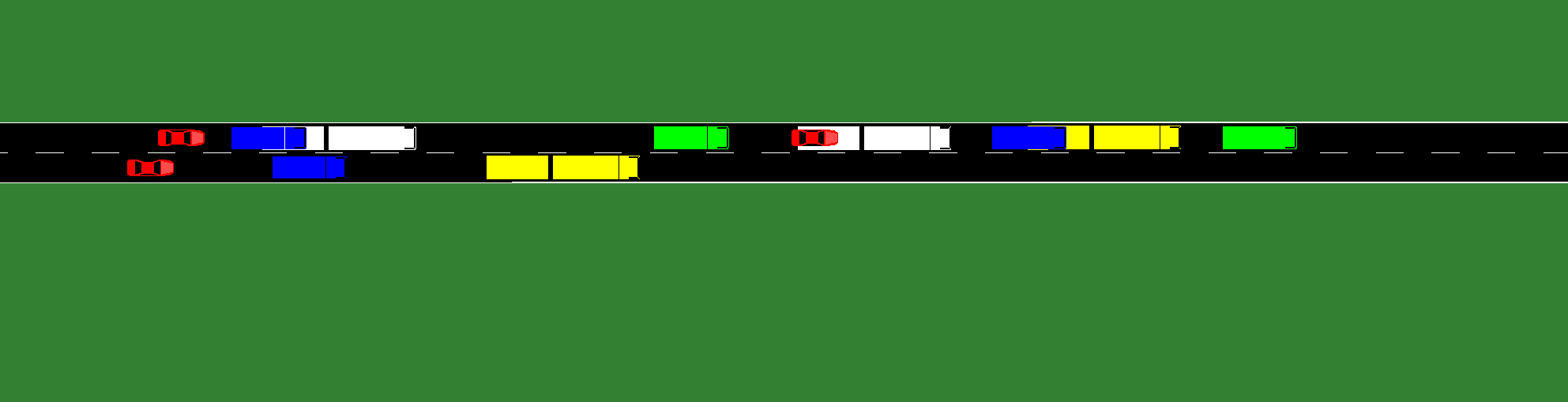

I am trying to simulate a traffic stream with cars, trucks, and semi-trailers. I have attached the flow file here for reference, I have tried to keep the trailer length at default and even tried setting it to a user-defined value (16m). I found that when I run a simple simulation, the passenger cars can be seen driving over/ through the semi-trailers as shown in a snapshot from the GUI below (semi is in white and passenger cars are in red).
Could anyone please tell me why this may be happening?
Many thanks in advance.
--
Thank you,Soumya Sharma
Graduate Research Assistant | ITRE
Ph.D. Civil Engineering | Transportation Systems | NC State
AREMA Liaison | NC State Student Chapter
