Namaste,

I have the following 2 doubts regarding the traci-api.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1. This is regarding the getLastStepVehicleNumber()

Link: https://sumo.dlr.de/pydoc/traci._edge.html#EdgeDomain-getLastStepVehicleNumber

Python: module traci._edge - sumo.dlr.de

class EdgeDomain(traci.domain.Domain): Methods defined here: __init__(self) adaptTraveltime(self, edgeID, time, begin=None, end=None) adaptTraveltime(string, double, double, double) -> None Adapt the travel time value (in s) used for (re-)routing for the given edge. When setting begin time and end time (in seconds), the changes only

sumo.dlr.de

Existing Api: getLastStepVehicleNumber(self, edgeID)

Input: edgeId

Output:  Number of vehicles in the given edgeID.

Requirement : getLastStepVehicleNumber(self,List<edgeID>)

Input: List<edgeID>

Output: List of number of vehicles in each edgeID

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Is there any support for the following requirement? (range querying of edgeID)

Requirement:  If I pass two points P and Q, which internally 2 positions obtained by getPosition(self, vehID), can I get a list of all edges present in the rectangle in which P and Q are two diagonal points? Does sumo support any such api?

Link: https://sumo.dlr.de/pydoc/traci._vehicle.html#VehicleDomain-getPosition

Python: module traci._vehicle - sumo.dlr.de

data and other attributes defined here: depart_container_triggered = -2 depart_lane_allowed_free = -4 depart_lane_best_free = -5 depart_lane_first_allowed = -6 depart_lane_free = -3 depart_lane_random = -2 depart_now = -3 depart_speed_max = -3 depart_speed_random = -2 depart_triggered = -1 last_travel_time_update = -1 stop_bus_stop = 8 stop_charging_station = 32 stop_container_stop = 16

sumo.dlr.de

Input: P, Q

Output: List of edgeID

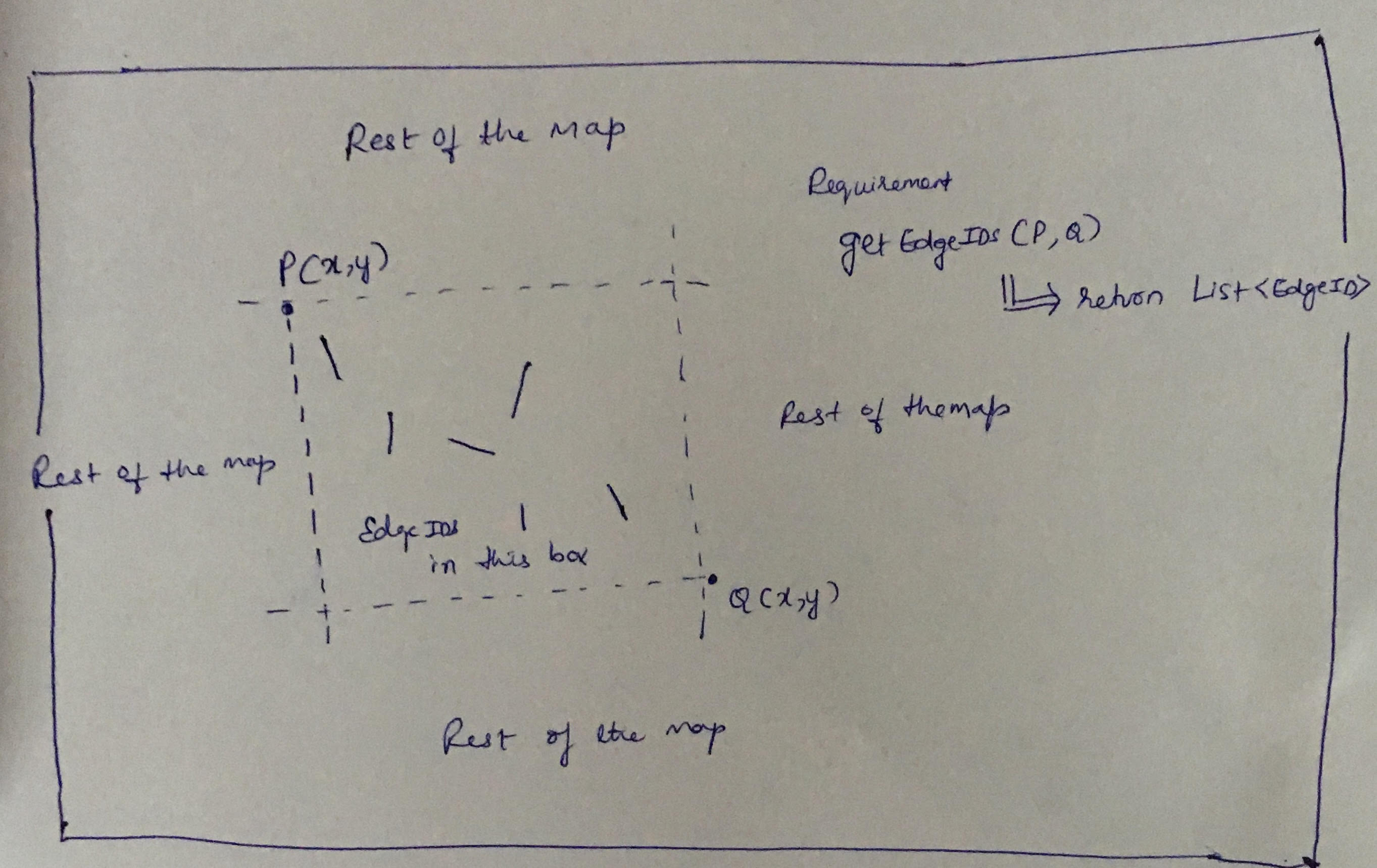

I have attached a figure to explain the requirement. (sumo_traci.jpg)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Regards,
Sheshadri K R

+91-9845213149

Attachment: sumo_traci.jpg
Description: sumo_traci.jpg
