Hi Michael, more questions. Appreciated in advance!
1) If the timeline describe the relationship wih the OD matrix;
how to understand the numbers in timeline ?
the timeline is
--timeline 0.9,0.5,0.2,0.2,0.5,1.3,7.0,9.3,6.7,4.2,4.0,3.8,4.1,4.6,5.0,6.7,9.6,9.2,7.1,4.8,3.5,2.7,2.2,1.9
2) I found a document that describe the OD using the different format;
How to understand the RED part

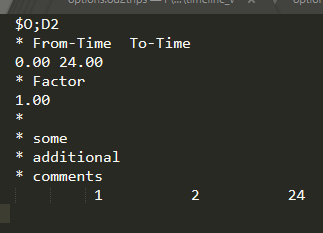

**************************************** input_od_v.fma***************************************
$VR;D2( another format of OD matrix description?)
* Von Bis
0.00 24.00
* Faktor
1.00
*
* Deutsches Zentrum fuer Luft- und Raumfahrt e.V.
* 06.02.08(?)
* Anzahl Bezirke
12(?)
*
0 1 2 3 4 5 6 7 8 9 10 11( 0-11hour?)
*
* Bez 0 Summe = 130.00(?)
0.00 5.00 5.00 10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00
* Bez 1 Summe = 130.00
5.00 0.00 5.00 10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00
* Bez 2 Summe = 130.00
5.00 5.00 0.00 10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00
* Bez 3 Summe = 130.00
10.00 10.00 10.00 0.00 5.00 5.00 10.00 10.00 10.00 20.00 20.00 20.00
* Bez 4 Summe = 130.00
10.00 10.00 10.00 5.00 0.00 5.00 10.00 10.00 10.00 20.00 20.00 20.00
* Bez 5 Summe = 130.00
10.00 10.00 10.00 5.00 5.00 0.00 10.00 10.00 10.00 20.00 20.00 20.00
* Bez 6 Summe = 130.00
20.00 20.00 20.00 10.00 10.00 10.00 0.00 5.00 5.00 10.00 10.00 10.00
* Bez 7 Summe = 130.00
20.00 20.00 20.00 10.00 10.00 10.00 5.00 0.00 5.00 10.00 10.00 10.00
* Bez 8 Summe = 130.00
20.00 20.00 20.00 10.00 10.00 10.00 5.00 5.00 0.00 10.00 10.00 10.00
* Bez 9 Summe = 130.00
10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00 0.00 5.00 5.00
* Bez 10 Summe = 130.00
10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00 5.00 0.00 5.00
* Bez 11 Summe = 130.00
10.00 10.00 10.00 20.00 20.00 20.00 10.00 10.00 10.00 5.00 5.00 0.00
Excuse me asked so more questions!
Best regads!
Jane
