Dear SUMO-users,



Last time I messaged, I had some issues regarding pedestrian crossings en bicycle paths. Thanks to your advices I managed to get a near real visualization of the controlled intersection. However I still see some strange things.

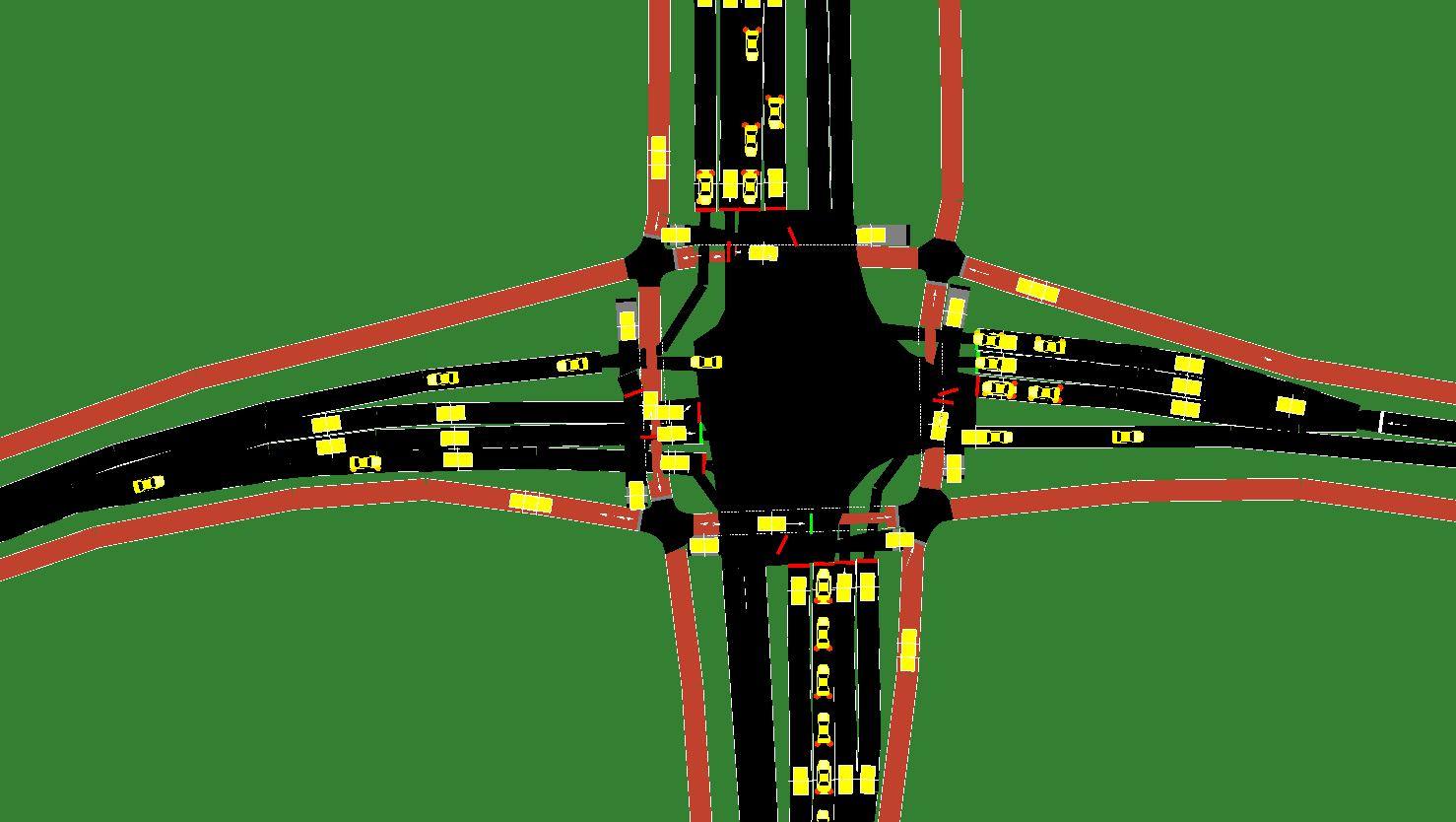

The stoplines on the left approach are drawn to for to the right, behind the (controlled) pedestrian crossing and bike lanes. This is also shown on the bicycle paths, so the cyclists on the intersection instead of in front of it. Why is this happening? Do I have to configure an extra option on netconvert?



The SUMO native files and the .net.xml are enclosed here. I call netconvert with the following options:

netconvert --node-files=Output/KR27.nod.xml --edge-files=Output/KR27.edg.xml --connection-files=Output/KR27.con.xml --type-files=Output/all.typ.xml --tllogic-files=Output/KR27.tll.xml --no-turnarounds=true --junctions.corner-detail=5 --output-file=Output/KR27.net.xml





Best Regards,

Martin Barto
