Re: [sumo-user] invalid pedestrian crossings

Dear Martin,
I am well aware of your problem. Regarding response times, please see http://sumo.dlr.de/wiki/FAQ#I_asked_a_question_on_the_mailing_list_and_did_not_get_an_answer_within_X_days._Why.3F

I took a closer look at your network and noted that the topology does not match requirements (there are junctions between the edges where pedestrians are supposed to walk and roads between them where crossings ought to be) Please find attached a network that shows the correct topology.

To obtain arbitrary coloring based on vehicle classes, sumo gui allows the edge coloring mode 'by permission code'. You can find the permission code by right-clicking on an edge and opening the parameter dialog (see attached gui settings file).

regards,
Jakob


2018-07-11 8:41 GMT+02:00 Barto, Martin <Martin.Barto@xxxxxxxxx>:

Dear Jacob,



I don’t know if you pay attention to my problem? The problem is that when I add sidewalks to the incoming edges of an intersection, the pedestrian crossings are valid, but the connections on the incoming edges are messed up. What is the solution for this? Or maybe someone else has dealt with this problem?



Best regards,

Martin Barto
Senior Verkeerskundige
Mobiliteit



Vialis is een Koninklijke VolkerWessels onderneming.

Postbus 184, 3990 DD Houten |
tel. +31648510557 mob. +31648510557

http://www.vialis.nl

http://www.linkedin.com/company/vialis

https://twitter.com/vialisbv

http://www.youtube.com/user/VialisBV


.
.

Van: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@eclipse.org] Namens Barto, Martin
Verzonden: maandag 9 juli 2018 23:03


Aan: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Onderwerp: Re: [sumo-user] invalid pedestrian crossings



Thank you for your answer Jacob,



I did the changes according to your advices. That worked fine. The warnings have disappeared. But this change has a nasty side-effect. All the connections with edges that have sidewalks seems to be messed up. This is also visible in Netedit:





How can I get the connections fixed according the .con.xml without changing manually in Netedit or in the .net.xml? My goal is to make a SUMO network automatically from an an existing standard intersection topology.



I included my files again.



Kind regards,

Martin Barto
Senior Verkeerskundige
Mobiliteit

cid:image002.jpg@01D417A7.BE77DA50           cid:image003.jpg@01D417A7.BE77DA50

Vialis is een Koninklijke VolkerWessels onderneming.

Postbus 184, 3990 DD Houten |
tel. +31648510557 mob. +31648510557

http://www.vialis.nl

http://www.linkedin.com/company/vialis

https://twitter.com/vialisbv

http://www.youtube.com/user/VialisBV


.
.

Van: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@eclipse.org] Namens Jakob Erdmann
Verzonden: zondag 8 juli 2018 23:41
Aan: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Onderwerp: Re: [sumo-user] invalid pedestrian crossings



Hello,

netconvert rejects crossings that do not have a sidewalk or another crossing on each side.

Invalid crossings are not written to the .net.xml files and therefore you cannot find them.

To better understand the problem, it helps if you load the input files directly into netedit (use the same command with netedit instead of netconvert).

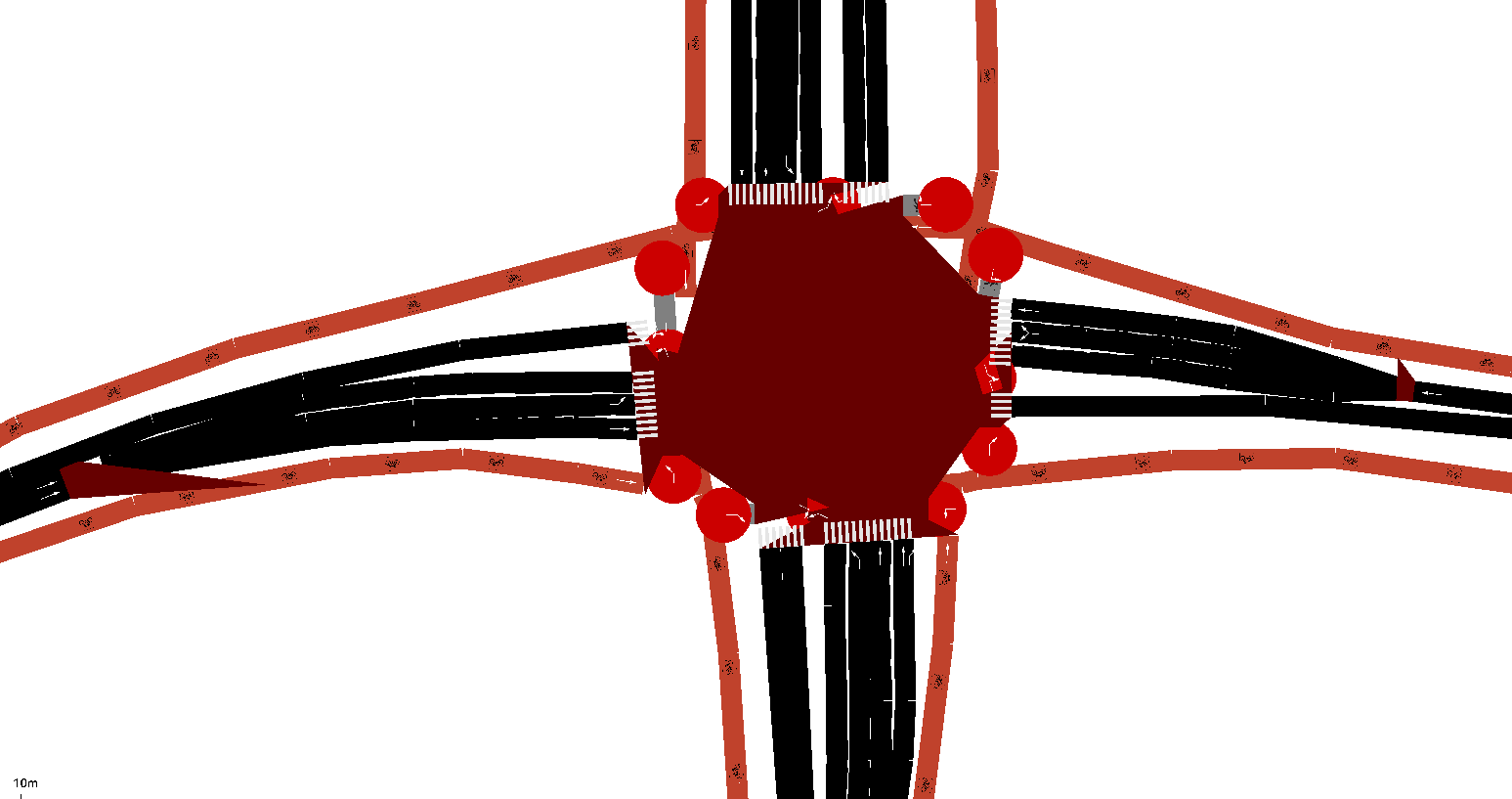

Netedit will color invalid crossings in red (requires pressing F5 once).

Also, the latest development version of netconvert and netedit give additional information in the warning message.



regards,

Jakob





2018-07-07 0:17 GMT+02:00 Barto, Martin <Martin.Barto@xxxxxxxxx>:

Dear SUMO-users,



I get warnings using netconvert that says:

Warning: Invalid pedestrian topology: crossing ‘:KR27_c3’ has no target.

Warning: Invalid pedestrian topology: crossing ‘:KR27_c5’ has no target.



In .net.xml the edges don’t exist.



The strange thing is that all the other pedestrian crossings are converted into .net.xml correctly. The input-files seems logical, so I don’t know what I’m doing wrong here.



Does anyone have suggestions?



I added all the files. The call is:

netconvert --node-files=Output/KR27.nod.xml --edge-files=Output/KR27.edg.xml --connection-files=Output/KR27.con.xml --type-files=Output/all.typ.xml --tllogic-files=Output/KR27.tll.xml --output-file=Output/KR27.net.xml



Met vriendelijke groet,

Martin Barto
Senior Verkeerskundige
Mobiliteit

cid:image002.jpg@01D417A7.BE77DA50           cid:image003.jpg@01D417A7.BE77DA50

Vialis is een Koninklijke VolkerWessels onderneming.

Postbus 184, 3990 DD Houten |
tel. +31648510557 mob. +31648510557

http://www.vialis.nl

http://www.linkedin.com/company/vialis

https://twitter.com/vialisbv

http://www.youtube.com/user/VialisBV


.
.


Look here for our e-mail disclaimer: http://cp.vialis.nl/disclaimer.html


_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user




Look here for our e-mail disclaimer: http://cp.vialis.nl/disclaimer.html


Look here for our e-mail disclaimer: http://cp.vialis.nl/disclaimer.html


_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user


<?xml version="1.0" encoding="UTF-8"?>

<!-- generated on Wed 11 Jul 2018 10:04:08 AM CEST by Eclipse SUMO netedit Version 5a9333f
<configuration xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/netconvertConfiguration.xsd";>

    <input>
        <sumo-net-file value="/scr2/debug/barto/old/patched.net.xml"/>
    </input>

    <output>
        <output-file value="/scr2/debug/barto/old/patched.net.xml"/>
        <output.street-names value="true"/>
    </output>

    <processing>
        <no-internal-links value="false"/>
        <no-turnarounds value="true"/>
        <offset.disable-normalization value="true"/>
        <lefthand value="false"/>
        <junctions.corner-detail value="5"/>
        <rectangular-lane-cut value="false"/>
        <walkingareas value="false"/>
    </processing>

    <visualisation>
        <registry-viewport value="true"/>
    </visualisation>

</configuration>
-->

<net version="0.27" junctionCornerDetail="5" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/net_file.xsd";>

    <location netOffset="0.00,0.00" convBoundary="-1.09,0.00,718.05,935.44" origBoundary="0.00,0.00,726.58,935.44" projParameter="!"/>

    <type id="allVehicles" oneway="1"/>
    <type id="bicycle" allow="moped bicycle"/>
    <type id="bus" allow="bus" oneway="1"/>
    <type id="pedestrian" allow="pedestrian"/>
    <type id="tram" allow="tram" oneway="1"/>
    <type id="vehicle" disallow="moped bicycle pedestrian" oneway="1"/>

    <edge id=":1_i_0_0" function="internal">
        <lane id=":1_i_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="571.01,470.45 571.01,470.45"/>
        <lane id=":1_i_0_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="571.01,470.45 571.01,470.45"/>
        <lane id=":1_i_0_0_2" index="2" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="571.01,470.45 571.01,470.45"/>
    </edge>
    <edge id=":2_c_2_0" function="internal">
        <lane id=":2_c_2_0_0" index="0" allow="bicycle" speed="4.16" length="6.21" width="3.00" shape="512.23,449.16 512.29,451.02 512.88,452.29 513.99,452.97 515.63,453.07"/>
    </edge>
    <edge id=":2_c_2_1" function="internal">
        <lane id=":2_c_2_1_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.58" width="3.00" shape="512.23,449.16 512.27,451.11 512.59,452.47 512.76,453.80 512.39,455.65"/>
    </edge>
    <edge id=":2_c_2_2" function="internal">
        <lane id=":2_c_2_2_0" index="0" allow="bicycle" speed="4.16" length="6.71" width="3.00" shape="509.06,451.98 511.03,452.23 512.35,452.68 513.68,453.05 515.63,453.07"/>
    </edge>
    <edge id=":2_c_2_3" function="internal">
        <lane id=":2_c_2_3_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.13" width="3.00" shape="509.06,451.98 510.97,452.25 512.16,452.95 512.64,454.08 512.39,455.65"/>
    </edge>
    <edge id=":2_c_2_w0" function="walkingarea">
        <lane id=":2_c_2_w0_0" index="0" allow="pedestrian" speed="1.00" length="4.96" width="3.00" shape="509.09,450.48 509.03,453.48 510.97,455.17 513.81,456.14 514.08,454.57 512.72,454.20 511.71,453.46 511.04,452.35 510.71,450.87"/>
    </edge>
    <edge id=":2_e_0_0" function="internal">
        <lane id=":2_e_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="484.49,376.49 484.49,376.49"/>
    </edge>
    <edge id=":2_i_0_0" function="internal">
        <lane id=":2_i_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="494.77,398.71 494.77,398.71"/>
        <lane id=":2_i_0_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="494.77,398.71 494.77,398.71"/>
        <lane id=":2_i_0_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="494.77,398.71 494.77,398.71"/>
        <lane id=":2_i_0_0_3" index="3" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="494.77,398.71 494.77,398.71"/>
    </edge>
    <edge id=":2_i_1_0" function="internal">
        <lane id=":2_i_1_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="489.11,379.14 489.11,379.14"/>
        <lane id=":2_i_1_0_1" index="1" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="489.11,379.14 489.11,379.14"/>
        <lane id=":2_i_1_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="489.11,379.14 489.11,379.14"/>
    </edge>
    <edge id=":2_i_2_0" function="internal">
        <lane id=":2_i_2_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="489.89,359.19 489.89,359.19"/>
        <lane id=":2_i_2_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="489.89,359.19 489.89,359.19"/>
    </edge>
    <edge id=":3_c_1_0" function="internal">
        <lane id=":3_c_1_0_0" index="0" allow="bicycle" speed="4.16" length="5.24" width="3.00" shape="459.98,450.56 461.31,450.69 462.39,450.29 463.20,449.38 463.74,447.94"/>
    </edge>
    <edge id=":3_c_1_1" function="internal">
        <lane id=":3_c_1_1_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.50" width="3.00" shape="459.98,450.56 461.85,451.03 463.15,451.24 464.48,451.27 466.41,451.19"/>
    </edge>
    <edge id=":3_c_1_2" function="internal">
        <lane id=":3_c_1_2_0" index="0" allow="bicycle" speed="4.16" length="6.35" width="3.00" shape="462.46,454.16 463.74,447.94"/>
    </edge>
    <edge id=":3_c_1_3" function="internal">
        <lane id=":3_c_1_3_0" index="0" allow="bicycle pedestrian" speed="4.16" length="1.55" width="3.00" shape="462.46,454.16 462.87,452.92 463.03,452.74"/>
    </edge>
    <edge id=":3_c_1_4" function="internal">
        <lane id=":3_c_1_4_0" index="0" speed="4.16" length="3.86" width="3.00" shape="463.03,452.74 463.67,452.01 464.85,451.43 466.41,451.19"/>
    </edge>
    <edge id=":3_c_1_w0" function="walkingarea">
        <lane id=":3_c_1_w0_0" index="0" allow="pedestrian" speed="1.00" length="4.94" width="3.00" shape="460.98,453.92 463.94,454.40 466.47,452.69 466.34,449.69 464.71,449.76 464.04,450.88 463.20,451.67 462.18,452.12 460.97,452.23"/>
    </edge>
    <edge id=":3_i_0_0" function="internal">
        <lane id=":3_i_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="385.12,458.84 385.12,458.84"/>
        <lane id=":3_i_0_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="385.12,458.84 385.12,458.84"/>
        <lane id=":3_i_0_0_2" index="2" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="385.12,458.84 385.12,458.84"/>
    </edge>
    <edge id=":3_i_1_0" function="internal">
        <lane id=":3_i_1_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="361.39,449.66 361.39,449.66"/>
        <lane id=":3_i_1_0_1" index="1" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="361.39,449.66 361.39,449.66"/>
    </edge>
    <edge id=":4_c_1_0" function="internal">
        <lane id=":4_c_1_0_0" index="0" allow="bicycle" speed="4.16" length="6.32" width="3.00" shape="463.71,497.52 461.83,497.56 460.55,497.53 459.27,497.38 457.43,497.06"/>
    </edge>
    <edge id=":4_c_1_1" function="internal">
        <lane id=":4_c_1_1_0" index="0" allow="bicycle pedestrian" speed="4.16" length="1.76" width="3.00" shape="463.71,497.52 462.31,497.36 462.01,497.17"/>
    </edge>
    <edge id=":4_c_1_4" function="internal">
        <lane id=":4_c_1_4_0" index="0" speed="4.16" length="3.25" width="3.00" shape="462.01,497.17 461.37,496.78 460.89,495.80 460.85,494.40"/>
    </edge>
    <edge id=":4_c_1_2" function="internal">
        <lane id=":4_c_1_2_0" index="0" allow="bicycle" speed="4.16" length="4.91" width="3.00" shape="459.82,500.59 459.92,499.25 459.55,498.22 458.72,497.49 457.43,497.06"/>
    </edge>
    <edge id=":4_c_1_3" function="internal">
        <lane id=":4_c_1_3_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.29" width="3.00" shape="459.82,500.59 460.21,498.77 460.45,497.51 460.63,496.25 460.85,494.40"/>
    </edge>
    <edge id=":4_c_1_w0" function="walkingarea">
        <lane id=":4_c_1_w0_0" index="0" allow="pedestrian" speed="1.00" length="4.23" width="3.00" shape="463.75,499.02 463.66,496.02 462.34,494.57 459.36,494.22 459.06,495.96 460.12,496.54 460.88,497.33 461.32,498.32 461.46,499.51"/>
    </edge>
    <edge id=":4_c_2_0" function="internal">
        <lane id=":4_c_2_0_0" index="0" allow="bicycle" speed="4.16" length="4.96" width="3.00" shape="514.59,499.96 513.26,500.36 512.35,501.06 511.89,502.07 511.87,503.38"/>
    </edge>
    <edge id=":4_c_2_1" function="internal">
        <lane id=":4_c_2_1_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.60" width="3.00" shape="514.59,499.96 512.66,500.23 511.31,500.27 509.98,500.08 508.07,499.65"/>
    </edge>
    <edge id=":4_c_2_2" function="internal">
        <lane id=":4_c_2_2_0" index="0" allow="bicycle" speed="4.16" length="6.47" width="3.00" shape="511.28,496.94 511.87,503.38"/>
    </edge>
    <edge id=":4_c_2_3" function="internal">
        <lane id=":4_c_2_3_0" index="0" allow="bicycle pedestrian" speed="4.16" length="5.18" width="3.00" shape="511.28,496.94 511.16,498.42 510.58,499.37 509.55,499.78 508.07,499.65"/>
    </edge>
    <edge id=":4_c_2_w0" function="walkingarea">
        <lane id=":4_c_2_w0_0" index="0" allow="pedestrian" speed="1.00" length="4.20" width="3.00" shape="512.78,496.86 509.78,497.03 508.41,498.19 507.73,501.11 510.33,502.21 510.57,501.06 511.09,500.10 511.89,499.36 512.99,498.82"/>
    </edge>
    <edge id=":4_e_0_0" function="internal">
        <lane id=":4_e_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="492.52,582.43 492.52,582.43"/>
    </edge>
    <edge id=":4_i_0_0" function="internal">
        <lane id=":4_i_0_0_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="479.03,558.60 479.03,558.60"/>
        <lane id=":4_i_0_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="479.03,558.60 479.03,558.60"/>
        <lane id=":4_i_0_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="479.03,558.60 479.03,558.60"/>
        <lane id=":4_i_0_0_3" index="3" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="479.03,558.60 479.03,558.60"/>
    </edge>
    <edge id=":4_i_1_0" function="internal">
        <lane id=":4_i_1_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="484.51,588.32 484.51,588.32"/>
        <lane id=":4_i_1_0_1" index="1" disallow="moped bicycle pedestrian" speed="11.80" length="0.10" width="3.00" shape="484.51,588.32 484.51,588.32"/>
        <lane id=":4_i_1_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="484.51,588.32 484.51,588.32"/>
    </edge>
    <edge id=":4_i_2_0" function="internal">
        <lane id=":4_i_2_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="483.16,606.07 483.16,606.07"/>
        <lane id=":4_i_2_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="0.10" width="3.00" shape="483.16,606.07 483.16,606.07"/>
    </edge>
    <edge id=":KR27_0" function="internal">
        <lane id=":KR27_0_0" index="0" allow="bicycle pedestrian" speed="4.16" length="25.73" width="3.00" shape="498.40,497.40 493.03,496.89 485.60,496.86 478.14,497.07 472.70,497.27"/>
    </edge>
    <edge id=":KR27_1" function="internal">
        <lane id=":KR27_1_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="36.45" width="3.00" shape="516.70,476.86 505.58,479.06 497.72,484.09 493.14,491.94 492.33,498.58"/>
    </edge>
    <edge id=":KR27_2" function="internal">
        <lane id=":KR27_2_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="17.76" width="3.00" shape="516.80,473.84 502.01,474.72 499.07,474.88"/>
    </edge>
    <edge id=":KR27_3" function="internal">
        <lane id=":KR27_3_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="36.41" width="3.00" shape="516.90,470.83 507.72,469.04 497.27,463.74 488.72,456.45 487.03,452.71"/>
    </edge>
    <edge id=":KR27_4" function="internal">
        <lane id=":KR27_4_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="5.45" width="3.00" shape="516.90,470.83 515.53,469.85 515.10,468.91 515.59,467.99 517.02,467.10"/>
    </edge>
    <edge id=":KR27_20" function="internal">
        <lane id=":KR27_20_0" index="0" speed="11.80" length="4.06" width="3.00" shape="492.33,498.58 491.83,502.61"/>
    </edge>
    <edge id=":KR27_21" function="internal">
        <lane id=":KR27_21_0" index="0" speed="13.88" length="41.04" width="3.00" shape="499.07,474.88 483.70,475.70 467.25,476.45 458.08,476.63"/>
    </edge>
    <edge id=":KR27_22" function="internal">
        <lane id=":KR27_22_0" index="0" speed="11.80" length="4.41" width="3.00" shape="487.03,452.71 485.21,448.68"/>
    </edge>
    <edge id=":KR27_5" function="internal">
        <lane id=":KR27_5_0" index="0" allow="bicycle pedestrian" speed="4.16" length="21.29" width="3.00" shape="509.61,463.85 509.05,468.46 509.40,474.34 510.11,480.28 510.61,485.03"/>
    </edge>
    <edge id=":KR27_6" function="internal">
        <lane id=":KR27_6_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="26.95" width="3.00" shape="497.66,449.14 498.64,457.64 502.19,463.47 508.31,466.63 512.99,466.88"/>
    </edge>
    <edge id=":KR27_7" function="internal">
        <lane id=":KR27_7_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="53.70" width="3.00" shape="494.66,449.03 491.83,502.61"/>
        <lane id=":KR27_7_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="53.70" width="3.00" shape="491.67,448.92 488.83,502.58"/>
    </edge>
    <edge id=":KR27_9" function="internal">
        <lane id=":KR27_9_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="37.71" width="3.00" shape="488.67,448.81 485.16,457.46 476.99,466.70 467.02,473.94 463.45,475.02"/>
    </edge>
    <edge id=":KR27_23" function="internal">
        <lane id=":KR27_23_0" index="0" speed="11.80" length="4.04" width="3.00" shape="512.99,466.88 517.02,467.10"/>
    </edge>
    <edge id=":KR27_24" function="internal">
        <lane id=":KR27_24_0" index="0" speed="11.80" length="5.62" width="3.00" shape="463.45,475.02 458.08,476.63"/>
    </edge>
    <edge id=":KR27_10" function="internal">
        <lane id=":KR27_10_0" index="0" allow="bicycle pedestrian" speed="4.16" length="23.71" width="3.00" shape="479.31,450.64 484.41,450.72 491.15,451.12 497.88,451.58 502.98,451.85"/>
    </edge>
    <edge id=":KR27_11" function="internal">
        <lane id=":KR27_11_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="28.45" width="3.00" shape="457.84,464.62 468.44,463.35 476.04,460.25 480.63,455.33 481.28,452.57"/>
    </edge>
    <edge id=":KR27_12" function="internal">
        <lane id=":KR27_12_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="55.11" width="3.00" shape="457.90,467.62 513.01,467.14"/>
    </edge>
    <edge id=":KR27_13" function="internal">
        <lane id=":KR27_13_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="43.37" width="3.00" shape="457.96,470.62 471.13,472.28 480.66,478.17 486.57,488.27 487.69,495.37"/>
    </edge>
    <edge id=":KR27_14" function="internal">
        <lane id=":KR27_14_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="6.01" width="3.00" shape="457.96,470.62 458.08,476.63"/>
    </edge>
    <edge id=":KR27_25" function="internal">
        <lane id=":KR27_25_0" index="0" speed="11.80" length="4.11" width="3.00" shape="481.28,452.57 482.21,448.57"/>
    </edge>
    <edge id=":KR27_26" function="internal">
        <lane id=":KR27_26_0" index="0" speed="13.88" length="4.01" width="3.00" shape="513.01,467.14 517.02,467.10"/>
    </edge>
    <edge id=":KR27_27" function="internal">
        <lane id=":KR27_27_0" index="0" speed="11.80" length="7.30" width="3.00" shape="487.69,495.37 488.83,502.58"/>
    </edge>
    <edge id=":KR27_15" function="internal">
        <lane id=":KR27_15_0" index="0" allow="bicycle pedestrian" speed="4.16" length="20.84" width="3.00" shape="462.26,482.57 462.23,477.92 461.67,472.17 461.14,466.42 461.23,461.79"/>
    </edge>
    <edge id=":KR27_16" function="internal">
        <lane id=":KR27_16_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="31.85" width="3.00" shape="475.46,502.44 474.53,491.55 471.32,483.62 465.84,478.65 461.03,477.40"/>
    </edge>
    <edge id=":KR27_17" function="internal">
        <lane id=":KR27_17_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="53.99" width="3.00" shape="478.46,502.47 482.21,448.57"/>
        <lane id=":KR27_17_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="53.99" width="3.00" shape="481.46,502.50 485.21,448.68"/>
    </edge>
    <edge id=":KR27_19" function="internal">
        <lane id=":KR27_19_0" index="0" disallow="moped bicycle pedestrian" speed="11.80" length="49.68" width="3.00" shape="484.46,502.54 486.70,488.07 492.87,477.34 502.98,470.35 513.08,468.01"/>
    </edge>
    <edge id=":KR27_28" function="internal">
        <lane id=":KR27_28_0" index="0" speed="11.80" length="3.06" width="3.00" shape="461.03,477.40 458.08,476.63"/>
    </edge>
    <edge id=":KR27_29" function="internal">
        <lane id=":KR27_29_0" index="0" speed="11.80" length="4.04" width="3.00" shape="513.08,468.01 517.02,467.10"/>
    </edge>
    <edge id=":KR27_c0" function="crossing" crossingEdges="4_e_0">
        <lane id=":KR27_c0_0" index="0" allow="pedestrian" speed="1.00" length="6.00" width="4.00" shape="493.28,500.57 487.28,500.62"/>
    </edge>
    <edge id=":KR27_c1" function="crossing" crossingEdges="1_i_0">
        <lane id=":KR27_c1_0" index="0" allow="pedestrian" speed="1.00" length="9.02" width="4.00" shape="514.81,469.46 514.80,478.48"/>
    </edge>
    <edge id=":KR27_c2" function="crossing" crossingEdges="1_e_0">
        <lane id=":KR27_c2_0" index="0" allow="pedestrian" speed="1.00" length="3.00" width="4.00" shape="514.90,465.78 515.16,468.77"/>
    </edge>
    <edge id=":KR27_c3" function="crossing" crossingEdges="2_i_0">
        <lane id=":KR27_c3_0" index="0" allow="pedestrian" speed="1.00" length="12.00" width="4.00" shape="487.10,450.76 499.10,451.19"/>
    </edge>
    <edge id=":KR27_c4" function="crossing" crossingEdges="2_e_0">
        <lane id=":KR27_c4_0" index="0" allow="pedestrian" speed="1.00" length="6.00" width="4.00" shape="480.69,450.56 486.69,450.70"/>
    </edge>
    <edge id=":KR27_c5" function="crossing" crossingEdges="3_i_0">
        <lane id=":KR27_c5_0" index="0" allow="pedestrian" speed="1.00" length="9.00" width="3.00" shape="459.50,472.08 459.29,463.08"/>
    </edge>
    <edge id=":KR27_c6" function="crossing" crossingEdges="3_e_0">
        <lane id=":KR27_c6_0" index="0" allow="pedestrian" speed="1.00" length="3.00" width="3.00" shape="459.48,478.22 459.66,475.22"/>
    </edge>
    <edge id=":KR27_c7" function="crossing" crossingEdges="4_i_0">
        <lane id=":KR27_c7_0" index="0" allow="pedestrian" speed="1.00" length="12.00" width="4.00" shape="486.00,500.56 474.00,500.42"/>
    </edge>
    <edge id=":KR27_w0" function="walkingarea">
        <lane id=":KR27_w0_0" index="0" allow="pedestrian" speed="1.00" length="18.39" width="4.00" shape="493.30,502.57 498.06,498.87 498.74,495.94 509.11,485.11 512.11,484.94 516.80,478.48 509.46,479.44 503.49,481.71 498.89,485.16 495.66,489.79 493.81,495.59"/>
    </edge>
    <edge id=":KR27_w1" function="walkingarea">
        <lane id=":KR27_w1_0" index="0" allow="pedestrian" speed="1.00" length="13.26" width="4.00" shape="516.89,465.61 511.03,464.33 508.19,463.37 502.95,453.35 503.02,450.35 499.17,449.19 499.49,454.64 500.88,459.01 503.31,462.29 506.79,464.48 511.31,465.59"/>
    </edge>
    <edge id=":KR27_w2" function="walkingarea">
        <lane id=":KR27_w2_0" index="0" allow="pedestrian" speed="1.00" length="15.97" width="4.00" shape="480.74,448.56 479.24,449.14 479.37,452.14 462.71,462.03 459.75,461.55 457.79,463.11 464.76,462.53 470.46,461.20 474.91,459.14 478.10,456.35 480.04,452.82"/>
    </edge>
    <edge id=":KR27_w3" function="walkingarea">
        <lane id=":KR27_w3_0" index="0" allow="pedestrian" speed="1.00" length="16.28" width="4.00" shape="457.99,478.13 460.77,482.39 463.75,482.75 472.66,495.77 472.74,498.77 473.97,502.42 473.63,495.27 472.36,489.36 470.16,484.70 467.03,481.27 462.97,479.08"/>
    </edge>
    <edge id=":KR27_w4" function="walkingarea">
        <lane id=":KR27_w4_0" index="0" allow="pedestrian" speed="1.00" length="1.28" width="4.00" shape="487.26,498.62 487.29,502.62 485.97,502.56 486.02,498.56"/>
    </edge>
    <edge id=":KR27_w5" function="walkingarea">
        <lane id=":KR27_w5_0" index="0" allow="pedestrian" speed="1.00" length="0.77" width="4.00" shape="513.16,468.94 517.15,468.60 516.81,469.46 512.81,469.46"/>
    </edge>
    <edge id=":KR27_w6" function="walkingarea">
        <lane id=":KR27_w6_0" index="0" allow="pedestrian" speed="1.00" length="0.42" width="4.00" shape="486.64,452.70 486.74,448.70 487.18,448.76 487.03,452.76"/>
    </edge>
    <edge id=":KR27_w7" function="walkingarea">
        <lane id=":KR27_w7_0" index="0" allow="pedestrian" speed="1.00" length="3.15" width="3.00" shape="461.16,475.32 458.17,475.13 458.00,472.11 461.00,472.04"/>
    </edge>

    <edge id="1_e_0" from="KR27" to="1_e_0" name="Ravenweg" priority="4" type="vehicle" spreadType="center" length="148.46" shape="486.33,469.75 661.88,454.62">
        <lane id="1_e_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="148.46" width="3.00" shape="517.02,467.10 661.88,454.62"/>
    </edge>
    <edge id="1_i_0" from="1_i_0" to="KR27" name="Ravenweg" priority="3" type="vehicle" spreadType="center" length="56.98" shape="571.01,470.45 486.51,475.74">
        <lane id="1_i_0_0" index="0" disallow="moped bicycle pedestrian" speed="9.72" length="56.98" width="3.00" shape="567.31,473.69 516.70,476.86"/>
        <lane id="1_i_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="56.98" width="3.00" shape="567.12,470.69 516.80,473.84"/>
        <lane id="1_i_0_2" index="2" disallow="moped bicycle pedestrian" speed="9.72" length="56.98" width="3.00" shape="566.94,467.70 516.90,470.83"/>
    </edge>
    <edge id="1_i_1" from="1_i_1" to="1_i_0" name="Ravenweg" priority="2" type="vehicle" spreadType="center" length="148.37" shape="718.05,450.65 696.29,454.38 571.01,470.45">
        <lane id="1_i_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="148.37" width="3.00" shape="718.05,450.65 696.29,454.38 574.87,469.95"/>
    </edge>
    <edge id="2_e_0" from="KR27" to="2_e_0" name="Arnhemseweg (zuid)" priority="4" type="vehicle" spreadType="center" length="72.94" shape="483.47,471.30 484.49,376.49">
        <lane id="2_e_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="72.94" width="3.00" shape="482.21,448.57 482.95,380.47"/>
        <lane id="2_e_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="72.94" width="3.00" shape="485.21,448.68 485.95,380.51"/>
    </edge>
    <edge id="2_e_1" from="2_e_0" to="2_e_1" name="Arnhemseweg (zuid)" priority="2" type="vehicle" spreadType="center" length="376.60" shape="484.49,376.49 484.72,334.97 484.88,287.67 484.78,284.75 486.59,177.51 486.05,104.57 485.05,93.62 485.05,88.86 486.23,67.92 487.59,0.00">
        <lane id="2_e_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="376.60" width="3.00" shape="484.51,372.49 484.72,334.97 484.88,287.67 484.78,284.75 486.59,177.51 486.05,104.57 485.05,93.62 485.05,88.86 486.23,67.92 487.59,0.00"/>
    </edge>
    <edge id="2_i_0" from="2_i_0" to="KR27" name="Arnhemseweg (zuid)" priority="3" type="vehicle" spreadType="center" length="50.77" shape="494.77,398.71 492.43,471.92">
        <lane id="2_i_0_0" index="0" disallow="moped bicycle pedestrian" speed="9.72" length="50.77" width="3.00" shape="499.27,398.85 497.66,449.14"/>
        <lane id="2_i_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="50.77" width="3.00" shape="496.27,398.76 494.66,449.03"/>
        <lane id="2_i_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="50.77" width="3.00" shape="493.27,398.66 491.67,448.92"/>
        <lane id="2_i_0_3" index="3" disallow="moped bicycle pedestrian" speed="9.72" length="50.77" width="3.00" shape="490.27,398.57 488.67,448.81"/>
    </edge>
    <edge id="2_i_1" from="2_i_1" to="2_i_0" name="Arnhemseweg (zuid)" priority="2" type="vehicle" spreadType="center" length="39.82">
        <lane id="2_i_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="39.82" width="3.00" shape="491.98,378.28 494.99,388.68"/>
        <lane id="2_i_1_1" index="1" disallow="moped bicycle pedestrian" speed="9.72" length="39.82" width="3.00" shape="489.10,379.11 492.11,389.51"/>
        <lane id="2_i_1_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="39.82" width="3.00" shape="486.22,379.94 489.23,390.34"/>
    </edge>
    <edge id="2_i_2" from="2_i_2" to="2_i_1" name="Arnhemseweg (zuid)" priority="2" type="vehicle" spreadType="center" length="19.98">
        <lane id="2_i_2_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="19.98" width="3.00" shape="491.23,363.24 490.97,369.96"/>
        <lane id="2_i_2_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="19.98" width="3.00" shape="488.24,363.12 487.97,369.84"/>
    </edge>
    <edge id="2_i_3" from="2_i_3" to="2_i_2" name="Arnhemseweg (zuid)" priority="2" type="vehicle" spreadType="center" length="359.30" shape="491.10,0.00 491.52,70.07 492.51,88.87 492.42,90.82 492.41,93.86 490.80,152.37 490.55,217.59 492.26,287.77 490.71,318.20 489.89,359.19">
        <lane id="2_i_3_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="359.30" width="3.00" shape="491.10,0.00 491.52,70.07 492.51,88.87 492.42,90.82 492.41,93.86 490.80,152.37 490.55,217.59 492.26,287.77 490.71,318.20 489.97,355.20"/>
    </edge>
    <edge id="3_e_0" from="KR27" to="3_e_0" name="Aluminiumweg" priority="4" type="vehicle" spreadType="center" length="524.46" shape="456.40,476.53 396.57,472.91 -1.09,292.25">
        <lane id="3_e_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="524.46" width="3.00" shape="458.08,476.63 396.57,472.91 -1.09,292.25"/>
    </edge>
    <edge id="3_i_0" from="3_i_0" to="KR27" name="Aluminiumweg" priority="3" type="vehicle" spreadType="center" length="75.85" shape="385.12,458.84 415.63,466.55 428.24,467.31 436.78,467.49 451.21,467.82 486.90,466.76">
        <lane id="3_i_0_0" index="0" disallow="moped bicycle pedestrian" speed="9.72" length="75.85" width="3.00" shape="389.38,456.82 416.09,463.57 428.36,464.31 436.85,464.49 451.20,464.82 457.84,464.62"/>
        <lane id="3_i_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="75.85" width="3.00" shape="388.64,459.73 415.63,466.55 428.24,467.31 436.78,467.49 451.21,467.82 457.90,467.62"/>
        <lane id="3_i_0_2" index="2" disallow="moped bicycle pedestrian" speed="9.72" length="75.85" width="3.00" shape="387.91,462.64 415.17,469.53 428.12,470.31 436.71,470.49 451.22,470.82 457.96,470.62"/>
    </edge>
    <edge id="3_i_1" from="3_i_1" to="3_i_0" name="Aluminiumweg" priority="2" type="vehicle" spreadType="center" length="25.44">
        <lane id="3_i_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="25.44" width="3.00" shape="365.20,449.53 382.27,456.13"/>
        <lane id="3_i_1_1" index="1" disallow="moped bicycle pedestrian" speed="9.72" length="25.44" width="3.00" shape="364.12,452.32 381.19,458.93"/>
    </edge>
    <edge id="3_i_2" from="3_i_2" to="3_i_1" name="Aluminiumweg" priority="2" type="vehicle" spreadType="center" length="419.07" shape="9.61,219.51 40.99,248.20 105.32,295.40 147.76,325.39 202.12,357.59 322.43,427.87 361.39,449.66">
        <lane id="3_i_2_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="419.07" width="3.00" shape="9.61,219.51 40.99,248.20 105.32,295.40 147.76,325.39 202.12,357.59 322.43,427.87 358.33,447.95"/>
    </edge>
    <edge id="4_e_0" from="KR27" to="4_e_0" name="Arnhemseweg (noord)" priority="4" type="vehicle" spreadType="center" length="81.69" shape="489.47,471.08 492.52,582.43">
        <lane id="4_e_0_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="81.69" width="3.00" shape="491.83,502.61 493.92,578.78"/>
        <lane id="4_e_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="81.69" width="3.00" shape="488.83,502.58 490.92,578.87"/>
    </edge>
    <edge id="4_e_1" from="4_e_0" to="4_e_1" name="Arnhemseweg (noord)" priority="2" type="vehicle" spreadType="center" length="397.18" shape="492.52,582.43 487.90,629.41 483.84,654.07 475.14,692.42 463.80,727.96 443.73,771.56 430.95,796.01 404.63,831.34 356.69,896.96 328.50,935.44">
        <lane id="4_e_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="397.18" width="3.00" shape="492.17,586.02 487.90,629.41 483.84,654.07 475.14,692.42 463.80,727.96 443.73,771.56 430.95,796.01 404.63,831.34 356.69,896.96 328.50,935.44"/>
    </edge>
    <edge id="4_i_0" from="4_i_0" to="KR27" name="Arnhemseweg (noord)" priority="3" type="vehicle" spreadType="center" length="58.09" shape="479.03,558.60 480.49,470.73">
        <lane id="4_i_0_0" index="0" disallow="moped bicycle pedestrian" speed="9.72" length="58.09" width="3.00" shape="474.48,561.52 475.46,502.44"/>
        <lane id="4_i_0_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="58.09" width="3.00" shape="477.48,561.57 478.46,502.47"/>
        <lane id="4_i_0_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="58.09" width="3.00" shape="480.48,561.62 481.46,502.50"/>
        <lane id="4_i_0_3" index="3" disallow="moped bicycle pedestrian" speed="9.72" length="58.09" width="3.00" shape="483.48,561.66 484.46,502.54"/>
    </edge>
    <edge id="4_i_1" from="4_i_1" to="4_i_0" name="Arnhemseweg (noord)" priority="2" type="vehicle" spreadType="center" length="47.65">
        <lane id="4_i_1_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="47.65" width="3.00" shape="481.79,590.13 478.26,570.98"/>
        <lane id="4_i_1_1" index="1" disallow="moped bicycle pedestrian" speed="9.72" length="47.65" width="3.00" shape="484.74,589.59 481.21,570.44"/>
        <lane id="4_i_1_2" index="2" disallow="moped bicycle pedestrian" speed="13.88" length="47.65" width="3.00" shape="487.69,589.04 484.16,569.89"/>
    </edge>
    <edge id="4_i_2" from="4_i_2" to="4_i_1" name="Arnhemseweg (noord)" priority="2" type="vehicle" spreadType="center" length="17.81">
        <lane id="4_i_2_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="17.81" width="3.00" shape="481.96,602.02 482.24,598.44"/>
        <lane id="4_i_2_1" index="1" disallow="moped bicycle pedestrian" speed="13.88" length="17.81" width="3.00" shape="484.96,602.25 485.23,598.67"/>
    </edge>
    <edge id="4_i_3" from="4_i_3" to="4_i_2" name="Arnhemseweg (noord)" priority="2" type="vehicle" spreadType="center" length="370.66" shape="325.57,933.32 376.26,861.34 405.32,820.73 424.87,792.49 434.98,777.18 449.05,750.74 463.89,714.31 473.40,681.51 479.63,651.49 482.57,625.05 483.16,606.07">
        <lane id="4_i_3_0" index="0" disallow="moped bicycle pedestrian" speed="13.88" length="370.66" width="3.00" shape="325.57,933.32 376.26,861.34 405.32,820.73 424.87,792.49 434.98,777.18 449.05,750.74 463.89,714.31 473.40,681.51 479.63,651.49 482.57,625.05 483.04,610.02"/>
    </edge>
    <edge id="gneE0" from="7_i_0" to="4_c_1" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE0_0" index="0" allow="bicycle" speed="4.16" length="130.03" width="3.00" shape="432.33,627.68 459.82,500.59"/>
    </edge>
    <edge id="gneE10" from="KR27" to="2_c_2" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="504.06,451.87 511.37,452.03">
        <lane id="gneE10_0" index="0" allow="bicycle pedestrian" speed="4.16" length="6.08" width="3.00" shape="502.98,451.85 509.06,451.98"/>
    </edge>
    <edge id="gneE11" from="3_c_1" to="KR27" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="462.91,451.34 478.06,450.69">
        <lane id="gneE11_0" index="0" allow="bicycle pedestrian" speed="4.16" length="12.92" width="3.00" shape="466.41,451.19 479.31,450.64"/>
    </edge>
    <edge id="gneE12" from="KR27" to="3_c_1" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="461.47,460.28 462.91,451.34">
        <lane id="gneE12_0" index="0" allow="bicycle pedestrian" speed="4.16" length="7.73" width="3.00" shape="461.23,461.79 462.46,454.16"/>
    </edge>
    <edge id="gneE13" from="KR27" to="4_c_2" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="510.73,487.18 511.48,500.44">
        <lane id="gneE13_0" index="0" allow="bicycle pedestrian" speed="4.16" length="11.93" width="3.00" shape="510.61,485.03 511.28,496.94"/>
    </edge>
    <edge id="gneE14" from="4_c_2" to="KR27" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="511.48,500.44 499.20,497.59">
        <lane id="gneE14_0" index="0" allow="bicycle pedestrian" speed="4.16" length="9.93" width="3.00" shape="508.07,499.65 498.40,497.40"/>
    </edge>
    <edge id="gneE15" from="KR27" to="4_c_1" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="471.20,497.31 460.47,497.61">
        <lane id="gneE15_0" index="0" allow="bicycle pedestrian" speed="4.16" length="9.00" width="3.00" shape="472.70,497.27 463.71,497.52"/>
    </edge>
    <edge id="gneE16" from="4_c_1" to="KR27" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="460.47,497.61 462.06,484.23">
        <lane id="gneE16_0" index="0" allow="bicycle pedestrian" speed="4.16" length="11.91" width="3.00" shape="460.85,494.40 462.26,482.57"/>
    </edge>
    <edge id="gneE2" from="4_c_2" to="8_e_0" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE2_0" index="0" allow="bicycle" speed="4.16" length="149.05" width="3.00" shape="511.87,503.38 531.25,651.17"/>
    </edge>
    <edge id="gneE3" from="3_c_1" to="gneJ1" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE3_0" index="0" allow="bicycle" speed="4.16" length="42.24" width="3.00" shape="463.74,447.94 473.79,406.91"/>
    </edge>
    <edge id="gneE4" from="gneJ2" to="3_c_1" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE4_0" index="0" allow="bicycle" speed="4.16" length="70.45" width="3.00" shape="391.92,432.38 459.98,450.56"/>
    </edge>
    <edge id="gneE5" from="2_c_2" to="gneJ4" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE5_0" index="0" allow="bicycle" speed="4.16" length="70.14" width="3.00" shape="515.63,453.07 585.41,445.93"/>
    </edge>
    <edge id="gneE6" from="gneJ5" to="2_c_2" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE6_0" index="0" allow="bicycle" speed="4.16" length="56.66" width="3.00" shape="517.61,392.76 512.23,449.16"/>
    </edge>
    <edge id="gneE7" from="gneJ6" to="4_c_2" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE7_0" index="0" allow="bicycle" speed="4.16" length="82.96" width="3.00" shape="596.60,487.45 514.59,499.96"/>
    </edge>
    <edge id="gneE8" from="4_c_1" to="gneJ7" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center">
        <lane id="gneE8_0" index="0" allow="bicycle" speed="4.16" length="69.41" width="3.00" shape="457.43,497.06 389.13,484.69"/>
    </edge>
    <edge id="gneE9" from="2_c_2" to="KR27" name="fietspad (noordwest)" priority="3" type="bicycle" spreadType="center" shape="512.73,454.65 510.27,461.91">
        <lane id="gneE9_0" index="0" allow="bicycle pedestrian" speed="4.16" length="8.66" width="3.00" shape="512.39,455.65 509.61,463.85"/>
    </edge>

    <tlLogic id="KR27" type="actuated" programID="0" offset="0">
        <phase duration="7"  state="rrGrrrrrrrgGGgrrrrrrrrGgGrrrrrGGrGGGG" minDur="5" maxDur="50"/>
        <phase duration="5"  state="rrGrrrrrrrgGGgrrrrrrrrGgGrrrrrrrrrrrr"/>
        <phase duration="3"  state="rryrrrrrrryyygrrrrrrrrygyrrrrrrrrrrrr"/>
        <phase duration="6"  state="rrrrrrrrrrrrrGrrrrrrrrrGrrrrrrrrrrrrr" minDur="5" maxDur="50"/>
        <phase duration="3"  state="rrrrrrrrrrrrryrrrrrrrrryrrrrrrrrrrrrr"/>
        <phase duration="8"  state="GgGrrrrrrGrrrrrrrrgGgGrrrrrrrrGrGGrrG" minDur="5" maxDur="50"/>
        <phase duration="5"  state="GgGrrrrrrGrrrrrrrrgGgGrrrrrrrrrrrrrrr"/>
        <phase duration="3"  state="ygyrrrrrryrrrrrrrryygyrrrrrrrrrrrrrrr"/>
        <phase duration="6"  state="rGrrrrrrrrrrrrrrrrrrGrrrrrrrrrrrrrrrr" minDur="5" maxDur="50"/>
        <phase duration="3"  state="ryrrrrrrrrrrrrrrrrrryrrrrrrrrrrrrrrrr"/>
        <phase duration="8"  state="rrrrrrrGGgrrrrGggGrrrrrrrrrrrGGGGGGGG" minDur="5" maxDur="50"/>
        <phase duration="5"  state="rrrrrrrGGgrrrrGggGrrrrrrrrrrrrrrrrrrr"/>
        <phase duration="3"  state="rrrrrrryyyrrrryyyyrrrrrrrrrrrrrrrrrrr"/>
        <phase duration="8"  state="rrGggggrrGrrrrrrrGrrrrrrGGGGgGrGGrGrr" minDur="5" maxDur="50"/>
        <phase duration="5"  state="rrGggggrrGrrrrrrrGrrrrrrGGGGgrrrrrrrr"/>
        <phase duration="3"  state="rryygggrryrrrrrrryrrrrrryyyyyrrrrrrrr"/>
        <phase duration="6"  state="rrrrGGGrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr" minDur="5" maxDur="50"/>
        <phase duration="3"  state="rrrryyyrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr"/>
    </tlLogic>

    <junction id="1_e_0" type="dead_end" x="661.88" y="454.62" incLanes="1_e_0_0" intLanes="" shape="661.75,453.13 662.01,456.11"/>
    <junction id="1_i_0" type="priority" x="571.01" y="470.45" incLanes="1_i_1_0" intLanes=":1_i_0_0_0 :1_i_0_0_1 :1_i_0_0_2" shape="575.06,471.44 574.68,468.47 571.76,468.05 570.77,467.43 569.79,466.79 568.56,466.32 566.84,466.20 567.40,475.18 570.34,474.22 571.24,473.42 572.14,472.59 573.32,471.89">
        <request index="0" response="000" foes="000" cont="0"/>
        <request index="1" response="000" foes="000" cont="0"/>
        <request index="2" response="000" foes="000" cont="0"/>
    </junction>
    <junction id="1_i_1" type="dead_end" x="718.05" y="450.65" incLanes="" intLanes="" shape="717.80,449.17 718.30,452.13"/>
    <junction id="2_c_2" type="right_before_left" x="511.82" y="453.46" incLanes="gneE6_0 gneE10_0" intLanes=":2_c_2_0_0 :2_c_2_1_0 :2_c_2_2_0 :2_c_2_3_0" shape="515.78,454.56 515.48,451.58 514.40,451.42 514.04,451.11 513.81,450.66 513.71,450.06 513.72,449.30 510.74,449.02 510.49,449.85 510.26,450.13 509.94,450.33 509.56,450.45 509.09,450.48 509.03,453.48 510.35,453.69 510.76,453.93 511.00,454.26 511.07,454.67 510.97,455.17 513.81,456.14 514.24,455.33 514.54,455.03 514.90,454.80 515.31,454.65">
        <request index="0" response="0000" foes="0100" cont="0"/>
        <request index="1" response="0000" foes="1100" cont="0"/>
        <request index="2" response="0011" foes="0011" cont="0"/>
        <request index="3" response="0010" foes="0010" cont="0"/>
    </junction>
    <junction id="2_e_0" type="zipper" x="484.49" y="376.49" incLanes="2_e_0_0 2_e_0_1" intLanes=":2_e_0_0_0" shape="486.01,372.50 483.01,372.48 482.61,375.45 481.87,377.49 481.58,378.74 481.45,380.46 487.45,380.52 487.09,377.54 486.38,375.48 486.11,374.23">
        <request index="0" response="0" foes="0" cont="0"/>
    </junction>
    <junction id="2_e_1" type="dead_end" x="487.59" y="0.00" incLanes="2_e_1_0" intLanes="" shape="486.09,-0.03 489.09,0.03"/>
    <junction id="2_i_0" type="priority" x="494.77" y="398.71" incLanes="2_i_1_0 2_i_1_1 2_i_1_2" intLanes=":2_i_0_0_0 :2_i_0_0_1 :2_i_0_0_2 :2_i_0_0_3" shape="496.43,388.26 487.79,390.76 488.56,393.60 488.74,394.62 488.82,395.66 488.82,396.91 488.77,398.60 500.76,398.99 500.62,396.57 500.08,394.87 499.27,393.54 498.31,392.23 497.32,390.58">
        <request index="0" response="0000" foes="0000" cont="0"/>
        <request index="1" response="0000" foes="0000" cont="0"/>
        <request index="2" response="0000" foes="0000" cont="0"/>
        <request index="3" response="0000" foes="0000" cont="0"/>
    </junction>
    <junction id="2_i_1" type="priority" x="489.11" y="379.14" incLanes="2_i_2_0 2_i_2_1" intLanes=":2_i_1_0_0 :2_i_1_0_1 :2_i_1_0_2" shape="484.78,380.36 493.42,377.86 492.65,375.02 492.48,374.00 492.40,372.96 492.41,371.71 492.47,370.02 486.47,369.79 486.17,372.07 485.61,373.76 484.99,375.15 484.51,376.52 484.37,378.16">
        <request index="0" response="000" foes="000" cont="0"/>
        <request index="1" response="000" foes="000" cont="0"/>
        <request index="2" response="000" foes="000" cont="0"/>
    </junction>
    <junction id="2_i_2" type="priority" x="489.89" y="359.19" incLanes="2_i_3_0" intLanes=":2_i_2_0_0 :2_i_2_0_1" shape="491.47,355.23 488.47,355.17 488.02,358.11 487.63,359.12 487.24,360.12 486.91,361.36 486.74,363.06 492.73,363.30 492.46,360.30 492.13,359.26 491.80,358.23 491.55,356.96">
        <request index="0" response="00" foes="00" cont="0"/>
        <request index="1" response="00" foes="00" cont="0"/>
    </junction>
    <junction id="2_i_3" type="dead_end" x="491.10" y="0.00" incLanes="" intLanes="" shape="489.60,0.01 492.60,-0.01"/>
    <junction id="3_c_1" type="priority" x="462.91" y="451.34" incLanes="gneE4_0 gneE12_0" intLanes=":3_c_1_0_0 :3_c_1_1_0 :3_c_1_2_0 :3_c_1_4_0" shape="466.47,452.69 466.34,449.69 465.55,449.57 465.31,449.38 465.17,449.10 465.13,448.74 465.20,448.30 462.29,447.59 461.86,448.60 461.57,448.92 461.23,449.11 460.82,449.17 460.37,449.11 459.59,452.01 460.47,452.41 460.75,452.70 460.93,453.05 461.00,453.46 460.98,453.92 463.94,454.40 464.33,453.49 464.70,453.16 465.18,452.92 465.77,452.76">
        <request index="0" response="0000" foes="0100" cont="0"/>
        <request index="1" response="0000" foes="1100" cont="0"/>
        <request index="2" response="0011" foes="0011" cont="0"/>
        <request index="3" response="0010" foes="0010" cont="1"/>
    </junction>
    <junction id="3_e_0" type="dead_end" x="-1.09" y="292.25" incLanes="3_e_0_0" intLanes="" shape="-1.71,293.62 -0.47,290.88"/>
    <junction id="3_i_0" type="priority" x="385.12" y="458.84" incLanes="3_i_1_0 3_i_1_1" intLanes=":3_i_0_0_0 :3_i_0_0_1 :3_i_0_0_2" shape="387.54,464.09 389.74,455.37 387.17,455.10 386.23,455.20 385.30,455.26 384.22,455.16 382.82,454.73 380.65,460.33 383.22,461.72 384.04,462.38 384.87,463.00 385.96,463.58">
        <request index="0" response="000" foes="000" cont="0"/>
        <request index="1" response="000" foes="000" cont="0"/>
        <request index="2" response="000" foes="000" cont="0"/>
    </junction>
    <junction id="3_i_1" type="priority" x="361.39" y="449.66" incLanes="3_i_2_0" intLanes=":3_i_1_0_0 :3_i_1_0_1" shape="363.58,453.72 365.74,448.13 363.26,447.56 362.33,447.55 361.41,447.49 360.37,447.24 359.06,446.64 357.60,449.26 359.82,450.93 360.50,451.67 361.20,452.37 362.15,453.05">
        <request index="0" response="00" foes="00" cont="0"/>
        <request index="1" response="00" foes="00" cont="0"/>
    </junction>
    <junction id="3_i_2" type="dead_end" x="9.61" y="219.51" incLanes="" intLanes="" shape="8.60,220.62 10.62,218.40"/>
    <junction id="4_c_1" type="priority" x="460.47" y="497.61" incLanes="gneE15_0 gneE0_0" intLanes=":4_c_1_0_0 :4_c_1_4_0 :4_c_1_2_0 :4_c_1_3_0" shape="463.75,499.02 463.66,496.02 462.85,495.88 462.58,495.68 462.41,495.40 462.33,495.03 462.34,494.57 459.36,494.22 459.09,495.10 458.85,495.38 458.53,495.55 458.15,495.62 457.69,495.58 457.16,498.53 457.97,498.85 458.22,499.11 458.37,499.43 458.41,499.82 458.36,500.28 461.29,500.91 461.74,499.88 462.10,499.52 462.56,499.25 463.11,499.09">
        <request index="0" response="1100" foes="1100" cont="0"/>
        <request index="1" response="1000" foes="1000" cont="1"/>
        <request index="2" response="0000" foes="0001" cont="0"/>
        <request index="3" response="0000" foes="0011" cont="0"/>
    </junction>
    <junction id="4_c_2" type="right_before_left" x="511.48" y="500.44" incLanes="gneE7_0 gneE13_0" intLanes=":4_c_2_0_0 :4_c_2_1_0 :4_c_2_2_0 :4_c_2_3_0" shape="510.38,503.58 513.35,503.19 513.43,502.33 513.62,502.01 513.92,501.75 514.32,501.57 514.82,501.45 514.37,498.48 513.53,498.40 513.23,498.19 513.00,497.86 512.85,497.42 512.78,496.86 509.78,497.03 509.67,497.82 509.48,498.07 509.21,498.21 508.85,498.25 508.41,498.19 507.73,501.11 509.09,501.63 509.59,502.01 509.97,502.45 510.24,502.98">
        <request index="0" response="0000" foes="0100" cont="0"/>
        <request index="1" response="0000" foes="1100" cont="0"/>
        <request index="2" response="0011" foes="0011" cont="0"/>
        <request index="3" response="0010" foes="0010" cont="0"/>
    </junction>
    <junction id="4_e_0" type="zipper" x="492.52" y="582.43" incLanes="4_e_0_0 4_e_0_1" intLanes=":4_e_0_0_0" shape="495.42,578.74 489.42,578.91 489.87,581.50 490.21,582.40 490.53,583.29 490.71,584.38 490.67,585.87 493.66,586.17 494.31,583.40 494.72,582.46 495.09,581.52 495.35,580.35">
        <request index="0" response="0" foes="0" cont="0"/>
    </junction>
    <junction id="4_e_1" type="dead_end" x="328.50" y="935.44" incLanes="4_e_1_0" intLanes="" shape="329.71,936.33 327.29,934.55"/>
    <junction id="4_i_0" type="priority" x="479.03" y="558.60" incLanes="4_i_1_0 4_i_1_1 4_i_1_2" intLanes=":4_i_0_0_0 :4_i_0_0_1 :4_i_0_0_2 :4_i_0_0_3" shape="476.79,571.25 485.64,569.62 485.13,566.71 485.01,565.68 484.96,564.65 484.96,563.39 484.98,561.69 472.98,561.49 473.17,563.68 473.72,565.21 474.50,566.41 475.36,567.60 476.17,569.11">
        <request index="0" response="0000" foes="0000" cont="0"/>
        <request index="1" response="0000" foes="0000" cont="0"/>
        <request index="2" response="0000" foes="0000" cont="0"/>
        <request index="3" response="0000" foes="0000" cont="0"/>
    </junction>
    <junction id="4_i_1" type="priority" x="484.51" y="588.32" incLanes="4_i_2_0 4_i_2_1" intLanes=":4_i_1_0_0 :4_i_1_0_1 :4_i_1_0_2" shape="489.17,588.77 480.32,590.40 480.81,593.31 480.91,594.34 480.92,595.38 480.86,596.64 480.74,598.33 486.72,598.78 487.10,596.61 487.74,595.03 488.44,593.75 489.04,592.48 489.34,590.92">
        <request index="0" response="000" foes="000" cont="0"/>
        <request index="1" response="000" foes="000" cont="0"/>
        <request index="2" response="000" foes="000" cont="0"/>
    </junction>
    <junction id="4_i_2" type="priority" x="483.16" y="606.07" incLanes="4_i_3_0" intLanes=":4_i_2_0_0 :4_i_2_0_1" shape="486.45,602.36 480.47,601.90 480.64,604.90 480.93,605.93 481.25,606.97 481.48,608.24 481.54,609.97 484.54,610.06 485.02,607.18 485.43,606.21 485.85,605.23 486.21,604.03">
        <request index="0" response="00" foes="00" cont="0"/>
        <request index="1" response="00" foes="00" cont="0"/>
    </junction>
    <junction id="4_i_3" type="dead_end" x="325.57" y="933.32" incLanes="" intLanes="" shape="326.80,934.18 324.34,932.46"/>
    <junction id="7_i_0" type="dead_end" x="432.33" y="627.68" incLanes="" intLanes="" shape="433.80,628.00 430.86,627.36"/>
    <junction id="8_e_0" type="dead_end" x="531.25" y="651.17" incLanes="gneE2_0" intLanes="" shape="532.74,650.97 529.76,651.37"/>
    <junction id="KR27" type="traffic_light" x="486.47" y="471.24" incLanes="gneE14_0 1_i_0_0 1_i_0_1 1_i_0_2 gneE9_0 2_i_0_0 2_i_0_1 2_i_0_2 2_i_0_3 gneE11_0 3_i_0_0 3_i_0_1 3_i_0_2 gneE16_0 4_i_0_0 4_i_0_1 4_i_0_2 4_i_0_3 :KR27_w0_0 :KR27_w5_0 :KR27_w1_0 :KR27_w6_0 :KR27_w2_0 :KR27_w7_0 :KR27_w3_0 :KR27_w4_0" intLanes=":KR27_0_0 :KR27_20_0 :KR27_21_0 :KR27_22_0 :KR27_4_0 :KR27_5_0 :KR27_23_0 :KR27_7_0 :KR27_7_1 :KR27_24_0 :KR27_10_0 :KR27_25_0 :KR27_26_0 :KR27_27_0 :KR27_14_0 :KR27_15_0 :KR27_28_0 :KR27_17_0 :KR27_17_1 :KR27_29_0 :KR27_c0_0 :KR27_c1_0 :KR27_c2_0 :KR27_c3_0 :KR27_c4_0 :KR27_c5_0 :KR27_c6_0 :KR27_c7_0" shape="479.39,448.47 479.18,454.08 472.24,457.11 465.30,461.88 457.78,461.71 458.19,482.40 465.38,482.70 469.29,487.48 472.76,493.46 472.62,502.41 498.07,502.68 498.61,494.07 502.86,488.86 507.55,485.05 516.44,484.99 517.12,464.03 507.02,463.79 504.94,459.63 503.21,455.55 502.83,449.33" customShape="1">
        <request index="0"  response="0000000011110000000110000010" foes="0000000011110010000110000010" cont="0"/>
        <request index="1"  response="0000001100000010000110100001" foes="0000001100000010000110100001" cont="1"/>
        <request index="2"  response="0100001011111010001110100000" foes="0100001011111110001110100000" cont="1"/>
        <request index="3"  response="0001001011100001111110100000" foes="0001001011100001111110100000" cont="1"/>
        <request index="4"  response="0000011010000001000001000000" foes="0000011010000001000001000000" cont="0"/>
        <request index="5"  response="0000000010000001000001001110" foes="0000000010000001000001001110" cont="0"/>
        <request index="6"  response="0000110010000001000000000000" foes="0000110010000001010000110000" cont="1"/>
        <request index="7"  response="0000100110000011000000001110" foes="0000100110000011010000001111" cont="0"/>
        <request index="8"  response="0000100110000011000000001110" foes="0000100110000011010000001111" cont="0"/>
        <request index="9"  response="0100100001111011000000001100" foes="0100100001111111010000001100" cont="1"/>
        <request index="10" response="0000000001100000101111001000" foes="0000000001100000101111001000" cont="0"/>
        <request index="11" response="0011000001101000010000001000" foes="0011000001101000010000001000" cont="1"/>
        <request index="12" response="0010010011101000001111101000" foes="0010010011101000001111111000" cont="1"/>
        <request index="13" response="0010000111101000001110000111" foes="0010000111101000001110000111" cont="1"/>
        <request index="14" response="0110000000010000001000000100" foes="0110000000010000001000000100" cont="0"/>
        <request index="15" response="0000000000010011100000000100" foes="0000000000010011101000000100" cont="0"/>
        <request index="16" response="1100000000001000001000000000" foes="1100000000001100001000000101" cont="1"/>
        <request index="17" response="1001000000000011101000000000" foes="1001000000000011111000001101" cont="0"/>
        <request index="18" response="1001000000000011101000000000" foes="1001000000000011111000001101" cont="0"/>
        <request index="19" response="1000010000000011000111001000" foes="1000010000000011000111111101" cont="1"/>
        <request index="20" response="0000000000000000000000000000" foes="0000000000000010000110000010" cont="0"/>
        <request index="21" response="0000000000000000000000000000" foes="0000000000000000000000011110" cont="0"/>
        <request index="22" response="0000000000000000000000000000" foes="0000000010000001000001010000" cont="0"/>
        <request index="23" response="0000000000000000000000000000" foes="0000000000000000001111000000" cont="0"/>
        <request index="24" response="0000000000000000000000000000" foes="0000000001100000100000001000" cont="0"/>
        <request index="25" response="0000000000000000000000000000" foes="0000000000000111100000000000" cont="0"/>
        <request index="26" response="0000000000000000000000000000" foes="0000000000010100001000000100" cont="0"/>
        <request index="27" response="0000000000000000000000000000" foes="0000000011110000000000000000" cont="0"/>
    </junction>
    <junction id="gneJ1" type="dead_end" x="473.79" y="406.91" incLanes="gneE3_0" intLanes="" shape="472.33,406.55 475.25,407.27"/>
    <junction id="gneJ2" type="dead_end" x="391.92" y="432.38" incLanes="" intLanes="" shape="391.53,433.83 392.31,430.93"/>
    <junction id="gneJ4" type="dead_end" x="585.41" y="445.93" incLanes="gneE5_0" intLanes="" shape="585.26,444.44 585.56,447.42"/>
    <junction id="gneJ5" type="dead_end" x="517.61" y="392.76" incLanes="" intLanes="" shape="516.12,392.62 519.10,392.90"/>
    <junction id="gneJ6" type="dead_end" x="596.60" y="487.45" incLanes="" intLanes="" shape="596.37,485.97 596.83,488.93"/>
    <junction id="gneJ7" type="dead_end" x="389.13" y="484.69" incLanes="gneE8_0" intLanes="" shape="388.86,486.17 389.40,483.21"/>

    <junction id=":3_c_1_4_0" type="internal" x="463.03" y="452.74" incLanes=":3_c_1_3_0 gneE4_0" intLanes=":3_c_1_1_0"/>
    <junction id=":4_c_1_4_0" type="internal" x="462.01" y="497.17" incLanes=":4_c_1_1_0 gneE0_0" intLanes=":4_c_1_3_0"/>
    <junction id=":KR27_20_0" type="internal" x="492.33" y="498.58" incLanes=":KR27_1_0" intLanes=":KR27_0_0 :KR27_5_0 :KR27_7_0 :KR27_7_1 :KR27_13_0 :KR27_c0_0 :KR27_c1_0"/>
    <junction id=":KR27_21_0" type="internal" x="499.07" y="474.88" incLanes=":KR27_2_0 4_i_0_0 4_i_0_1 4_i_0_2 4_i_0_3" intLanes=":KR27_5_0 :KR27_7_0 :KR27_7_1 :KR27_9_0 :KR27_13_0 :KR27_14_0 :KR27_15_0 :KR27_16_0 :KR27_17_0 :KR27_17_1 :KR27_19_0 :KR27_c1_0 :KR27_c6_0"/>
    <junction id=":KR27_22_0" type="internal" x="487.03" y="452.71" incLanes=":KR27_3_0 4_i_0_1 4_i_0_2" intLanes=":KR27_5_0 :KR27_7_0 :KR27_7_1 :KR27_9_0 :KR27_10_0 :KR27_11_0 :KR27_12_0 :KR27_17_0 :KR27_17_1 :KR27_19_0 :KR27_c1_0 :KR27_c4_0"/>
    <junction id=":KR27_23_0" type="internal" x="512.99" y="466.88" incLanes=":KR27_6_0" intLanes=":KR27_4_0 :KR27_5_0 :KR27_10_0 :KR27_12_0 :KR27_19_0 :KR27_c2_0 :KR27_c3_0"/>
    <junction id=":KR27_24_0" type="internal" x="463.45" y="475.02" incLanes=":KR27_9_0 gneE16_0" intLanes=":KR27_2_0 :KR27_3_0 :KR27_10_0 :KR27_12_0 :KR27_13_0 :KR27_14_0 :KR27_15_0 :KR27_16_0 :KR27_17_0 :KR27_17_1 :KR27_c3_0 :KR27_c6_0"/>
    <junction id=":KR27_25_0" type="internal" x="481.28" y="452.57" incLanes=":KR27_11_0" intLanes=":KR27_3_0 :KR27_10_0 :KR27_15_0 :KR27_17_0 :KR27_17_1 :KR27_c4_0 :KR27_c5_0"/>
    <junction id=":KR27_26_0" type="internal" x="513.01" y="467.14" incLanes=":KR27_12_0" intLanes=":KR27_3_0 :KR27_4_0 :KR27_5_0 :KR27_6_0 :KR27_7_0 :KR27_7_1 :KR27_9_0 :KR27_15_0 :KR27_17_0 :KR27_17_1 :KR27_19_0 :KR27_c2_0 :KR27_c5_0"/>
    <junction id=":KR27_27_0" type="internal" x="487.69" y="495.37" incLanes=":KR27_13_0 gneE14_0" intLanes=":KR27_0_0 :KR27_1_0 :KR27_2_0 :KR27_7_0 :KR27_7_1 :KR27_9_0 :KR27_15_0 :KR27_17_0 :KR27_17_1 :KR27_19_0 :KR27_c0_0 :KR27_c5_0"/>
    <junction id=":KR27_28_0" type="internal" x="461.03" y="477.40" incLanes=":KR27_16_0" intLanes=":KR27_0_0 :KR27_2_0 :KR27_9_0 :KR27_14_0 :KR27_15_0 :KR27_c6_0 :KR27_c7_0"/>
    <junction id=":KR27_29_0" type="internal" x="513.08" y="468.01" incLanes=":KR27_19_0" intLanes=":KR27_0_0 :KR27_2_0 :KR27_3_0 :KR27_4_0 :KR27_5_0 :KR27_6_0 :KR27_7_0 :KR27_7_1 :KR27_12_0 :KR27_13_0 :KR27_c2_0 :KR27_c7_0"/>

    <connection from="1_i_0" to="4_e_0" fromLane="0" toLane="0" via=":KR27_1_0" tl="KR27" linkIndex="3" dir="r" state="o"/>
    <connection from="1_i_0" to="3_e_0" fromLane="1" toLane="0" via=":KR27_2_0" tl="KR27" linkIndex="4" dir="L" state="o"/>
    <connection from="1_i_0" to="2_e_0" fromLane="2" toLane="1" via=":KR27_3_0" tl="KR27" linkIndex="5" dir="l" state="o"/>
    <connection from="1_i_0" to="1_e_0" fromLane="2" toLane="0" via=":KR27_4_0" tl="KR27" linkIndex="6" dir="t" state="o"/>
    <connection from="1_i_1" to="1_i_0" fromLane="0" toLane="0" shape="571.01,470.45 571.01,470.45" via=":1_i_0_0_0" dir="s" state="M"/>
    <connection from="1_i_1" to="1_i_0" fromLane="0" toLane="1" shape="571.01,470.45 571.01,470.45" via=":1_i_0_0_1" dir="s" state="M"/>
    <connection from="1_i_1" to="1_i_0" fromLane="0" toLane="2" shape="571.01,470.45 571.01,470.45" via=":1_i_0_0_2" dir="s" state="M"/>
    <connection from="2_e_0" to="2_e_1" fromLane="0" toLane="0" shape="484.49,376.49 484.49,376.49" via=":2_e_0_0_0" dir="s" state="M"/>
    <connection from="2_i_0" to="1_e_0" fromLane="0" toLane="0" via=":KR27_6_0" tl="KR27" linkIndex="10" dir="r" state="o"/>
    <connection from="2_i_0" to="4_e_0" fromLane="1" toLane="0" via=":KR27_7_0" tl="KR27" linkIndex="11" dir="s" state="o"/>
    <connection from="2_i_0" to="4_e_0" fromLane="2" toLane="1" via=":KR27_7_1" tl="KR27" linkIndex="12" dir="s" state="o"/>
    <connection from="2_i_0" to="3_e_0" fromLane="3" toLane="0" via=":KR27_9_0" tl="KR27" linkIndex="13" dir="l" state="o"/>
    <connection from="2_i_1" to="2_i_0" fromLane="0" toLane="0" shape="494.77,398.71 494.77,398.71" via=":2_i_0_0_0" dir="s" state="M"/>
    <connection from="2_i_1" to="2_i_0" fromLane="0" toLane="1" shape="494.77,398.71 494.77,398.71" via=":2_i_0_0_1" dir="s" state="M"/>
    <connection from="2_i_1" to="2_i_0" fromLane="0" toLane="2" shape="494.77,398.71 494.77,398.71" via=":2_i_0_0_2" dir="s" state="M"/>
    <connection from="2_i_1" to="2_i_0" fromLane="0" toLane="3" shape="494.77,398.71 494.77,398.71" via=":2_i_0_0_3" dir="s" state="M"/>
    <connection from="2_i_2" to="2_i_1" fromLane="0" toLane="0" shape="489.11,379.14 489.11,379.14" via=":2_i_1_0_0" dir="s" state="M"/>
    <connection from="2_i_2" to="2_i_1" fromLane="0" toLane="1" shape="489.11,379.14 489.11,379.14" via=":2_i_1_0_1" dir="s" state="M"/>
    <connection from="2_i_2" to="2_i_1" fromLane="0" toLane="2" shape="489.11,379.14 489.11,379.14" via=":2_i_1_0_2" dir="s" state="M"/>
    <connection from="2_i_3" to="2_i_2" fromLane="0" toLane="0" shape="489.89,359.19 489.89,359.19" via=":2_i_2_0_0" dir="s" state="M"/>
    <connection from="2_i_3" to="2_i_2" fromLane="0" toLane="1" shape="489.89,359.19 489.89,359.19" via=":2_i_2_0_1" dir="s" state="M"/>
    <connection from="3_i_0" to="2_e_0" fromLane="0" toLane="0" via=":KR27_11_0" tl="KR27" linkIndex="18" dir="r" state="o"/>
    <connection from="3_i_0" to="1_e_0" fromLane="1" toLane="0" via=":KR27_12_0" tl="KR27" linkIndex="19" dir="R" state="o"/>
    <connection from="3_i_0" to="4_e_0" fromLane="2" toLane="1" via=":KR27_13_0" tl="KR27" linkIndex="20" dir="L" state="o"/>
    <connection from="3_i_0" to="3_e_0" fromLane="2" toLane="0" via=":KR27_14_0" tl="KR27" linkIndex="21" dir="R" state="o"/>
    <connection from="3_i_1" to="3_i_0" fromLane="0" toLane="0" shape="385.12,458.84 385.12,458.84" via=":3_i_0_0_0" dir="s" state="M"/>
    <connection from="3_i_1" to="3_i_0" fromLane="0" toLane="1" shape="385.12,458.84 385.12,458.84" via=":3_i_0_0_1" dir="s" state="M"/>
    <connection from="3_i_1" to="3_i_0" fromLane="0" toLane="2" shape="385.12,458.84 385.12,458.84" via=":3_i_0_0_2" dir="s" state="M"/>
    <connection from="3_i_2" to="3_i_1" fromLane="0" toLane="0" shape="361.39,449.66 361.39,449.66" via=":3_i_1_0_0" dir="s" state="M"/>
    <connection from="3_i_2" to="3_i_1" fromLane="0" toLane="1" shape="361.39,449.66 361.39,449.66" via=":3_i_1_0_1" dir="s" state="M"/>
    <connection from="4_e_0" to="4_e_1" fromLane="0" toLane="0" shape="492.52,582.43 492.52,582.43" via=":4_e_0_0_0" dir="s" state="M"/>
    <connection from="4_i_0" to="3_e_0" fromLane="0" toLane="0" via=":KR27_16_0" tl="KR27" linkIndex="25" dir="r" state="o"/>
    <connection from="4_i_0" to="2_e_0" fromLane="1" toLane="0" via=":KR27_17_0" tl="KR27" linkIndex="26" dir="s" state="o"/>
    <connection from="4_i_0" to="2_e_0" fromLane="2" toLane="1" via=":KR27_17_1" tl="KR27" linkIndex="27" dir="s" state="o"/>
    <connection from="4_i_0" to="1_e_0" fromLane="3" toLane="0" via=":KR27_19_0" tl="KR27" linkIndex="28" dir="l" state="o"/>
    <connection from="4_i_1" to="4_i_0" fromLane="0" toLane="0" shape="479.03,558.60 479.03,558.60" via=":4_i_0_0_0" dir="s" state="M"/>
    <connection from="4_i_1" to="4_i_0" fromLane="0" toLane="1" shape="479.03,558.60 479.03,558.60" via=":4_i_0_0_1" dir="s" state="M"/>
    <connection from="4_i_1" to="4_i_0" fromLane="0" toLane="2" shape="479.03,558.60 479.03,558.60" via=":4_i_0_0_2" dir="s" state="M"/>
    <connection from="4_i_1" to="4_i_0" fromLane="0" toLane="3" shape="479.03,558.60 479.03,558.60" via=":4_i_0_0_3" dir="s" state="M"/>
    <connection from="4_i_2" to="4_i_1" fromLane="0" toLane="0" shape="484.51,588.32 484.51,588.32" via=":4_i_1_0_0" dir="s" state="M"/>
    <connection from="4_i_2" to="4_i_1" fromLane="0" toLane="1" shape="484.51,588.32 484.51,588.32" via=":4_i_1_0_1" dir="s" state="M"/>
    <connection from="4_i_2" to="4_i_1" fromLane="0" toLane="2" shape="484.51,588.32 484.51,588.32" via=":4_i_1_0_2" dir="s" state="M"/>
    <connection from="4_i_3" to="4_i_2" fromLane="0" toLane="0" shape="483.16,606.07 483.16,606.07" via=":4_i_2_0_0" dir="s" state="M"/>
    <connection from="4_i_3" to="4_i_2" fromLane="0" toLane="1" shape="483.16,606.07 483.16,606.07" via=":4_i_2_0_1" dir="s" state="M"/>
    <connection from="gneE0" to="gneE8" fromLane="0" toLane="0" via=":4_c_1_2_0" dir="r" state="M"/>
    <connection from="gneE0" to="gneE16" fromLane="0" toLane="0" via=":4_c_1_3_0" dir="s" state="M"/>
    <connection from="gneE10" to="gneE5" fromLane="0" toLane="0" via=":2_c_2_2_0" dir="s" state="="/>
    <connection from="gneE10" to="gneE9" fromLane="0" toLane="0" via=":2_c_2_3_0" dir="l" state="="/>
    <connection from="gneE11" to="gneE10" fromLane="0" toLane="0" via=":KR27_10_0" tl="KR27" linkIndex="14" dir="s" state="o"/>
    <connection from="gneE12" to="gneE3" fromLane="0" toLane="0" via=":3_c_1_2_0" dir="s" state="m"/>
    <connection from="gneE12" to="gneE11" fromLane="0" toLane="0" via=":3_c_1_3_0" dir="l" state="m"/>
    <connection from="gneE13" to="gneE2" fromLane="0" toLane="0" via=":4_c_2_2_0" dir="s" state="="/>
    <connection from="gneE13" to="gneE14" fromLane="0" toLane="0" via=":4_c_2_3_0" dir="l" state="="/>
    <connection from="gneE14" to="gneE15" fromLane="0" toLane="0" via=":KR27_0_0" tl="KR27" linkIndex="0" dir="s" state="o"/>
    <connection from="gneE15" to="gneE8" fromLane="0" toLane="0" via=":4_c_1_0_0" dir="s" state="m"/>
    <connection from="gneE15" to="gneE16" fromLane="0" toLane="0" via=":4_c_1_1_0" dir="l" state="m"/>
    <connection from="gneE16" to="gneE12" fromLane="0" toLane="0" via=":KR27_15_0" tl="KR27" linkIndex="22" dir="s" state="O"/>
    <connection from="gneE4" to="gneE3" fromLane="0" toLane="0" via=":3_c_1_0_0" dir="r" state="M"/>
    <connection from="gneE4" to="gneE11" fromLane="0" toLane="0" via=":3_c_1_1_0" dir="s" state="M"/>
    <connection from="gneE6" to="gneE5" fromLane="0" toLane="0" via=":2_c_2_0_0" dir="r" state="="/>
    <connection from="gneE6" to="gneE9" fromLane="0" toLane="0" via=":2_c_2_1_0" dir="s" state="="/>
    <connection from="gneE7" to="gneE2" fromLane="0" toLane="0" via=":4_c_2_0_0" dir="r" state="="/>
    <connection from="gneE7" to="gneE14" fromLane="0" toLane="0" via=":4_c_2_1_0" dir="s" state="="/>
    <connection from="gneE9" to="gneE13" fromLane="0" toLane="0" via=":KR27_5_0" tl="KR27" linkIndex="7" dir="s" state="o"/>

    <connection from=":1_i_0_0" to="1_i_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":1_i_0_0" to="1_i_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":1_i_0_0" to="1_i_0" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":2_c_2_0" to="gneE5" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":2_c_2_1" to="gneE9" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_c_2_2" to="gneE5" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_c_2_3" to="gneE9" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":2_e_0_0" to="2_e_1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_i_0_0" to="2_i_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_i_0_0" to="2_i_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":2_i_0_0" to="2_i_0" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":2_i_0_0" to="2_i_0" fromLane="3" toLane="3" dir="s" state="M"/>
    <connection from=":2_i_1_0" to="2_i_1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_i_1_0" to="2_i_1" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":2_i_1_0" to="2_i_1" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":2_i_2_0" to="2_i_2" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":2_i_2_0" to="2_i_2" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":3_c_1_0" to="gneE3" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":3_c_1_1" to="gneE11" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":3_c_1_2" to="gneE3" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":3_c_1_3" to="gneE11" fromLane="0" toLane="0" via=":3_c_1_4_0" dir="l" state="m"/>
    <connection from=":3_c_1_4" to="gneE11" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":3_i_0_0" to="3_i_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":3_i_0_0" to="3_i_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":3_i_0_0" to="3_i_0" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":3_i_1_0" to="3_i_1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":3_i_1_0" to="3_i_1" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":4_c_1_0" to="gneE8" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_1_1" to="gneE16" fromLane="0" toLane="0" via=":4_c_1_4_0" dir="l" state="m"/>
    <connection from=":4_c_1_4" to="gneE16" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":4_c_1_2" to="gneE8" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":4_c_1_3" to="gneE16" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_2_0" to="gneE2" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":4_c_2_1" to="gneE14" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_2_2" to="gneE2" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_2_3" to="gneE14" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":4_e_0_0" to="4_e_1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_i_0_0" to="4_i_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_i_0_0" to="4_i_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":4_i_0_0" to="4_i_0" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":4_i_0_0" to="4_i_0" fromLane="3" toLane="3" dir="s" state="M"/>
    <connection from=":4_i_1_0" to="4_i_1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_i_1_0" to="4_i_1" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":4_i_1_0" to="4_i_1" fromLane="2" toLane="2" dir="s" state="M"/>
    <connection from=":4_i_2_0" to="4_i_2" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_i_2_0" to="4_i_2" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":KR27_0" to="gneE15" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_1" to="4_e_0" fromLane="0" toLane="0" via=":KR27_20_0" dir="r" state="m"/>
    <connection from=":KR27_20" to="4_e_0" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":KR27_2" to="3_e_0" fromLane="0" toLane="0" via=":KR27_21_0" dir="L" state="m"/>
    <connection from=":KR27_21" to="3_e_0" fromLane="0" toLane="0" dir="L" state="M"/>
    <connection from=":KR27_3" to="2_e_0" fromLane="0" toLane="1" via=":KR27_22_0" dir="l" state="m"/>
    <connection from=":KR27_22" to="2_e_0" fromLane="0" toLane="1" dir="l" state="M"/>
    <connection from=":KR27_4" to="1_e_0" fromLane="0" toLane="0" dir="t" state="M"/>
    <connection from=":KR27_5" to="gneE13" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_6" to="1_e_0" fromLane="0" toLane="0" via=":KR27_23_0" dir="r" state="m"/>
    <connection from=":KR27_23" to="1_e_0" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":KR27_7" to="4_e_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_7" to="4_e_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":KR27_9" to="3_e_0" fromLane="0" toLane="0" via=":KR27_24_0" dir="l" state="m"/>
    <connection from=":KR27_24" to="3_e_0" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":KR27_10" to="gneE10" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_11" to="2_e_0" fromLane="0" toLane="0" via=":KR27_25_0" dir="r" state="m"/>
    <connection from=":KR27_25" to="2_e_0" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":KR27_12" to="1_e_0" fromLane="0" toLane="0" via=":KR27_26_0" dir="R" state="m"/>
    <connection from=":KR27_26" to="1_e_0" fromLane="0" toLane="0" dir="R" state="M"/>
    <connection from=":KR27_13" to="4_e_0" fromLane="0" toLane="1" via=":KR27_27_0" dir="L" state="m"/>
    <connection from=":KR27_27" to="4_e_0" fromLane="0" toLane="1" dir="L" state="M"/>
    <connection from=":KR27_14" to="3_e_0" fromLane="0" toLane="0" dir="R" state="M"/>
    <connection from=":KR27_15" to="gneE12" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_16" to="3_e_0" fromLane="0" toLane="0" via=":KR27_28_0" dir="r" state="m"/>
    <connection from=":KR27_28" to="3_e_0" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":KR27_17" to="2_e_0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_17" to="2_e_0" fromLane="1" toLane="1" dir="s" state="M"/>
    <connection from=":KR27_19" to="1_e_0" fromLane="0" toLane="0" via=":KR27_29_0" dir="l" state="m"/>
    <connection from=":KR27_29" to="1_e_0" fromLane="0" toLane="0" dir="l" state="M"/>

    <connection from=":2_c_2_w0" to="gneE9" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE10" to=":2_c_2_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":3_c_1_w0" to="gneE11" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE12" to=":3_c_1_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_1_w0" to="gneE16" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE15" to=":4_c_1_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":4_c_2_w0" to="gneE14" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE13" to=":4_c_2_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c0" to=":KR27_w4" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c1" to=":KR27_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c2" to=":KR27_w5" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c3" to=":KR27_w1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c4" to=":KR27_w6" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_c5" to=":KR27_w2" fromLane="0" toLane="0" tl="KR27" linkIndex="22" dir="s" state="M"/>
    <connection from=":KR27_c6" to=":KR27_w7" fromLane="0" toLane="0" tl="KR27" linkIndex="23" dir="s" state="M"/>
    <connection from=":KR27_c7" to=":KR27_w3" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_w0" to=":KR27_c0" fromLane="0" toLane="0" tl="KR27" linkIndex="29" dir="s" state="M"/>
    <connection from=":KR27_w0" to="gneE13" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE14" to=":KR27_w0" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_w1" to=":KR27_c2" fromLane="0" toLane="0" tl="KR27" linkIndex="31" dir="s" state="M"/>
    <connection from=":KR27_w1" to="gneE10" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE9" to=":KR27_w1" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_w2" to=":KR27_c4" fromLane="0" toLane="0" tl="KR27" linkIndex="33" dir="s" state="M"/>
    <connection from=":KR27_w2" to="gneE12" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE11" to=":KR27_w2" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_w3" to=":KR27_c6" fromLane="0" toLane="0" tl="KR27" linkIndex="23" dir="s" state="M"/>
    <connection from=":KR27_w3" to="gneE15" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from="gneE16" to=":KR27_w3" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":KR27_w4" to=":KR27_c7" fromLane="0" toLane="0" tl="KR27" linkIndex="36" dir="s" state="M"/>
    <connection from=":KR27_w5" to=":KR27_c1" fromLane="0" toLane="0" tl="KR27" linkIndex="30" dir="s" state="M"/>
    <connection from=":KR27_w6" to=":KR27_c3" fromLane="0" toLane="0" tl="KR27" linkIndex="32" dir="s" state="M"/>
    <connection from=":KR27_w7" to=":KR27_c5" fromLane="0" toLane="0" tl="KR27" linkIndex="22" dir="s" state="M"/>
</net>
<viewsettings>
    <scheme name="custom_2">
        <opengl dither="0"/>
        <background backgroundColor="white" showGrid="0" gridXSize="100.00" gridYSize="100.00"/>
        <edges laneEdgeMode="2" scaleMode="0" laneShowBorders="1" showBikeMarkings="1" showLinkDecals="1" showLinkRules="1" showRails="1" hideConnectors="0" widthExaggeration="1.00" minSize="0.00" showDirection="0" showSublanes="1" spreadSuperposed="0"
                edgeName_show="0" edgeName_size="50.00" edgeName_color="orange" edgeName_constantSize="1"
                internalEdgeName_show="0" internalEdgeName_size="40.00" internalEdgeName_color="128,64,0" internalEdgeName_constantSize="1"
                cwaEdgeName_show="0" cwaEdgeName_size="50.00" cwaEdgeName_color="magenta" cwaEdgeName_constantSize="1"
                streetName_show="0" streetName_size="55.00" streetName_color="yellow" streetName_constantSize="1">
            <colorScheme name="uniform">
                <entry color="black" name="road"/>
                <entry color="grey" name="sidewalk"/>
                <entry color="192,66,44" name="bike lane"/>
                <entry color="0,0,0,0" name="green verge"/>
                <entry color="150,200,200" name="waterway"/>
                <entry color="92,92,92" name="no passenger"/>
                <entry color="red" name="closed"/>
                <entry color="green" name="connector"/>
            </colorScheme>
            <colorScheme name="by selection (lane-/streetwise)">
                <entry color="grey" name="unselected"/>
                <entry color="0,80,180" name="selected"/>
            </colorScheme>
            <colorScheme name="by permission code" interpolated="0">
                <entry color="240,240,240" threshold="0.00" name="nobody"/>
                <entry color="10,10,10" threshold="32.00" name="passenger"/>
                <entry color="166,147,26" threshold="128.00" name="taxi"/>
                <entry color="40,100,40" threshold="256.00" name="bus"/>
                <entry color="192,66,44" threshold="524288.00"/>
                <entry color="192,66,44" threshold="1572864.00" name="bicycle"/>
                <entry color="150,200,200" threshold="4194304.00" name="waterway"/>
                <entry color="255,206,0" threshold="27402239.00" name="motorway"/>
                <entry color="black" threshold="28188671.00" name="disallow_pedestrian"/>
                <entry color="black" threshold="29237247.00" name="normal_road"/>
                <entry color="green" threshold="33554431.00" name="all"/>
            </colorScheme>
            <colorScheme name="by allowed speed (lanewise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by current occupancy (lanewise, brutto)" interpolated="1">
                <entry color="235,235,235" threshold="0.00"/>
                <entry color="green" threshold="0.25"/>
                <entry color="yellow" threshold="0.50"/>
                <entry color="orange" threshold="0.75"/>
                <entry color="red" threshold="1.00"/>
            </colorScheme>
            <colorScheme name="by current occupancy (lanewise, netto)" interpolated="1">
                <entry color="235,235,235" threshold="0.00"/>
                <entry color="green" threshold="0.25"/>
                <entry color="yellow" threshold="0.50"/>
                <entry color="orange" threshold="0.75"/>
                <entry color="red" threshold="1.00"/>
            </colorScheme>
            <colorScheme name="by first vehicle waiting time (lanewise)" interpolated="1">
                <entry color="235,235,235" threshold="0.00"/>
                <entry color="cyan" threshold="30.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="yellow" threshold="200.00"/>
                <entry color="red" threshold="300.00"/>
            </colorScheme>
            <colorScheme name="by lane number (streetwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="blue" threshold="5.00"/>
            </colorScheme>
            <colorScheme name="by CO2 emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.27"/>
            </colorScheme>
            <colorScheme name="by CO emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.00"/>
            </colorScheme>
            <colorScheme name="by PMx emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.00"/>
            </colorScheme>
            <colorScheme name="by NOx emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.00"/>
            </colorScheme>
            <colorScheme name="by HC emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.00"/>
            </colorScheme>
            <colorScheme name="by fuel consumption" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.07"/>
            </colorScheme>
            <colorScheme name="by noise emissions (Harmonoise)" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by global travel time" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by global speed percentage" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="50.00"/>
                <entry color="green" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by given length/geometrical length" interpolated="1">
                <entry color="black" threshold="0.00"/>
                <entry color="red" threshold="0.25"/>
                <entry color="yellow" threshold="0.50"/>
                <entry color="179,179,179" threshold="1.00"/>
                <entry color="green" threshold="2.00"/>
                <entry color="blue" threshold="4.00"/>
            </colorScheme>
            <colorScheme name="by angle">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="by loaded weight" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by priority" interpolated="1">
                <entry color="red" threshold="-20.00"/>
                <entry color="yellow" threshold="0.00"/>
                <entry color="green" threshold="20.00"/>
            </colorScheme>
            <colorScheme name="by height at start" interpolated="1">
                <entry color="blue" threshold="-10.00"/>
                <entry color="grey" threshold="0.00"/>
                <entry color="red" threshold="10.00"/>
                <entry color="yellow" threshold="50.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="magenta" threshold="200.00"/>
            </colorScheme>
            <colorScheme name="by height at geometry-segment start" interpolated="1">
                <entry color="blue" threshold="-10.00"/>
                <entry color="grey" threshold="0.00"/>
                <entry color="red" threshold="10.00"/>
                <entry color="yellow" threshold="50.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="magenta" threshold="200.00"/>
            </colorScheme>
            <colorScheme name="by inclination" interpolated="1">
                <entry color="blue" threshold="-0.30"/>
                <entry color="green" threshold="-0.10"/>
                <entry color="grey" threshold="0.00"/>
                <entry color="yellow" threshold="0.10"/>
                <entry color="red" threshold="0.30"/>
            </colorScheme>
            <colorScheme name="by geometry-segment inclination" interpolated="1">
                <entry color="blue" threshold="-0.30"/>
                <entry color="green" threshold="-0.10"/>
                <entry color="grey" threshold="0.00"/>
                <entry color="yellow" threshold="0.10"/>
                <entry color="red" threshold="0.30"/>
            </colorScheme>
            <colorScheme name="by average speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by average relative speed " interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="0.25"/>
                <entry color="green" threshold="0.50"/>
                <entry color="cyan" threshold="0.75"/>
                <entry color="blue" threshold="1.00"/>
                <entry color="magenta" threshold="1.25"/>
            </colorScheme>
            <colorScheme name="by routing device assumed speed " interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by electricity consumption" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.03"/>
            </colorScheme>
            <colorScheme name="by insertion-backlog (streetwise)" interpolated="1">
                <entry color="204,204,204" threshold="0.00"/>
                <entry color="green" threshold="1.00"/>
                <entry color="yellow" threshold="10.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <scalingScheme name="default">
                <entry color="1.00" name="uniform"/>
            </scalingScheme>
            <scalingScheme name="by selection (lane-/streetwise)">
                <entry color="0.50" name="unselected"/>
                <entry color="5.00" name="selected"/>
            </scalingScheme>
            <scalingScheme name="by allowed speed (lanewise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="41.67"/>
            </scalingScheme>
            <scalingScheme name="by current occupancy (lanewise, brutto)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.95"/>
            </scalingScheme>
            <scalingScheme name="by current occupancy (lanewise, netto)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.95"/>
            </scalingScheme>
            <scalingScheme name="by first vehicle waiting time (lanewise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="300.00"/>
            </scalingScheme>
            <scalingScheme name="by lane number (streetwise)" interpolated="1">
                <entry color="1.00" threshold="0.00"/>
                <entry color="10.00" threshold="5.00"/>
            </scalingScheme>
            <scalingScheme name="by CO2 emissions" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.27"/>
            </scalingScheme>
            <scalingScheme name="by CO emissions" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.00"/>
            </scalingScheme>
            <scalingScheme name="by PMx emissions" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.00"/>
            </scalingScheme>
            <scalingScheme name="by NOx emissions" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.00"/>
            </scalingScheme>
            <scalingScheme name="by HC emissions" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.00"/>
            </scalingScheme>
            <scalingScheme name="by fuel consumption" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.07"/>
            </scalingScheme>
            <scalingScheme name="by noise emissions (Harmonoise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="100.00"/>
            </scalingScheme>
            <scalingScheme name="by global travel time" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="100.00"/>
            </scalingScheme>
            <scalingScheme name="by global speed percentage" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="100.00"/>
            </scalingScheme>
            <scalingScheme name="by given length/geometrical length" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="10.00"/>
            </scalingScheme>
            <scalingScheme name="by loaded weight" interpolated="1">
                <entry color="-1000.00" threshold="-1000.00"/>
                <entry color="0.00" threshold="0.00"/>
                <entry color="1000.00" threshold="1000.00"/>
            </scalingScheme>
            <scalingScheme name="by priority" interpolated="1">
                <entry color="0.50" threshold="-20.00"/>
                <entry color="1.00" threshold="0.00"/>
                <entry color="5.00" threshold="20.00"/>
            </scalingScheme>
            <scalingScheme name="by average speed" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="41.67"/>
            </scalingScheme>
            <scalingScheme name="by average relative speed" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="0.50" threshold="0.50"/>
                <entry color="2.00" threshold="1.00"/>
                <entry color="10.00" threshold="2.00"/>
            </scalingScheme>
            <scalingScheme name="by electricity consumption" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.03"/>
            </scalingScheme>
            <scalingScheme name="by insertion-backlog (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="1.00" threshold="1.00"/>
                <entry color="10.00" threshold="10.00"/>
                <entry color="50.00" threshold="100.00"/>
            </scalingScheme>
            <colorScheme name="uniform">
                <entry color="0,0,0,0"/>
            </colorScheme>
            <colorScheme name="by selection (streetwise)">
                <entry color="grey" name="unselected"/>
                <entry color="0,80,180" name="selected"/>
            </colorScheme>
            <colorScheme name="by purpose (streetwise)">
                <entry color="0,0,0,0" name="normal"/>
                <entry color="128,0,128" name="connector"/>
                <entry color="blue" name="internal"/>
            </colorScheme>
            <colorScheme name="by allowed speed (streetwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by current occupancy (streetwise, brutto)" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="red" threshold="0.95"/>
            </colorScheme>
            <colorScheme name="by current speed (streetwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by current flow (streetwise)" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="red" threshold="5000.00"/>
            </colorScheme>
            <colorScheme name="by relative speed (streetwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="0.25"/>
                <entry color="green" threshold="0.50"/>
                <entry color="cyan" threshold="0.75"/>
                <entry color="blue" threshold="1.00"/>
                <entry color="magenta" threshold="1.25"/>
            </colorScheme>
            <colorScheme name="by routing device assumed speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by angle">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="by segments (alternating)">
                <entry color="blue" name="odd"/>
                <entry color="red" name="even"/>
            </colorScheme>
            <colorScheme name="by jammed state (segmentwise)">
                <entry color="green" name="free"/>
                <entry color="red" name="jammed"/>
            </colorScheme>
            <colorScheme name="by current occupancy (segmentwise, brutto)" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="red" threshold="0.95"/>
            </colorScheme>
            <colorScheme name="by current speed (segmentwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by current flow (segmentwise)" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="red" threshold="5000.00"/>
            </colorScheme>
            <colorScheme name="by relative speed (segmentwise)" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="0.25"/>
                <entry color="green" threshold="0.50"/>
                <entry color="cyan" threshold="0.75"/>
                <entry color="blue" threshold="1.00"/>
                <entry color="magenta" threshold="1.25"/>
            </colorScheme>
            <colorScheme name="by insertion-backlog (streetwise)" interpolated="1">
                <entry color="grey" threshold="0.00"/>
                <entry color="green" threshold="1.00"/>
                <entry color="yellow" threshold="10.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <scalingScheme name="uniform">
                <entry color="1.00"/>
            </scalingScheme>
            <scalingScheme name="by selection (streetwise)">
                <entry color="0.50" name="unselected"/>
                <entry color="5.00" name="selected"/>
            </scalingScheme>
            <scalingScheme name="by allowed speed (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="41.67"/>
            </scalingScheme>
            <scalingScheme name="by current occupancy (streetwise, brutto)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="0.95"/>
            </scalingScheme>
            <scalingScheme name="by current speed (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="10.00" threshold="41.67"/>
            </scalingScheme>
            <scalingScheme name="by current flow (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="20.00" threshold="5000.00"/>
            </scalingScheme>
            <scalingScheme name="by relative speed (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="20.00" threshold="1.00"/>
            </scalingScheme>
            <scalingScheme name="by insertion-backlog (streetwise)" interpolated="1">
                <entry color="0.00" threshold="0.00"/>
                <entry color="1.00" threshold="1.00"/>
                <entry color="10.00" threshold="10.00"/>
                <entry color="50.00" threshold="100.00"/>
            </scalingScheme>
        </edges>
        <vehicles vehicleMode="0" vehicleQuality="0" vehicle_minSize="1.00" vehicle_exaggeration="1.00" vehicle_constantSize="0" showBlinker="1"
                  vehicleName_show="0" vehicleName_size="50.00" vehicleName_color="204,153,0" vehicleName_constantSize="1">
            <colorScheme name="given vehicle/type/route color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="uniform">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned vehicle color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned type color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned route color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="depart position as HSV">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="arrival position as HSV">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="direction/distance as HSV">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="by speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by action step" interpolated="1">
                <entry color="grey" threshold="0.00"/>
                <entry color="green" threshold="1.00"/>
                <entry color="80,160,80" threshold="2.00"/>
            </colorScheme>
            <colorScheme name="by waiting time" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="30.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="yellow" threshold="200.00"/>
                <entry color="red" threshold="300.00"/>
            </colorScheme>
            <colorScheme name="by accumulated waiting time" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="25.00"/>
                <entry color="green" threshold="50.00"/>
                <entry color="yellow" threshold="75.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by time since lane change" interpolated="1">
                <entry color="189,189,179" threshold="-180.00"/>
                <entry color="yellow" threshold="-20.00"/>
                <entry color="red" threshold="-0.00"/>
                <entry color="179,179,179" threshold="0.00" name="0"/>
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="20.00"/>
                <entry color="179,189,189" threshold="180.00"/>
            </colorScheme>
            <colorScheme name="by max speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="8.33"/>
                <entry color="green" threshold="15.28"/>
                <entry color="cyan" threshold="22.22"/>
                <entry color="blue" threshold="33.33"/>
                <entry color="magenta" threshold="41.67"/>
            </colorScheme>
            <colorScheme name="by CO2 emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="5.00"/>
            </colorScheme>
            <colorScheme name="by CO emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.05"/>
            </colorScheme>
            <colorScheme name="by PMx emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.01"/>
            </colorScheme>
            <colorScheme name="by NOx emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.12"/>
            </colorScheme>
            <colorScheme name="by HC emissions" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.02"/>
            </colorScheme>
            <colorScheme name="by fuel consumption" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="0.01"/>
            </colorScheme>
            <colorScheme name="by noise emissions (Harmonoise)" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="100.00"/>
            </colorScheme>
            <colorScheme name="by reroute number" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="1.00"/>
                <entry color="white" threshold="10.00"/>
            </colorScheme>
            <colorScheme name="by selection">
                <entry color="179,179,179" name="unselected"/>
                <entry color="0,102,204" name="selected"/>
            </colorScheme>
            <colorScheme name="by offset from best lane" interpolated="1">
                <entry color="red" threshold="-3.00" name="-3"/>
                <entry color="yellow" threshold="-1.00" name="-1"/>
                <entry color="179,179,179" threshold="0.00" name="0"/>
                <entry color="cyan" threshold="1.00" name="1"/>
                <entry color="blue" threshold="3.00" name="3"/>
            </colorScheme>
            <colorScheme name="by acceleration" interpolated="1">
                <entry color="64,0,0" threshold="-9.00"/>
                <entry color="red" threshold="-4.50"/>
                <entry color="yellow" threshold="-0.10"/>
                <entry color="179,179,179" threshold="0.00" name="0"/>
                <entry color="cyan" threshold="0.10"/>
                <entry color="blue" threshold="2.60"/>
                <entry color="magenta" threshold="5.20"/>
            </colorScheme>
            <colorScheme name="by time gap on lane" interpolated="1">
                <entry color="179,179,179" threshold="-1.00"/>
                <entry color="yellow" threshold="0.00" name="0"/>
                <entry color="cyan" threshold="1.00"/>
                <entry color="blue" threshold="2.00"/>
            </colorScheme>
            <colorScheme name="by depart delay" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="30.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="yellow" threshold="200.00"/>
                <entry color="red" threshold="300.00"/>
            </colorScheme>
            <colorScheme name="by electricity consumption" interpolated="1">
                <entry color="green" threshold="0.00"/>
                <entry color="red" threshold="5.00"/>
            </colorScheme>
            <colorScheme name="by time loss" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="10.00"/>
                <entry color="green" threshold="60.00"/>
                <entry color="yellow" threshold="180.00"/>
                <entry color="red" threshold="900.00"/>
            </colorScheme>
            <colorScheme name="random">
                <entry color="yellow"/>
            </colorScheme>
        </vehicles>
        <persons personMode="0" personQuality="0" person_minSize="1.00" person_exaggeration="1.00" person_constantSize="0"
                 personName_show="0" personName_size="50.00" personName_color="0,153,204" personName_constantSize="1">
            <colorScheme name="given person/type color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="uniform">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned person color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned type color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="by speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="0.69"/>
                <entry color="green" threshold="1.39"/>
                <entry color="blue" threshold="2.78"/>
            </colorScheme>
            <colorScheme name="by mode" interpolated="1">
                <entry color="yellow" threshold="0.00"/>
                <entry color="blue" threshold="1.00"/>
                <entry color="red" threshold="2.00"/>
                <entry color="green" threshold="3.00"/>
            </colorScheme>
            <colorScheme name="by waiting time" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="30.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="yellow" threshold="200.00"/>
                <entry color="red" threshold="300.00"/>
            </colorScheme>
            <colorScheme name="by selection">
                <entry color="179,179,179" name="unselected"/>
                <entry color="0,102,204" name="selected"/>
            </colorScheme>
            <colorScheme name="by angle">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="random">
                <entry color="yellow"/>
            </colorScheme>
        </persons>
        <containers containerMode="0" containerQuality="0" container_minSize="1.00" container_exaggeration="1.00" container_constantSize="0"
                 containerName_show="0" containerName_size="50.00" containerName_color="0,153,204" containerName_constantSize="1">
            <colorScheme name="given person/type color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="uniform">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned person color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="given/assigned type color">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="by speed" interpolated="1">
                <entry color="red" threshold="0.00"/>
                <entry color="yellow" threshold="0.69"/>
                <entry color="green" threshold="1.39"/>
                <entry color="blue" threshold="2.78"/>
            </colorScheme>
            <colorScheme name="by mode" interpolated="1">
                <entry color="yellow" threshold="0.00"/>
                <entry color="blue" threshold="1.00"/>
                <entry color="red" threshold="2.00"/>
                <entry color="green" threshold="3.00"/>
            </colorScheme>
            <colorScheme name="by waiting time" interpolated="1">
                <entry color="blue" threshold="0.00"/>
                <entry color="cyan" threshold="30.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="yellow" threshold="200.00"/>
                <entry color="red" threshold="300.00"/>
            </colorScheme>
            <colorScheme name="by selection">
                <entry color="179,179,179" name="unselected"/>
                <entry color="0,102,204" name="selected"/>
            </colorScheme>
            <colorScheme name="by angle">
                <entry color="yellow"/>
            </colorScheme>
            <colorScheme name="random">
                <entry color="yellow"/>
            </colorScheme>
        </containers>
        <junctions junctionMode="0"
                   drawLinkTLIndex_show="0" drawLinkTLIndex_size="50.00" drawLinkTLIndex_color="128,128,255" drawLinkTLIndex_constantSize="1"
                   drawLinkJunctionIndex_show="0" drawLinkJunctionIndex_size="50.00" drawLinkJunctionIndex_color="128,128,255" drawLinkJunctionIndex_constantSize="1"
                   junctionName_show="0" junctionName_size="50.00" junctionName_color="0,255,128" junctionName_constantSize="1"
                   internalJunctionName_show="0" internalJunctionName_size="50.00" internalJunctionName_color="0,204,128" internalJunctionName_constantSize="1"
                   showLane2Lane="0" drawShape="1" drawCrossingsAndWalkingareas="1" junction_minSize="1.00" junction_exaggeration="1.00" junction_constantSize="0">
            <colorScheme name="uniform">
                <entry color="black"/>
                <entry color="150,200,200" name="waterway"/>
            </colorScheme>
            <colorScheme name="by selection">
                <entry color="grey" name="unselected"/>
                <entry color="0,80,180" name="selected"/>
            </colorScheme>
            <colorScheme name="by type">
                <entry color="green" name="traffic_light"/>
                <entry color="0,128,0" name="traffic_light_unregulated"/>
                <entry color="yellow" name="priority"/>
                <entry color="red" name="priority_stop"/>
                <entry color="blue" name="right_before_left"/>
                <entry color="cyan" name="allway_stop"/>
                <entry color="grey" name="district"/>
                <entry color="magenta" name="unregulated"/>
                <entry color="black" name="dead_end"/>
                <entry color="orange" name="rail_signal"/>
                <entry color="192,128,64" name="zipper"/>
                <entry color="192,255,192" name="traffic_light_right_on_red"/>
                <entry color="128,0,128" name="rail_crossing"/>
            </colorScheme>
            <colorScheme name="by height" interpolated="1">
                <entry color="blue" threshold="-10.00"/>
                <entry color="grey" threshold="0.00"/>
                <entry color="red" threshold="10.00"/>
                <entry color="yellow" threshold="50.00"/>
                <entry color="green" threshold="100.00"/>
                <entry color="magenta" threshold="200.00"/>
            </colorScheme>
        </junctions>
        <additionals addMode="0" add_minSize="1.00" add_exaggeration="1.00" add_constantSize="0" addName_show="0" addName_size="50.00" addName_color="255,0,128" addName_constantSize="1" addFullName_show="0" addFullName_size="50.00" addFullName_color="255,0,128" addFullName_constantSize="1"/>
        <pois poi_minSize="0.00" poi_exaggeration="1.00" poi_constantSize="0" poiName_show="0" poiName_size="50.00" poiName_color="255,0,128" poiName_constantSize="1" poiType_show="0" poiType_size="50.00" poiType_color="255,0,128" poiType_constantSize="1"/>
        <polys poly_minSize="0.00" poly_exaggeration="1.00" poly_constantSize="0" polyName_show="0" polyName_size="50.00" polyName_color="255,0,128" polyName_constantSize="1" polyType_show="0" polyType_size="50.00" polyType_color="255,0,128" polyType_constantSize="1"/>
        <legend showSizeLegend="1"/>
    </scheme>
</viewsettings>

Back to the top
