| Re: [sumo-user] Combining Edges Using NetConvert |

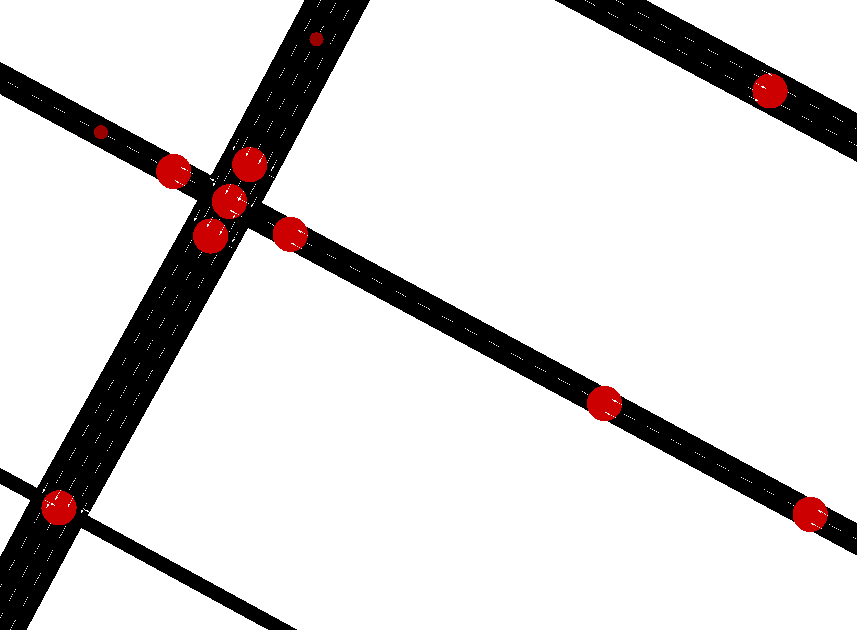

Hello all, Sorry, I made a mistake in my previous email. I have removed any edges which don’t allow the vType ‘private’, however, there are now a bunch of junctions in the middle of the road segment (on straight road segments). Also, at other turning points there are sometimes many junctions which separate edges. Is there a way to remove these? Attached is an example of this. Jonathan From: Jonathan Harper Hello all, I’m currently building a small network from OSM -> .net.xml through NetConvert. I’m attempting to find the average congestion on a given road segment, however, I have ran into a minor issue. I was wondering if there was a way to combine the edges between junctions, so that edges which are connected from junction A to B are counted as a single edge (rather than being split up which is currently happening). Further to this, is it possible to define a maximum length of an edge? Given that the distance between junction A and B is say 100m, and we define the maximum edge length to be 60m, would it be possible to automatically generate 2 edges between these junctions of lengths 60m and 40m? Kind regards, Jonathan
|
Attachment:
Description: PNG image
