[sumo-user] How To automatically set the shape of a junction?

[Lawrence Soon via sumo-user <sumo-user@xxxxxxxxxxxxxxxxxxxxx>]

Hi All,


After using the commend --junction.join-dist 20 , i realized that the shape of the junction is not properly set, as shown below:

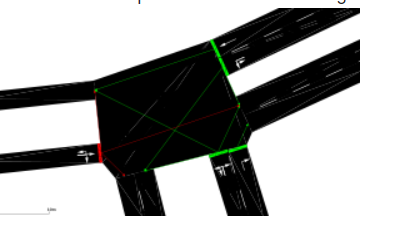

In SUMO:

[cid:51c43914-75f6-4c69-bea1-cfe071fbe4f8]

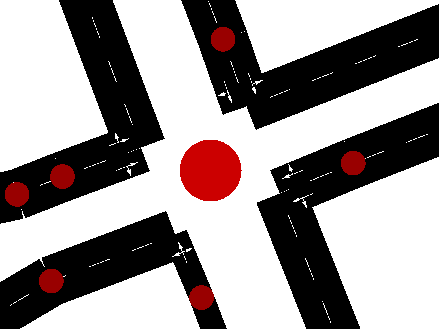

In Netedit

[cid:ce2427ef-62d8-4add-b17b-da671dad7151]

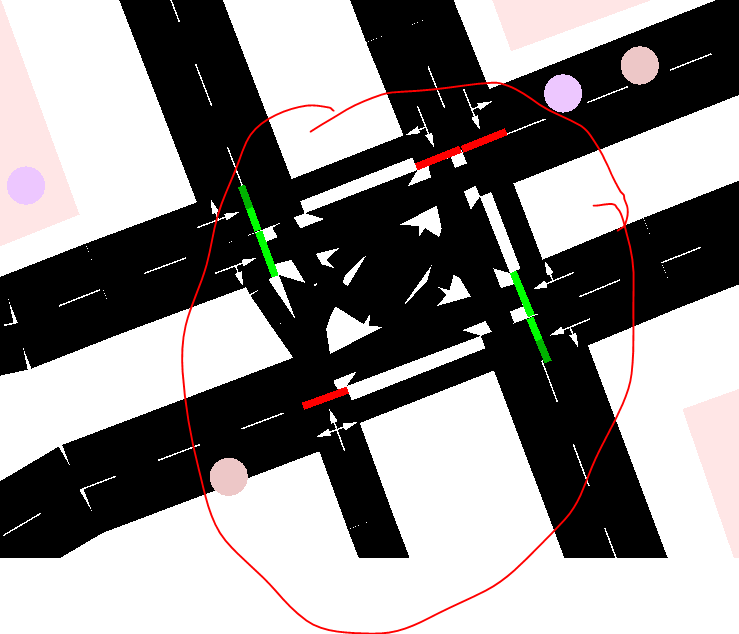

Is there a way to set the shape of junction so that it looks nicely as in below?

[cid:3e16bf64-45f2-42f4-a898-308c500bfa73]






Thanks and have a great day!

Best Regards,
Lawrence

------------------------------------------------------------------------------
