Re: [papyrus-rt-dev] First 0.9.0 bug (maybe)

[Peter Cigéhn <peter.cigehn@xxxxxxxxx>]

Hi,

Have anyone really provided some good instructions for *how* Papyrus-RT is going to be installed manually directly from p2 update sites? Since you basically you need to perform all the steps automatically done by the Oomph setup file, but instead do it manually, there are lots of steps that I assume needs to be done.

Regarding this about having to install EMF Compare and Papyrus Designer prior to installing Papyrus-RT, isn't that more about that you must have added these repos to the list of avialable repos, prior to installing Papyrus-RT, to ensure that the needed bundles from those repos can be installed? This is the same as that we provide a list of p2 repos in the Oomph setup file.

Regarding the issue with the missing Papyrus perspective, that has been raised in bug 494931. Since none of the Papyrus-RT features/bundles have a direct dependency to any of the top level bundles in Papyrus, e.g. the bundle that registers the Papyrus perspective, you need to explicitly install Papyrus as you have concluded. This is also exactly what we do in the Oomph setup file as well. I don't think we ever have meant any of the Papyrus-RT features to be completely "self contained", and we have assumed that you need to install Papyrus-RT on top of Papyrus. All of this could of course be discussed, but so far it has (to my knowledge) never been assumed that Papyrus-RT should be "self contained".

And as Asma already have pointed out, this issue with the missing Papyrus-RT specific diagrams is highly probable due to the UML-RT viewpoint is not activated automatically, you have to enable it manually if you install manually. The Oomph setup file and the RCP explicitly sets the needed preference, but when installing in this way you need to do it manually. This is tracked by bug 478298 and hopefully this will be solved by the new architecture and viewpoint framework in Oxygen.

I think that the core issue here, is that we lack good instructions of how the manual installation directly from the p2 updates sites really shall be made. But then on the other hand, how much effort should be spend on providing those detailed instructions? The problem I see is that we need to maintain both the Oomph setup file *and* a detailed user guide, and we need to ensure that both are kept synchronized... Maybe it is worth the effort, but do we know how many is really installing manually directly from p2 repos anyway?

/Peter Cigéhn

On 27 March 2017 at 00:17, SMAOUI Asma <Asma.SMAOUI@xxxxxx> wrote:

I think that the missing diagrams issue is due to the non activation of the UML RT viewpoint, we used to activate the papyrus rt viewpoint via the préférences: viewpoint configuration --> deployed from extension point.



Asma

---

De : papyrus-rt-dev-bounces@eclipse.org [papyrus-rt-dev-bounces@eclipse.org] de la part de Ernesto Posse [eposse@xxxxxxxxxxxxx]
Envoyé : vendredi 24 mars 2017 22:23
À : papyrus-rt developer discussions
Objet : [papyrus-rt-dev] First 0.9.0 bug (maybe)

It looks like there is an issue when installing Papyrus-RT from the update site. This is not a problem when using the installer or the RCP.

If installing from the update site, first, you have to manually install EMF Compare from http://download.eclipse.org/modeling/emf/compare/updates/logical/emf.compare/integration/ and Papyrus Designer from http://download.eclipse.org/modeling/mdt/papyrus/components/designer/1.0.1_papyrus-designer-neon_133/.

This allows you to install Papyrus-RT, bringing in the Papyrus dependencies, *except* the Papyrus perspective. So you have to manually install Papyrus as well from http://download.eclipse.org/modeling/mdt/papyrus/updates/milestones/2.0/.

Once you have all there there is still a problem: no Papyrus-RT-specific diagrams!

Missing capsule diagram in the Model Explorer:

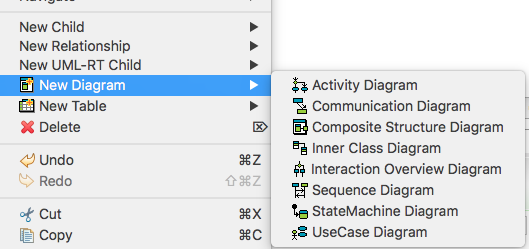

... and in the "New Diagram" context menu:

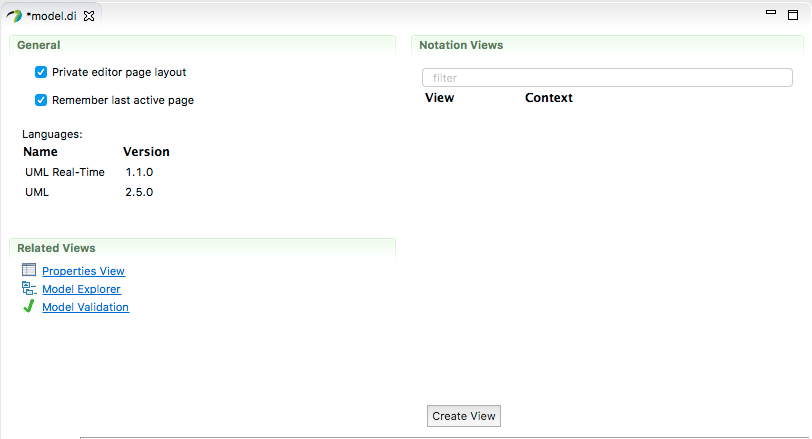

... and in the "Welcome" view.

Is this capability from some feature in Papyrus Extras perhaps?

--

Ernesto Posse

Zeligsoft

--

Ernesto Posse

Zeligsoft
