Hi everyone,

 I would like to have you opinion on a matter which impacts the DeleteFromDiagramCommandHandler.

 For the moment the implementation of this handler prevents to delete an edge which have for source and target canonical element.  I have to admit I don’t see any use case which it should be prevented.

 See in org.eclipse.papyrus.diagram.common.handlers.DeleteFromDiagramCommandHandler.isCanonical(List<IGraphicalEditPart>):



                                                           ….

            isCanonical = (!connection.isSemanticConnection() || (isCanonical(connection.getSource()) && isCanonical(connection.getTarget())));

                                                           ….



 I would like to know if it was a desired behaviour because this behaviour prevents me to delete in the activity diagram Object Flow.

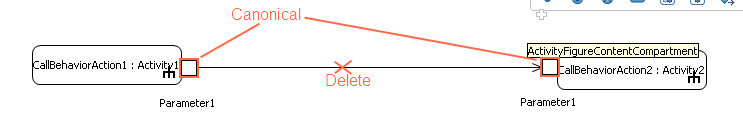

 You can see the following use case:



I think in this case the Object Flow should be deleted (and/or hidden) so I would like to withdraw this condition. However don’t want to break any desired behaviour.

Does someone know any reason to keep this behaviour?



Regards





Arthur Daussy Atos Origin Intégration 6 impasse Alice Guy BP 43045 31024 Toulouse Cedex 3 Telephone : +33 (0) 5 34 36 32 90 www.atos.net





---
