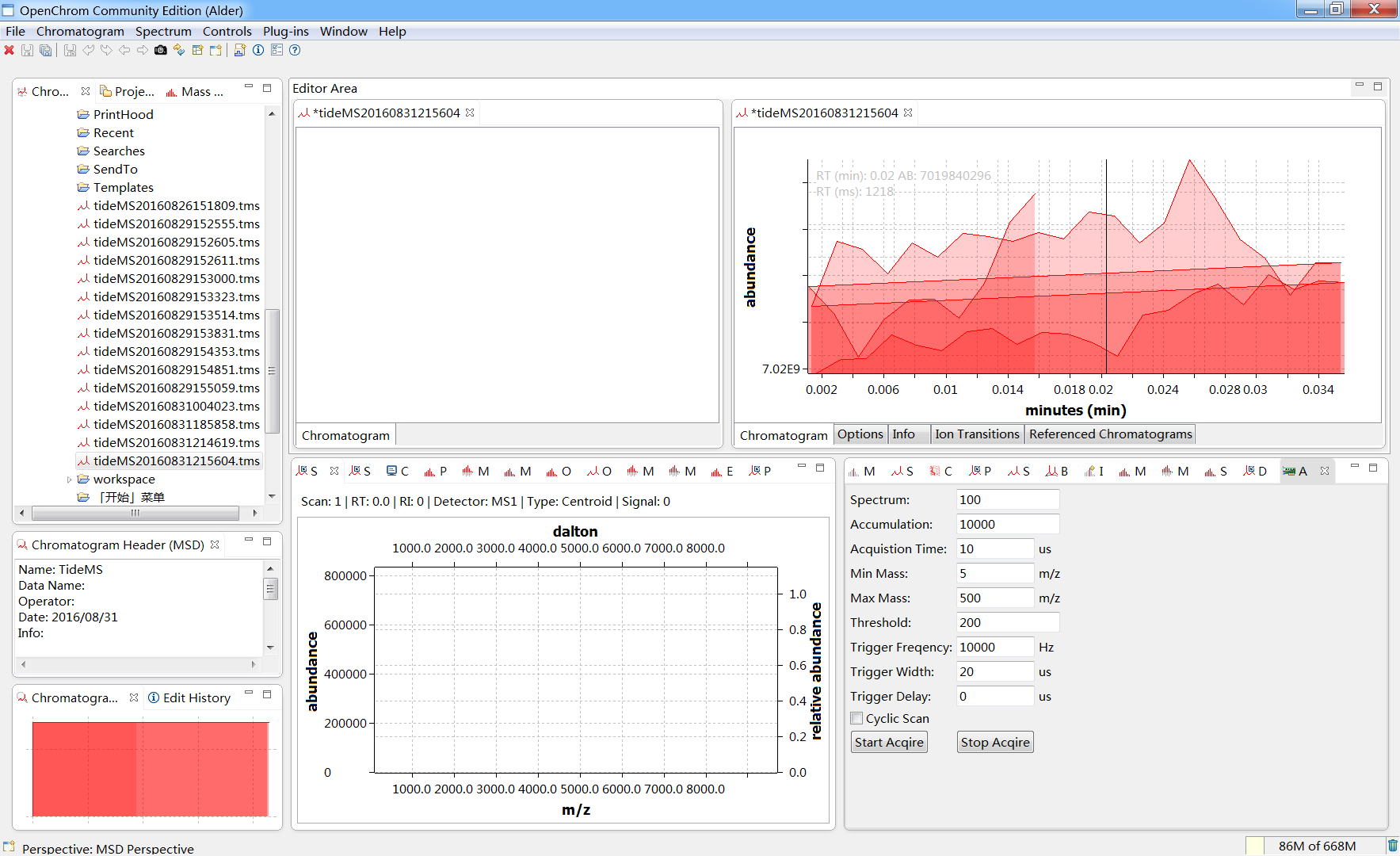

In Editor Area, the left part is create by pressing "Start Acquire" button in control pane, the right part is created by opening the file acquired and saved to disk.
There were many "Given range is invalid" errors printed in Console View:
java.lang.IllegalArgumentException: Given range is invalid
at org.swtchart.internal.axis.Axis.setRange(Axis.java:190)
at org.swtchart.internal.axis.Axis.setRange(Axis.java:156)
at org.eclipse.chemclipse.swt.ui.support.ChartUtil.checkAndSetRange(ChartUtil.java:92)
at org.eclipse.chemclipse.msd.swt.ui.components.AbstractBarSeriesUI.redraw(AbstractBarSeriesUI.java:292)
at org.eclipse.chemclipse.thirdpartylibraries.swtchart.ext.InteractiveChartExtended.handleEvent(InteractiveChartExtended.java:83)
at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:84)
It seems the problem of no acquired chromatogram displayed is caused by the "Given range is invalid" errors.
When I double clicked on the figure of right part, the chromatogram displayed as a red rectangle.
Even I right clicked on the figure and select "Reset 1:1", the rectangle stayed with no change. :(.
There were no more error printed as I right clicked or double clicked.
