| Re: [4diac-dev] 4DIAC with STM32F4 |
Hi,I typically go with the 4. option for cross compiling. For me I normally get the better results here. You need to specifiy at least the c compiler and the c++ compiler as well as an operating system. I think for now you can ignore the warning.From you rerror messages I can see that you have not specified the right C compiler. Furthermore it looks like there is no "make" installed or available. Can this bee?I hope this helps.AloisGesendet: Sonntag, 29. November 2015 um 20:47 Uhr
Von: "mazen Aounallah" <slachist@xxxxxxxxx>
An: "4diac developer discussions" <4diac-dev@xxxxxxxxxxx>
Betreff: Re: [4diac-dev] 4DIAC with STM32F4Hi again,I'm a little bit stack, I did not succeed in compiling the FORTE code. I don't know exactly which toolchain I need to specify when compiling FORTE.I usually program my stm32F4 using C but FORTE uses c++.Please tell me If I'm doing something wrong here.

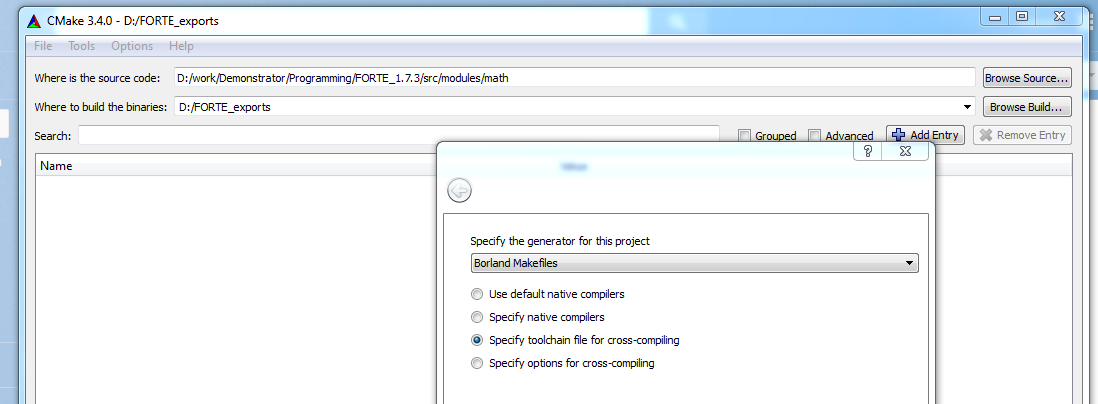

I chose the math module. for configuration I chose to specify toolchain for cross compiling but I'm not really sure which toolchain to use.I'm using this toolchain arm-none-eabi-g++.exe
Or should I choosethe fourth radio button. In that case I need to specify the os that will run the FORTE code which is FreeRTOS and the the c++ compiler. Again I'm having errors.
In both cases I got "error in configuration process, project file may be invalide"I attached the error log for the two options.
Thanks
_______________________________________________ 4diac-dev mailing list 4diac-dev@xxxxxxxxxxx To change your delivery options, retrieve your password, or unsubscribe from this list, visit https://dev.eclipse.org/mailman/listinfo/4diac-dev2015-11-21 0:33 GMT+01:00 Alois Z. <alois.zoitl@xxxxxx>:Hi,yes with the boot-files you took the wrong turn. Boot-files are configuration files read by FORTE on startup configuring the application of on FORTE instance. FOr compiling FORTE you will need the source code of FORTE.The big difference to other embedded systesm is that we normally don't generate specific source code for an application. We only generate code for the different FBs. Which you then need to compile for your FORTE. For running applications we are then configuring FORTEs. You can do this either with the download button or by generating a boot file.I think a good starting point will be the documentationfor compiling FORTE and the turorials in the doc. For the overall system configration I suggest the X+3 tutorial. The flip flop tutorials will explain how to add an own FB to FORTE.I hope this helps. Suggestions on improving our docs or very welcome!Cheers,AloisGesendet: Freitag, 20. November 2015 um 21:04 Uhr
Von: "mazen Aounallah" <slachist@xxxxxxxxx>
An: "4diac developer discussions" <4diac-dev@xxxxxxxxxxx>
Betreff: Re: [4diac-dev] 4DIAC with STM32F4_______________________________________________ 4diac-dev mailing list 4diac-dev@xxxxxxxxxxx To change your delivery options, retrieve your password, or unsubscribe from this list, visit https://dev.eclipse.org/mailman/listinfo/4diac-devDo I need another software to generate the c++ file or am I totally in the wrong direction?All I get is these three files (3 *.fboot files attached )Hi again, and thank you for your answer.I've installed 4DIAC IDE in my laptop, opened an example and tried to generate the equivalent FORTE fileThanks again
2015-11-16 13:54 GMT+01:00 Benjamin Cabé <benjamin@xxxxxxxxxxx>:Aounallah, all,This looks like an interesting project, and I think it will be important to see 4DIAC ported to many platforms.I just wanted to use your post as an opportunity to remind you, and everyone in the 4DIAC community, that the deadline to apply for the Open IoT Challenge is next week, Nov 23. You can learn more at http://iot.eclipse.org/open-iot-challenge/Note that this is the deadline to apply: you will have until February 26 to actually finish your project!I hope to see several submissions making use of 4DIAC – including yours, maybe, Aounallah :-)Benjamin –De : <4diac-dev-bounces@xxxxxxxxxxx> on behalf of mazen Aounallah <slachist@xxxxxxxxx>
Répondre à : 4diac developer discussions <4diac-dev@xxxxxxxxxxx>
Date : dimanche 15 novembre 2015 17:45
À : <4diac-dev@xxxxxxxxxxx>
Objet : [4diac-dev] 4DIAC with STM32F4_______________________________________________ 4diac-dev mailing list 4diac-dev@xxxxxxxxxxx To change your delivery options, retrieve your password, or unsubscribe from this list, visit https://dev.eclipse.org/mailman/listinfo/4diac-dev3/ Is it possible that one STM32F4 can communicate with other STM32F4s to control distributed systems?2/ Does FORTE supports protocols like UART spi and I2C ?1/ Is it possible to create PWM signal for DC motors from an STM32F4 using FORTE?Things are still not clear in my head yet and I have few questions:I understand that I need to use FORTE instead of 4DIAC and I have to use an RTOS like ecos.I'm starting this project that requires using 4DIAC with the STM32F4discovery board.Hello everyone,Any help or guiding is much appreciated.
Thanks.
--Aounallah Mazen
