That seems like quite a few objects, but you are not showing what is
holding onto them, and you will need to look at your application to
see how it is using JPA and managing the lifecycle of EntityManagers
and Entities. For instance, are you caching entities somehow? Each
entity will have a reference to its context/EntityManager when lazy
loading is involved, and each context has a reference to every
managed entity, so application caches are the usual cause of memory
leaks. Clearing the EntityManager will release the managed
entities, but the EntityManager still has internal objects cached
such as queries, expressions etc which might account for some of the
objects you see.
More information is needed if this doesn't help.
Best Regards,
Chris
On 02/10/2014 6:41 AM, Arda Orhan
wrote:
Hello everyone,
I'm trying to figure out where the memory leak problem occurs.
Due to my researches i found that
org.eclipse.persistence.internal.helper.DatabaseField class
consumes memory more and more and no any memory release. GC
doesn't work for this class. I can't share the code but i m
sharing Heap Statistics. I tried to clear EM but it doesn't
work. It still consumes memory and not releasing it back. In 2
weeks of work, Application collapse and become useless.
Is this bug or is it problem with our architecture?
Are we missing something?

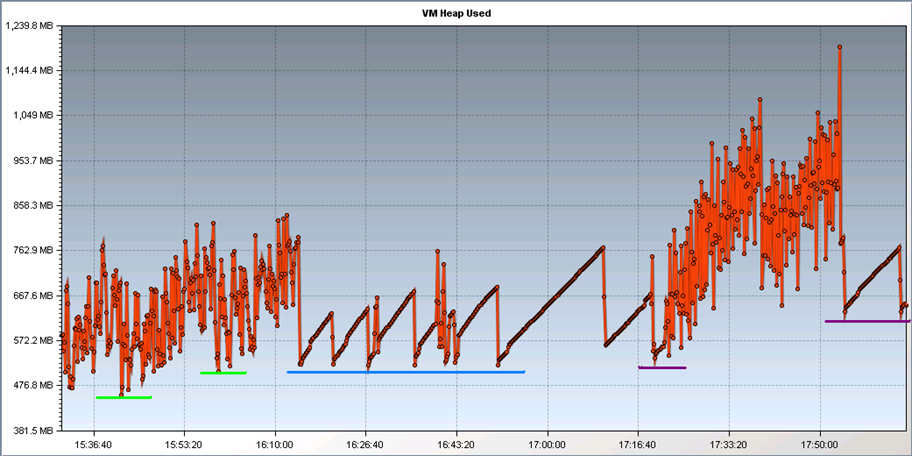

From
picture, Heap is working OK but
trend is going higher. We focus
the
test in 3 periods :
•
Green (normal load 1 user) – the scale of memory usage
going a little bit
higher.
•
Blue (idle timeout) – stop using about
1 hour, but application doesn’t release resource.
Note : the graph going up and down is normal. It came
from Diagnostics’
memory usage.
•
Purple (peak load 70 users) – memory
usage raises a lot more than normal load.
HEAP BREAKDOWN
From
Heap
Breakdown, found suspicious class : org.eclipse.persistence
From
picture,
Class
org.eclipse.persistence.internal.helper.DatabaseField
Class.org.eclipse.persistence
has memory leak problem.
HEAP BREAKDOWN CONT.
This picture is a good example of Class that
releases resource, no memory leak problem.
HEAP BREAKDOWN CONT.
