Installing the VE plugin
Required:
Download and extract the Galileo SDK. A
fast link is found at:
http://ftp.saix.net/Eclipse/eclipse/downloads/drops/R-3.5-200906111540/eclipse-SDK-3.5-win32.zip
This gives us access to the Eclipse sources. This is not
a requirement for my project but having access to the sources sure goes a long
way towards assisting in debugging efforts. It also includes the PDE core with
sources.
Required:
Install the WTP SDK. For access to the JEM
sources, If you don’t have this installed then the Installation process
will fail with and exception on JEM sources Install the WTP SDK from:
http://eclipse.unixheads.org/webtools/downloads/drops/R3.1/R-3.1-20090616035105/wtp-sdk-R-3.1-20090616035105.zip
Required:
Install the GEF/EMF SDK. I downloaded it
from here:
http://www.eclipse.org/downloads/download.php?file=/tools/gef/downloads/drops/3.5.1/R200909151220/GEF-ALL-3.5.1.zip
Required:
Install GEF. I downloaded and installed
GEF_ALL_351
Required:
Install the VE SDK from http://download.eclipse.org/tools/ve/updates/1.4/
which gives us access to the sources for VE.

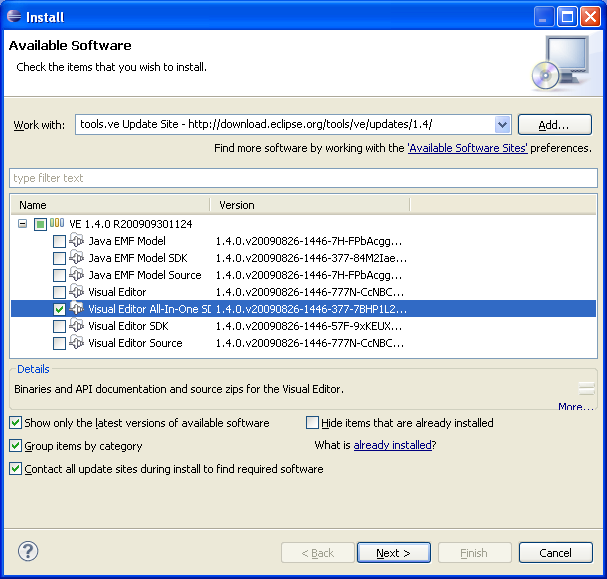

I selected the following option:

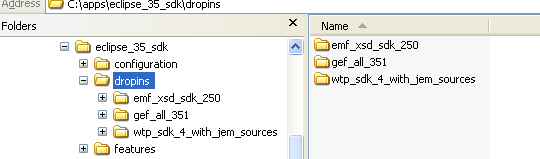

My DropIn folder looks like this:

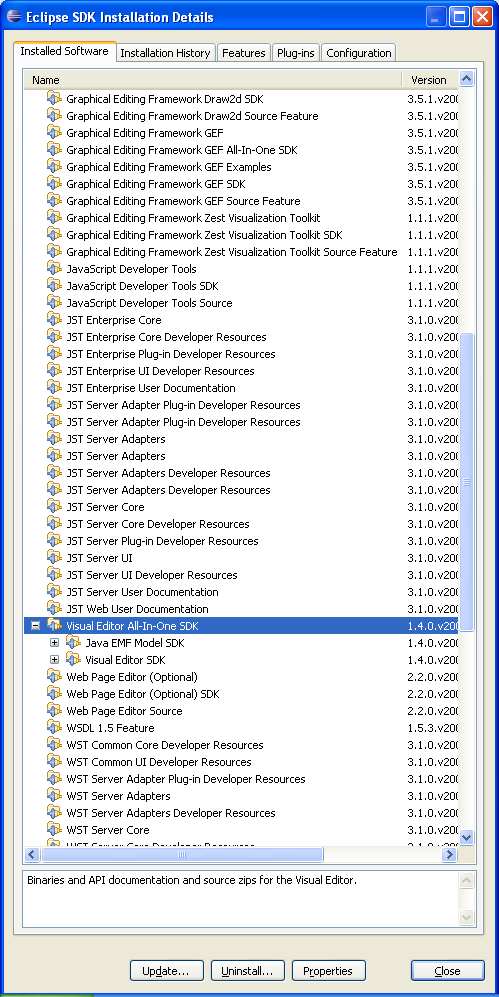

And My installation stuff looks like this:
From:
ve-dev-bounces@xxxxxxxxxxx [mailto:ve-dev-bounces@xxxxxxxxxxx] On Behalf Of Robert
Patrizio
Sent: 11 November 2009 09:19 nm
To: ve-dev@xxxxxxxxxxx
Subject: [ve-dev] Problem installing Visual Editor
Good Afternoon,
I have Eclipse Galileo installed in mi MacBook Pro. I did download VE from the
source page and I'm having a problem with te installation. This is the error:
Cannot complete the install because of a conflicting dependency.
Software being installed: Visual Editor All-In-One SDK
1.4.0.v20090826-1446-377-7BHP1L2iJp9-UJR-hP0Cz085
(org.eclipse.ve.all.feature.group
1.4.0.v20090826-1446-377-7BHP1L2iJp9-UJR-hP0Cz085)
Software currently installed: Eclipse IDE for Java EE Developers
1.2.1.20090918-0703 (epp.package.jee 1.2.1.20090918-0703)
Only one of the following can be installed at once:
Java EMF Model Utilities 2.0.200.v200905140200
(org.eclipse.jem.util 2.0.200.v200905140200)
Java EMF Model Utilities 2.0.200.R3_1_maintenance
(org.eclipse.jem.util 2.0.200.R3_1_maintenance)
Cannot satisfy dependency:
From: Eclipse IDE for Java EE Developers 1.2.1.20090918-0703
(epp.package.jee 1.2.1.20090918-0703)
To: org.eclipse.epp.package.jee.feature.feature.group
[1.2.1.20090918-0703]
Cannot satisfy dependency:
From: Java EE IDE Feature 1.2.1.20090918-0703
(org.eclipse.epp.package.jee.feature.feature.group 1.2.1.20090918-0703)
To: org.eclipse.wst.web_ui.feature.feature.group 0.0.0
Cannot satisfy dependency:
From: Java EMF Model
1.4.0.v20090826-1446-7H-FPbAcggQleH8hJifHfUd (org.eclipse.jem.feature.group
1.4.0.v20090826-1446-7H-FPbAcggQleH8hJifHfUd)
To: org.eclipse.jem.util [2.0.200.R3_1_maintenance]
Cannot satisfy dependency:
From: Java EMF Model SDK
1.4.0.v20090826-1446-377-84M2IaeLhpiUslQArckxjIhH
(org.eclipse.jem.sdk.feature.group
1.4.0.v20090826-1446-377-84M2IaeLhpiUslQArckxjIhH)
To: org.eclipse.jem.feature.group
[1.4.0.v20090826-1446-7H-FPbAcggQleH8hJifHfUd]
Cannot satisfy dependency:
From: Visual Editor All-In-One SDK
1.4.0.v20090826-1446-377-7BHP1L2iJp9-UJR-hP0Cz085
(org.eclipse.ve.all.feature.group
1.4.0.v20090826-1446-377-7BHP1L2iJp9-UJR-hP0Cz085)
To: org.eclipse.jem.sdk.feature.group
[1.4.0.v20090826-1446-377-84M2IaeLhpiUslQArckxjIhH]
Cannot satisfy dependency:
From: WST Common Core
3.1.1.v200908102300-7B77FZ3F7RZHIVI9QdN4PM
(org.eclipse.wst.common_core.feature.feature.group
3.1.1.v200908102300-7B77FZ3F7RZHIVI9QdN4PM)
To: org.eclipse.jem.util [2.0.200.v200905140200]
Cannot satisfy dependency:
From: WST Common UI
3.1.1.v200908102300-7B5FRGDhdMNPnndenAjpWJAReO5Q
(org.eclipse.wst.common_ui.feature.feature.group
3.1.1.v200908102300-7B5FRGDhdMNPnndenAjpWJAReO5Q)
To: org.eclipse.wst.common_core.feature.feature.group
[3.1.1.v200908102300-7B77FZ3F7RZHIVI9QdN4PM]
Cannot satisfy dependency:
From: Eclipse Web Developer Tools
3.1.1.v200908120400-7R77FSpEVw2xXR0CtKvX6bG6a2qU
(org.eclipse.wst.web_ui.feature.feature.group
3.1.1.v200908120400-7R77FSpEVw2xXR0CtKvX6bG6a2qU)
To: org.eclipse.wst.common_ui.feature.feature.group
[3.1.1.v200908102300-7B5FRGDhdMNPnndenAjpWJAReO5Q]
I'll apreciate your help on this,
Thanks in advance
--
Robert Patrizio
Sportwind de Venezuela C.A.
