Re: [ve-dev] running sweet

[Mark Proctor <mproctor@xxxxxxxxxxxx>]

David,

Trying to understand what you mean by:
"With CompositeTable it is simple to create a checkbook registry type
layout where some pair (or n) rows repeat. Just use a GridLayout to lay
out your prototype row object however you like. "

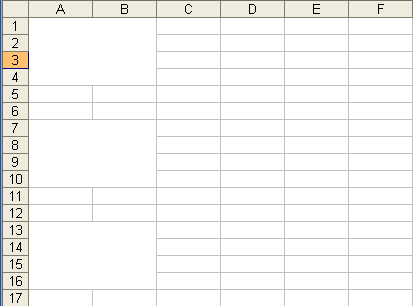

Can merges as shown in the attached gif be achieved? Its not something I
need now and I admit its an obscure use case, most likely it will be for
inserting images.

Mark
David J. Orme wrote:
> Mark Proctor wrote:
>
> > virtual table stuff sounds great.
>
> Thanks!
>
> > With regards to merge I mean if you merge two cells, one above the
> > other, or even a block of 4x4 cells.
>
> Okay, I know what you mean now.
>
> With CompositeTable it is simple to create a checkbook registry type
> layout where some pair (or n) rows repeat.  Just use a GridLayout to
> lay out your prototype row object however you like.
>
> Horizontal merges are also possible by programming your row object to
> handle that for you.
>
> But you can't just randomly merge cells vertically.
>
> > I'm guessing that veritcal or block cell merging can be done by
> > placing a floating composite that covers the 4x4 cells as the
> > rectangle top left and bottom right can be calculated - or maybe we
> > only need to set its width and height and anchor the top and left.
> > How would this compare GC based rendering performance? Any issues?
>
> That would be a real kludgy way to get the job done.  If
> CompositeTable exposed more of its redraw events to the outside, you
> could do it.
>
> But I really want to understand the use-case for doing this.  (In over
> 10 years of database application programming, I've never seen a
> use-case for this, so I have to admit that I'm stumped here.)
>
> Here's where I'm coming from:
>
> In any grid that is fundamentally editing rows from a collection or
> ResultSet, you're going to have repeating groups of things where each
> visual "thing" in the group represents a row in the
> collection/resultset.  So it seems to me that at some level, you're
> just going to model this whole collection of things as a row that can
> repeat n times where n is determined by the amount of visible space.
> Within that row, you might merge vertical cells, which you can do
> today in CompositeTable by using a GridLayout/GridData with
> verticalSpan > 1 on appropriate objects.  But I don't understand the
> use-case for merging vertical cells across boundaries that represent
> rows in your collection.
>
> > jxtable is a nice open source jtable implementation, that has some
> > extra features like frozen columns:
> > http://xframe.sourceforge.net/swing/jxtable.html
>
> Yes.  Frozen columns would be very nice.  CompositeTable currently
> don't handle the case where you need to scroll horizontally.  Right
> now it makes your columns fit exactly in the visible space and
> allocates each column a programmer-specified percentage of the
> whole--which works fine for 80% of the cases.  But there are the 20%
> that need to scroll horizontally and this still needs work.
>
>
> Regards,
>
> Dave Orme
