Re: [sumo-user] View Traffic value on the link

Hi Andreas,



did you set the --elements option explicitly and if yes, which value did you provide? Please note that until today the script would return a misleading warning message "Use option --elements vehicle,flows" which should read "Use option --elements vehicle,flow" instead. This has been corrected in Github source.



Best regards,

Mirko









-----Original-Nachricht-----

Betreff: Re: [sumo-user] View Traffic value on the link

Datum: 2024-11-26T14:30:12+0100

Von: "Andreas Lenhardt via sumo-user" <sumo-user@xxxxxxxxxxx>

An: "Sumo project User discussions" <sumo-user@xxxxxxxxxxx>







Hello,

I need to do the same thing, however I have a rou.xml file containing flows.
Trying to run countEdgeUsage.py says
departEdges: no values
arrivalEdges: no values

I tried running the script from netedit.

Thanks and kind regards



Am Di., 26. Nov. 2024 um 12:18 Uhr schrieb Pedro Oliveira via sumo-user <sumo-user@xxxxxxxxxxx>:
Good morning!

Thank you very much!

Sds,

Pedro Oliveira

Em ter., 26 de nov. de 2024 às 03:52, Jakob Erdmann <namdre.sumo@xxxxxxxxx> escreveu:
In the settings dialog, activate the checkbox "show edge color value". You can customize size, color and background color of the text.

Am Mo., 25. Nov. 2024 um 21:18 Uhr schrieb Pedro Oliveira <pedro.engenhariae@xxxxxxxxx>:
Thank you very much. I'm now going to look for how to place the text in each edg, I'm still having difficulty.

Sds,

Pedro Oliveira

Em seg, 25 de nov de 2024 15:18, Jakob Erdmann via sumo-user <sumo-user@xxxxxxxxxxx> escreveu:
It even works without running the simulation: https://sumo.dlr.de/docs/Tools/Routes.html#countedgeusagepy

Am Mo., 25. Nov. 2024 um 18:32 Uhr schrieb Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx>:

Hi,



you can colour the edges by several kinds of measures and display the corresponding numerical value using the visualisation settings of sumo-gui. First configure edgeData recording and then choose to colour the edges by (live) edgeData (select "left" as measure). Keep in mind that the value is related to the period you choose (not necessarily per hour)!



Best regards,

Mirko









-----Original-Nachricht-----

Betreff: [sumo-user] View Traffic value on the link

Datum: 2024-11-25T15:10:41+0100

Von: "Pedro Oliveira via sumo-user" <sumo-user@xxxxxxxxxxx>

An: "Sumo project User discussions" <sumo-user@xxxxxxxxxxx>







Good morning!

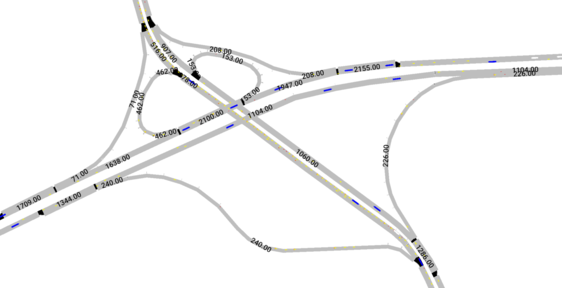

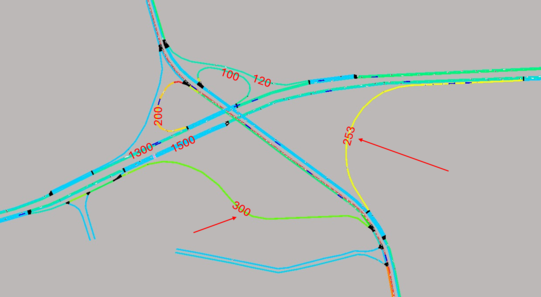

I would like to know if it is possible to print the simulation with the value of the traffic volume, it would be something like this.


Thank you very much for your attention.

Best regards,

Pedro Oliveira
