Re: [sumo-user] Detector ID for actuated TLS
Dear Mirko,

Thanks for the quick reply. That is the default behavior if the tls

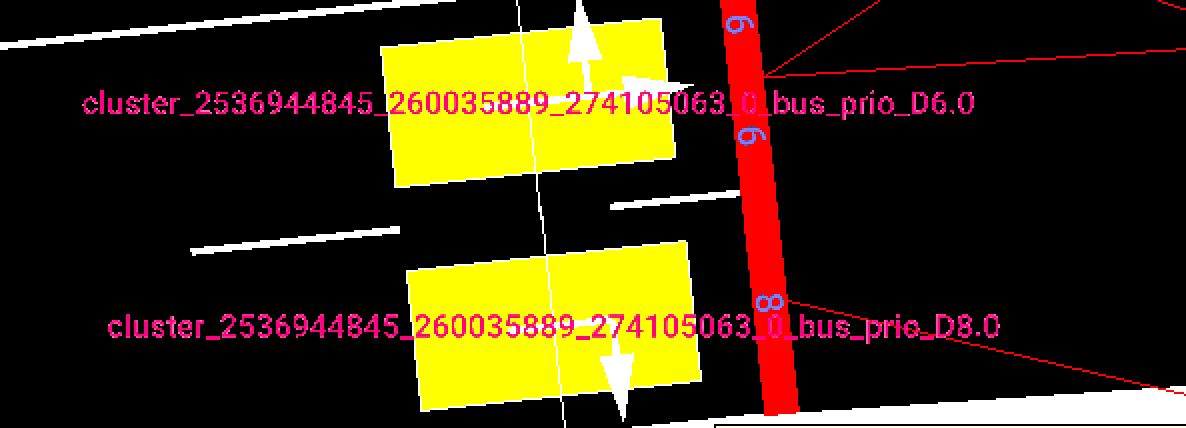

are not grouped. In this example, even though the detectors are on the
same edge, they get a different first index:
Am I correct?

On Wed, Jul 3, 2024 at 5:25 PM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:
>
> Hi Sasan,
>
> the relevant code line seems to be https://github.com/eclipse-sumo/sumo/blob/fc540e9834bb840b3da0eb3c1224ad4022a46263/src/microsim/traffic_lights/MSActuatedTrafficLightLogic.cpp#L222 . The first number is an edge index used inside the TL and the second is the lane index. The edge index is built from the lanes included in the TL control (every time a new edge is found in the order of lanes the index is incremented).
>
>
>
> Best regards
>
> Mirko
>
>
>
>
>
> -----Original-Nachricht-----
> Betreff: [sumo-user] Detector ID for actuated TLS
> Datum: 2024-07-03T17:09:52+0200
> Von: "Sasan Amini via sumo-user" <sumo-user@xxxxxxxxxxx>
> An: "Sumo project User discussions" <sumo-user@xxxxxxxxxxx>
>
> Dear all,
> I was wondering how the IDs for automatically generated detectors for
> actuated tls are assigned? I have manually changed tlIndex of some
> connections, and in most cases detectors are basically D0.0 such as
> first digit is the tlLinkIndex and the second digit is an enumerator.
> However, sometimes it is not. Below is a screenshot of an example:
> instead of D2.0 I get D1.1. Can anyone help me to get these IDs maybe
> using sumolib? or at least a way to reproduce how they are created and
> assigned?
>
> Thanks,
> Sasan
>
>

Attachment: image-2.png
Description: PNG image
