[sumo-user] OpenDrive conversions to .net.xml

[Ruud van Gaal <r.vangaal@xxxxxxxxxx>]

Hi,

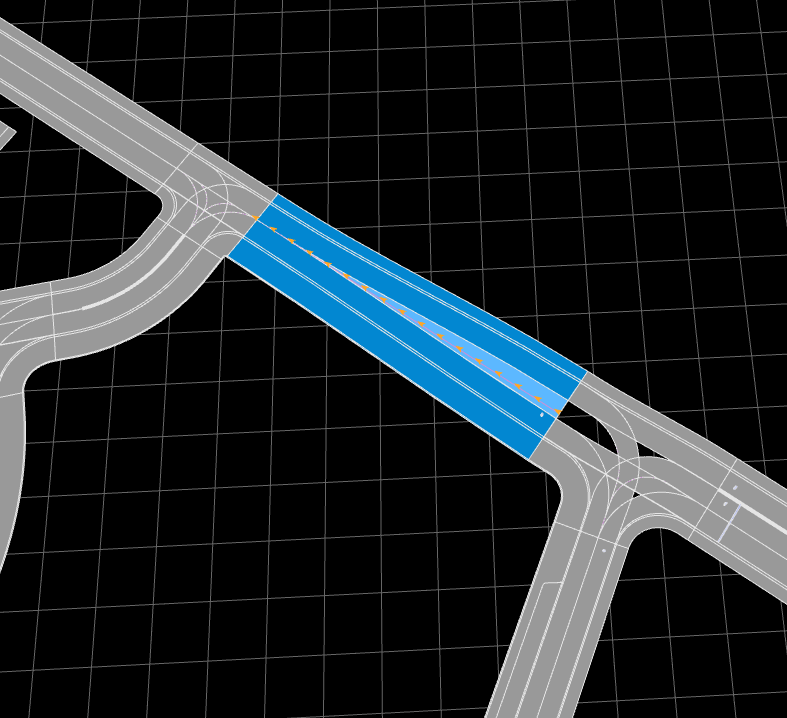

The basis for soof our environments is in OpenDrive format. When exporting that to SUMO, it seems some of the base architectural constructs are different, making conversion difficult (OpenDrive uses roads with lanes, where SUMO uses an edge per direction it seems with lanes that are not really a direct conversion from OpenDrive). For example, in an OpenDrive (odrviewer.io) viewer I see these lanes merging in OpenDrive:

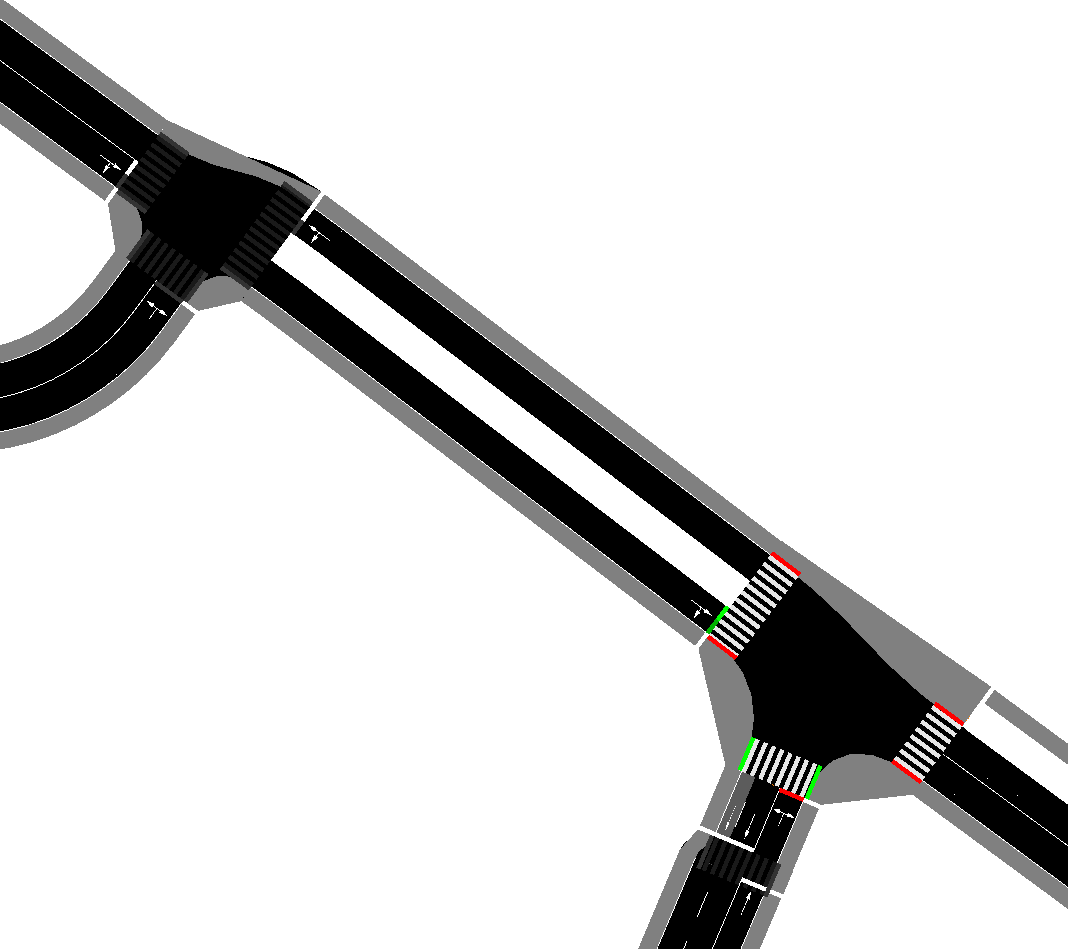

With the export I used in SUMO 1.16.0 this ended up like this in SumoGui:

I'm wondering whether this is something structural or whether SUMO is capable of handling these types of conversions better. I'm not sure if any work has been done to the OpenDrive importer since SUMO 1.16, or that I might have missed some netconvert options which might improve the conversion on this point.

Thanks,

Ruud van Gaal
