[sumo-user] Acceleration and speed output problem

[Simon Hailemichael <simongeb145@xxxxxxxxx>]

Hello Everyone,

I am working on a simulation project that requires me to generate speed and acceleration data using  FCD and Amitran outputs. I have no problem with the FCD output, but the Amitran output gives me unrealistic values for speed and acceleration at every time step. For example, I get something like speed="1992" time="823000" acceleration="2330"/>. I have attached a screenshot of the result and the SUMO configuration file for your reference. Has anyone encountered this issue before and can offer some advice on how to fix it? I appreciate your time and help.

--

Simon Michael

Road and Transport Engineer

<?xml version="1.0" encoding="UTF-8"?>

<!-- generated on 2023-10-25 14:57:11 by Eclipse SUMO sumo Version 1.18.0
-->

<configuration xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/sumoConfiguration.xsd";>

    <input>
        <net-file value="new28.net.xml"/>
        <route-files value="demand.rou.xml"/>
        <junction-taz value="true"/>
    </input>
    <output>
        <fcd-output value="E:\SUMO\new\fcd.xml"/>
        <amitran-output value="E:\SUMO\new\accelerationdetails.xml"/>
    </output>

    <time>
        <begin value="0"/>
        <end value="900"/>
        <step-length value="1"/>
    </time>

</configuration>

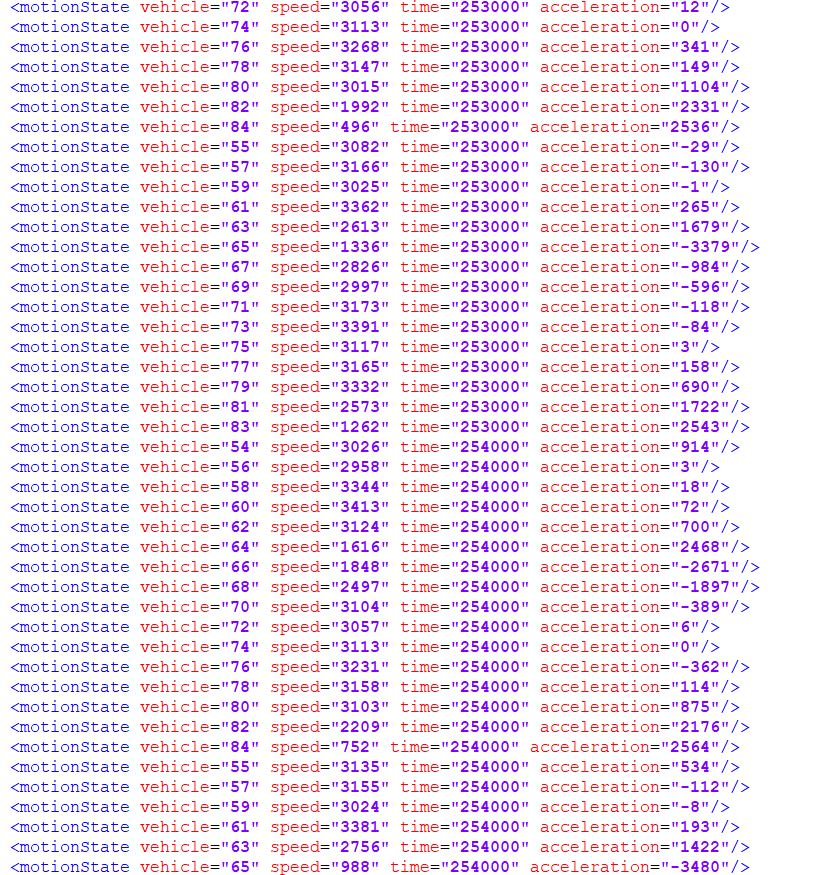

Attachment: SUMO 82.JPG
Description: JPEG image
