Re: [sumo-user] Polyconvert
Sorry, the image is not uploaded to the previous mail so I am attaching it here.Capture 1.PNG

On Wed, Jun 15, 2022 at 4:18 PM Jatin Senjaliya <jatins2708@xxxxxxxxx> wrote:
Dear Jakob,

I am new to sumo and I want to create a TAZ file. After reading documentation that you have suggested in the past mail, I have performed the below step to create a TAZ file.

1. By using polyconvert, I converted the shapefile to a polygon file.: for that used command👉 polyconvert -n osm.net.xml --shapefile-prefixes taz --shapefile.id-column id --shapefile.guess-projection t -o converted.poly.xml --type taz --color 51,128,255

Successfully converted shapefile.

2. After that, I want to convert the converted.poly.xml file to TAZ file: for that used command👉 (Here, I have given SUMO_HOME path in the Environment variable)edgesInDistricts.py -n osm.net.xml -t converted.poly.xml -o TAZ.xml.

But I have not got any output .xml file and it's opening edgesInDistricts.py file in the python interpreter as output.

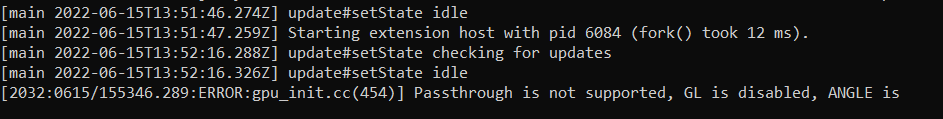

Here is the output from cmd.
Capture 1.PNG
Can you please look at the problem and guide me through it?

Thank you for the understanding.

Best regards,
Jatin

On Wed, Jun 15, 2022 at 3:10 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

Am Mi., 15. Juni 2022 um 14:00 Uhr schrieb Jatin Senjaliya <jatins2708@xxxxxxxxx>:
Hello Jakob,

I have tried to run the edgesindistrics.py tool by sumocommand. To run this tool I set the working directory to where the tool is located in my case(C:\Program Files (x86)\Eclipse\Sumo\tools). But I am not getting any output. It is directly opening the tool's code script into the python interpreter. So, my question is, is it necessary that .net.xml and .poly.xml file should be in the same directory?

Can you please clarify my doubt?

Thank you.

Best regards,
Jatin

On Wed, Jun 15, 2022 at 11:49 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

Am Mi., 15. Juni 2022 um 11:39 Uhr schrieb Jatin Senjaliya <jatins2708@xxxxxxxxx>:
Hello Jakob,

Thank you for the suggestion.

I have successfully converted the shape file which contains the taz in polygon shape. Now I want to create taz by using this converted.poly.xml file for sumo. Can you please tell me what should be the TAZ_ID and EDGE_ID from this converted.poly.xml?

Thank you.

Best regards,
Jatin

On Wed, Jun 15, 2022 at 9:48 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
You also need to provide an argument for option '--shapefile.id-column'
(whatever the column in your data is called).
If you leave out the option and run with --verbose, the available columns will be printed.

Am Mi., 15. Juni 2022 um 09:43 Uhr schrieb Jatin Senjaliya <jatins2708@xxxxxxxxx>:
Hello Jakob,

Thank you for your quick response.

I tried both of these commands (--output-file taz.poly.xml, -o taz.poly.xml) one by one, but still getting the same error.

Is there any other way?

Best regards,
Jatin



On Wed, Jun 15, 2022 at 9:34 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
Use either
--output-file taz.poly.xml
-o taz.poly.xml

but not
-output-file taz.poly.xml

Am Mi., 15. Juni 2022 um 09:20 Uhr schrieb Jatin Senjaliya <jatins2708@xxxxxxxxx>:
Dear sumo users,

I am new to sumo and I am trying to import polygon shapefile to sumo and for that I used this command 👉 polyconvert --shapefile-prefixes taz --shapefile.guess-projection "t" --shapefile.id-column  -output-file taz.poly.xml But, I am getting bellowed mentioned error.
I have also tried to save the output file by using a different name instead of taz, still getting the same error. Could you please tell me the possible solution for this?

One more question, After converting the shapefile, what should be the next step(how can i do further processing of the converted shape file in sumo?)

Any help would be greatly appreciated. Thank you for taking time.

Best regards,
Jatin
