Re: [sumo-user] Turn files using netedit

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

The parameter field in edgeRelation model defines the default attributes of newly created edgeRelations.

You can later modify the values in inspect mode.

The default attribute for turn files is 'count' but you can use any other attribute name (i.e. carCount, bikeCount, truckCount).

Tools such as routeSampler.py use the option --turn-attribute to select which value to use.

Am Fr., 3. Dez. 2021 um 05:21 Uhr schrieb Royal Bhandari <royalbhandari6@xxxxxxxxx>:

Hello,

I am trying to create turn files using the netedit > Data> edgerelation mode. While defying the edgerelation, we have to input the parameter at the bottom left corner. What are those parameters and how do we define them?

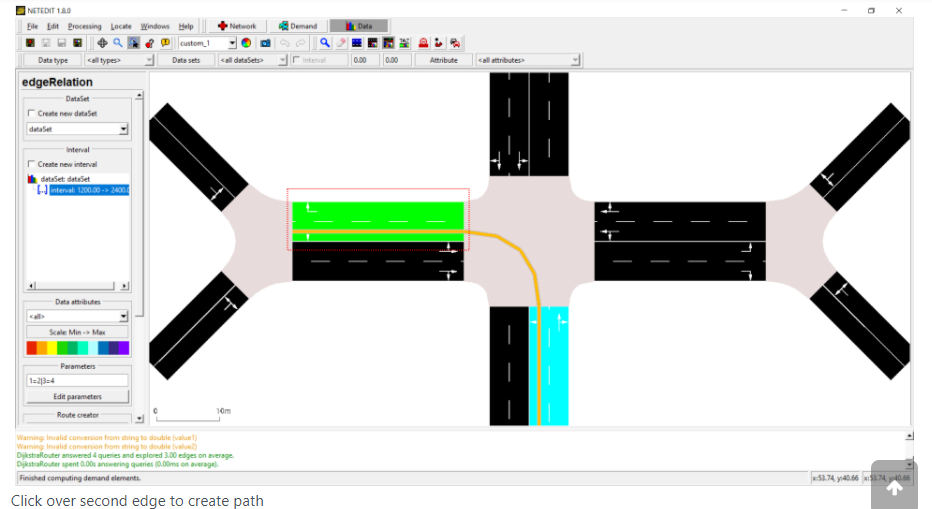

I have attached a picture from the documentation for your reference.

Regards,

Royal
