Re: [sumo-user] Questions about having multiple vTypes, Routes, and Vehi

[vincentobiako <vincentobiako@xxxxxxxxx>]

Jakob

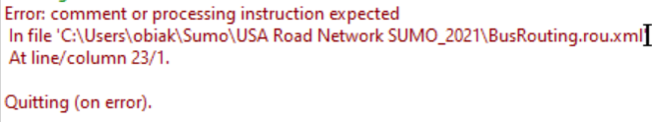

I tried removing the mistake from earlier and correcting the format. However, I am still getting an error message that looks something like this when I run the sumocfg file:



I have attached my .rou.xml, .net.xml, and add.xml files as a reference.



I understand that there are two different vTypes, routes, and vehicles being used in this one xml file, but I didn’t think that this should send up an error message in SUMO. Do you know why exactly this error is showing up. I don’t understand what the error message is trying to tell me. I tried moving the bus stop ‘busStop_JagTranRdSB7_1_25’ to a different location on lane ‘JagTranRdSB7_1, but that did not work. Do you know what could be done to clear this issue up?



Thank you

Ifezue



Sent from Mail for Windows



From: Jakob Erdmann
Sent: Friday, September 10, 2021 3:50 AM
To: Sumo project User discussions
Subject: Re: [sumo-user] Questions about having multiple vTypes, Routes, and Vehicles in the Same File



The lines

<routes>

and

</routes>

should appear exactly once at the beginning and respectively end of your file.



Am Do., 9. Sept. 2021 um 21:14 Uhr schrieb vincentobiako <vincentobiako@xxxxxxxxx>:

Hello everyone



I have been trying to develop a simulation with multiple bus routes that have multiple buses on each respective route. I have been trying to develop a rou.xml file that contains information such as vType attributes, routes, and vehicle definition about each bus and the route each bus will take. However I keep getting an error message when I run the simulation in SUMO-gui that looks like this:





I am not really sure how to go about solving this issue/error message. As a reference, I have attached my .rou.xml file to this email. In order to work around this problem and make a stop-gap measure, I split up the <routes> definition files into separate rou.xml files, but considering the number of buses that I will be modeling in the near-future I was wondering if all this information could be placed in one .rou.xml file rather than many separate .rou.xml files.



Thank you in advance

Ifezue



Sent from Mail for Windows
