The size of the network before processing:
831430 nodes and 1441826 edges. I didn't find the final network size in the log file and didn't save each network separately, so can't be sure if I can say the size of the resulted network after processing :-/

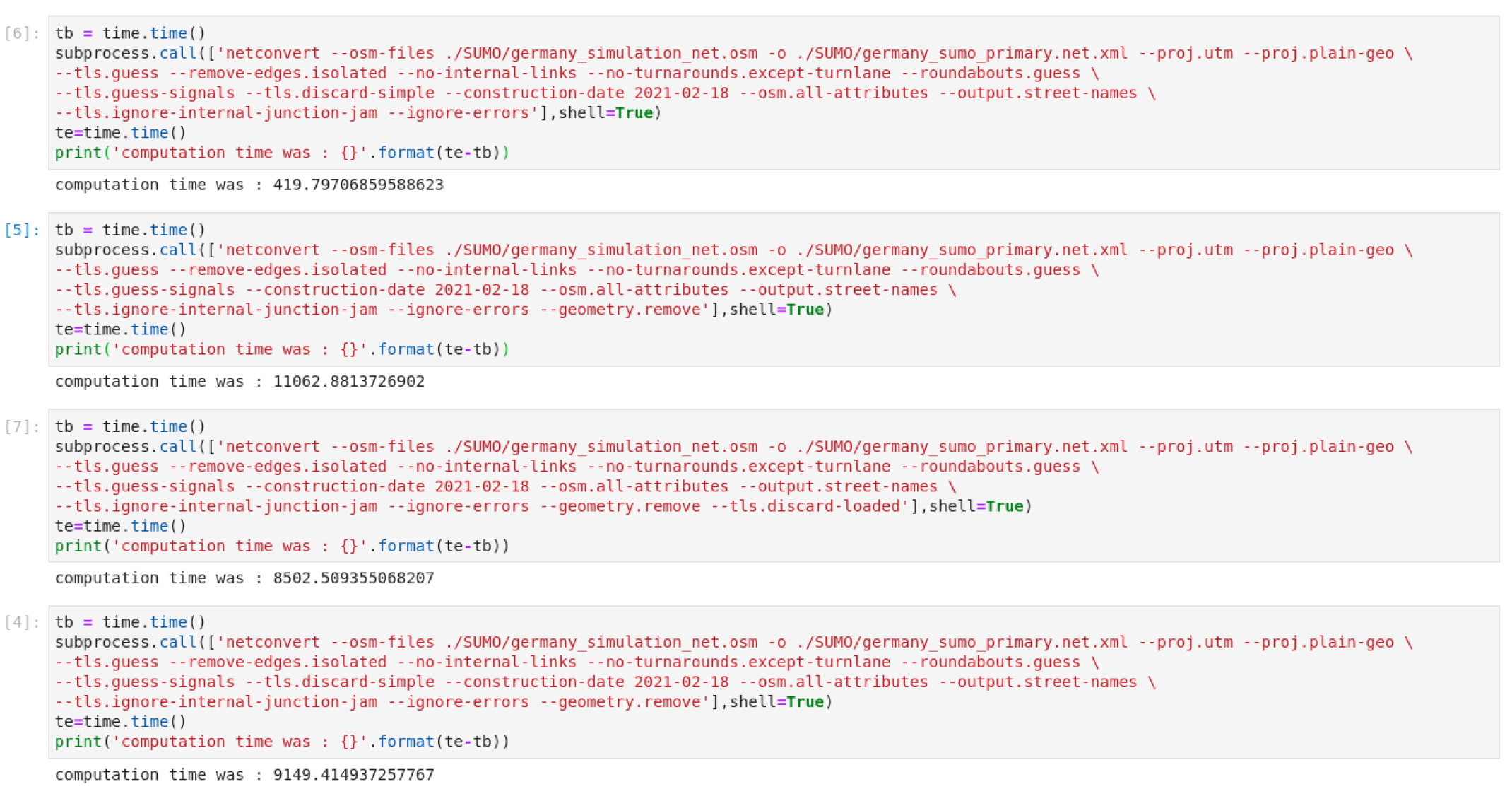

Here are the other two statistics (in the sequence of the above notebook cells)
1- 0 Nodes removed.
Summary:
Node type statistics:
Unregulated junctions : 0
Dead-end junctions : 9354
Priority junctions : 802752
Right-before-left junctions : 1830
Traffic light junctions : 16969
2- 327343 nodes removed.
Summary:
Node type statistics:
Unregulated junctions : 0
Dead-end junctions : 9352
Priority junctions : 381203
Right-before-left junctions : 1746
Traffic light junctions : 111261
3- 425644 nodes removed.
Summary:
Node type statistics:
Unregulated junctions : 0
Dead-end junctions : 9340
Priority junctions : 381589
Right-before-left junctions : 1822
Traffic light junctions : 12510
4- 425644 nodes removed.
Summary:
Node type statistics:
Unregulated junctions : 0
Dead-end junctions : 9340
Priority junctions : 377231
Right-before-left junctions : 1799
Traffic light junctions : 16891
Best,
Sasan
