Re: [sumo-user] Edges with bi-directional lanes

[Lara Codeca <lara.codeca@xxxxxxxxx>]

Hi Hriday,

the link you sent (https://sumo.dlr.de/docs/Networks/PlainXML.html#neighboring_opposite-direction_lanes) is used to allow drifting on the opposite lane, not to build a lane in the opposite direction.

In SUMO, edges are directional. You can see it in their definition, from node to node, and that gives the direction.

There are only a few specific lanes that are bidirectional, like railways, for example.

Regards,

Lara

On Thu, Feb 11, 2021 at 6:49 PM Hriday Sanghvi <sanghvih@xxxxxx> wrote:

Hello,

I am trying to create a network one junction at the center and four edges branching out from there in cardinal directions. But I need all these edges to have 2 lanes, each lane allowing the passage of vehicles in the opposite direction.

I have referred to https://sumo.dlr.de/docs/Networks/PlainXML.html#neighboring_opposite-direction_lanes and tried to do it myself but it seemingly creates a new EDGE that acts as the opposite-direction lane instead.

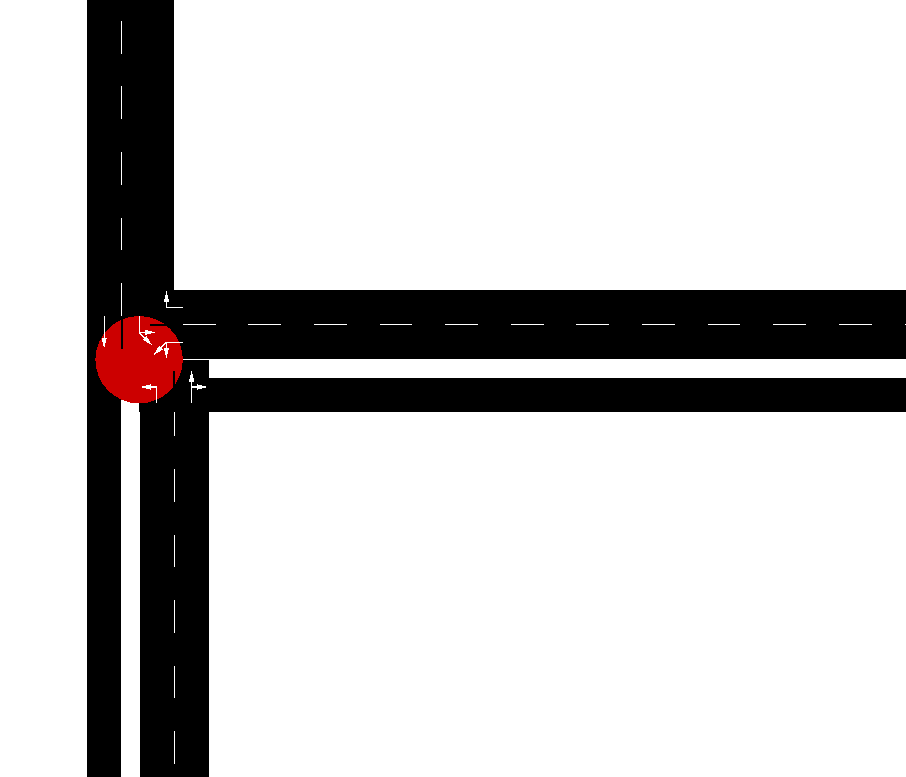

You may notice the gaps between the edges that are supposed to be "neighbouring lanes".

The closes image I found to what I am trying to achieve is as given:

Note how the blue and orange car are facing. Assuming the blue car travels straight upwards instead of right. Is it possible to get such a edge with two lanes(bidirectional)

--

Hriday
