Hi John,
Maybe I
can help you.
Regarding
the problem with the 2-lane street: have you

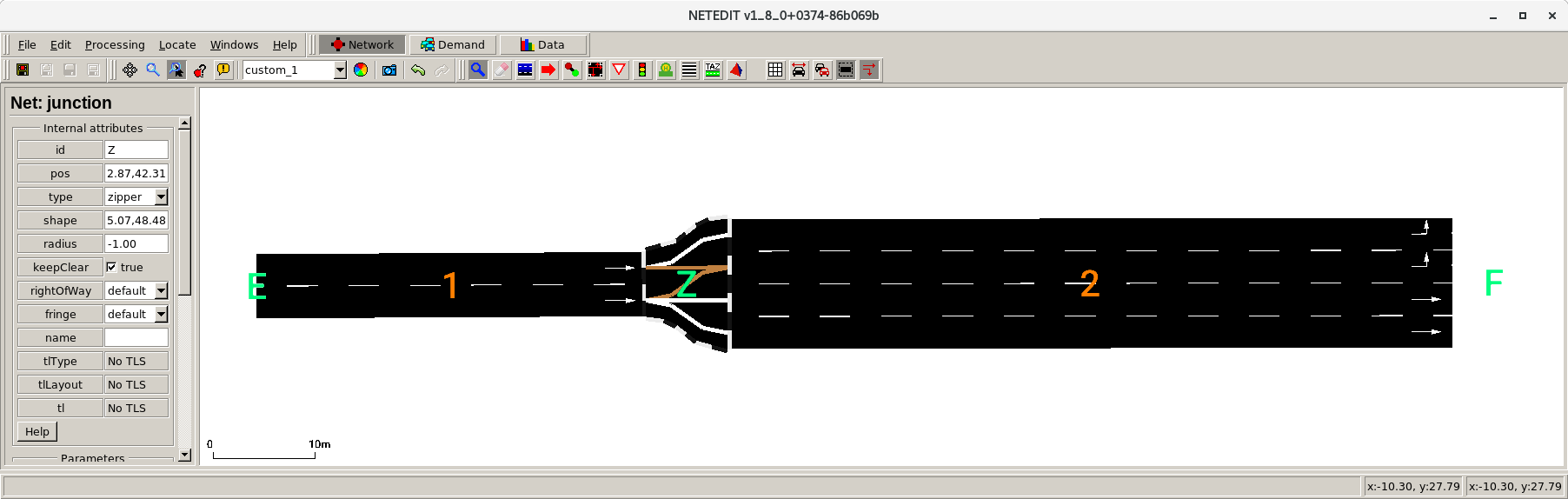

checked the connections? Please try changing
the connections of the junction before the

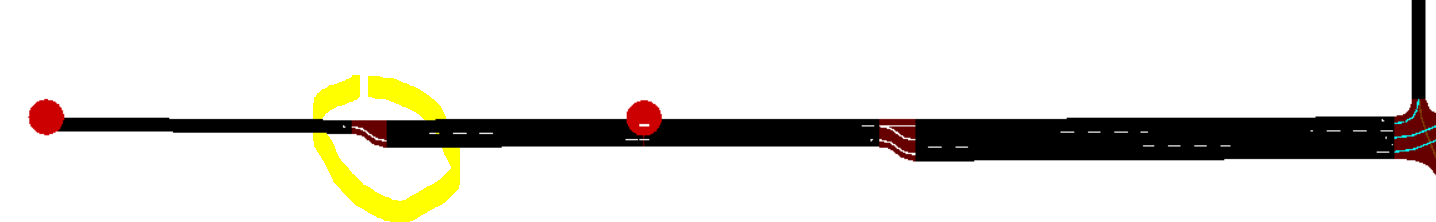

crossway (see image). It looks like that the
majority of the vehicles want to turn left on
the crossway. If the vehicles want to turn
left, they will only use the left lane,
because if they stay on the right one, they
will not be able to access to the left lanes
of the last 3-lanes edge.
As for the
error message, have you checked that the
vClass of your vehicle “BUS65I1” is “bus”?
Regards,
Giuliana
Jakob,
I am modeling a proposed restricted buslane
that cuts across three busy intersections in our
town. I have the model working but have two
problems: a two lane edge defined has only one
lane being used when the simulation runs; and an
error message occurs when a bus-top is place on
a restricted bus lane.

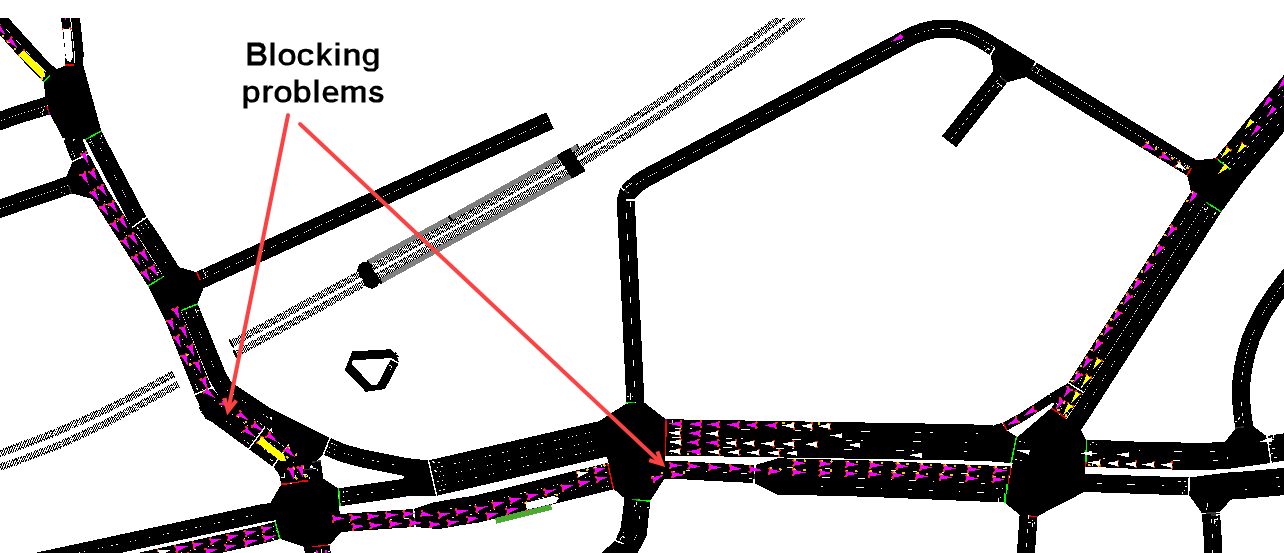

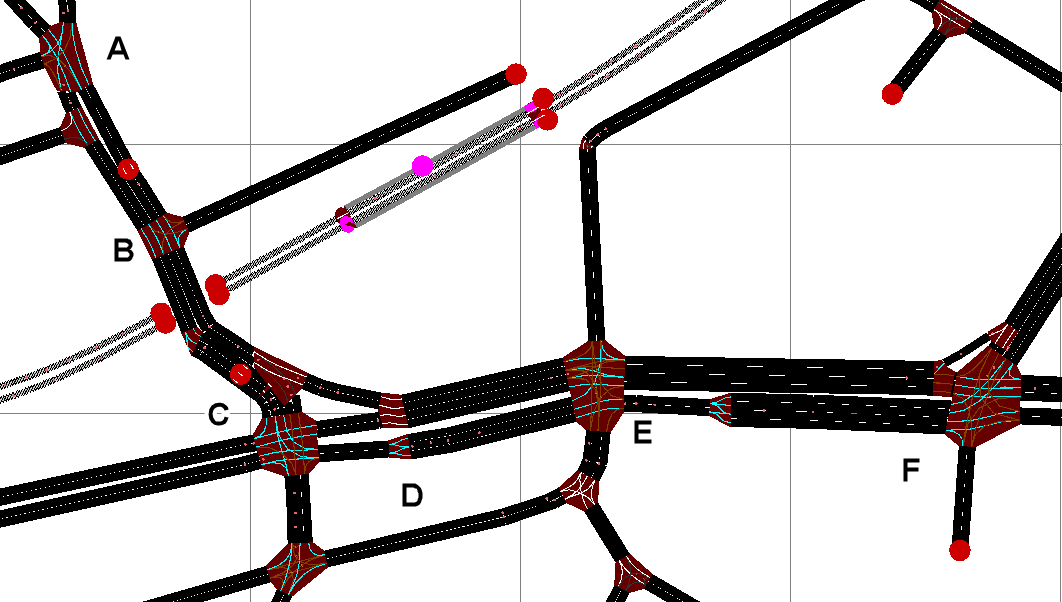

The LH image below shows the traffic on the
2-lane Washington Street is only using one lane
of the roadway after the two single lane feeder
roads. Nearly all the traffic turns east at the
major intersection with the divided highway. I
cannot get the model to reflect the real world
where both lanes are fully occupied at this
hour.
The model without the bus lane runs the buses
fine and they stop at the bus stop on the edge
as marked. Then, I created a new network with
the edge/lane rte9e6_0 defined as being a
restricted bus lane with bus stop, but get the
following error message:
Any advice to fix these two problems?
Regards,
John
