Hello Harold,

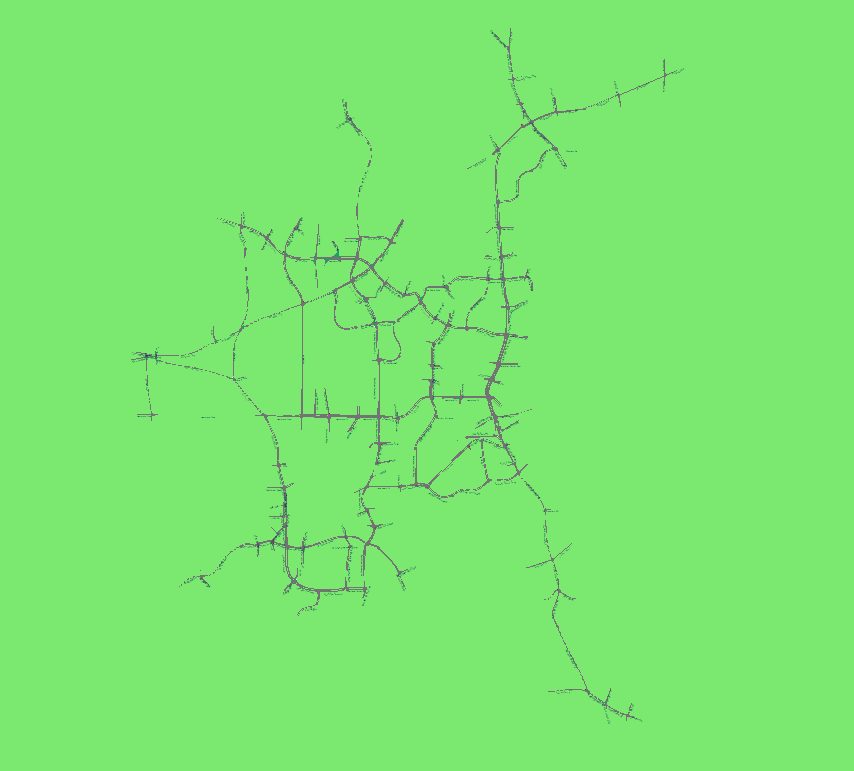

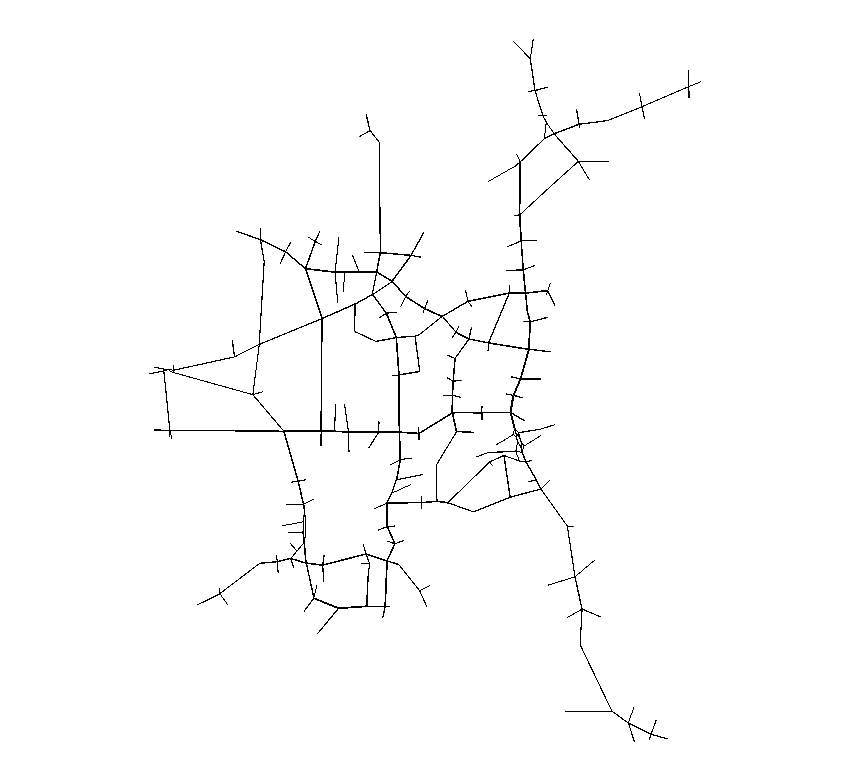

I actually believe I figured it out. When Synchro has a 'link' (edge) going in only one direction, it will also create a data set for a link going in the opposite direction and describe it as having 0 lanes. The script was taking this data which it should've skipped over and using it to create an edge with numlanes ='0', which SUMO doesn't like.  After altering the script to remove these redundancies, the netconvert tool worked just fine. In case you're curious, here's a comparison of the road networks in both simulation software.
It's a very barebones conversion but obviously there is more work to be done. I appreciate your speedy response Harold.

Thanks,

Cortlandt

From: sumo-user-bounces@xxxxxxxxxxx <sumo-user-bounces@xxxxxxxxxxx> on behalf of Harald Schaefer <fechsaer@xxxxxxxxx>
Sent: Tuesday, October 13, 2020 3:48 AM
To: sumo-user@xxxxxxxxxxx <sumo-user@xxxxxxxxxxx>
Subject: Re: [sumo-user] netconvert Error: value '0' must be greater than or equal to minInclusive facet value '1'


Hi Cortlandt,


can you please post the first 7 lines of your WorkPlease.edg.xml file?


Thanks, Harald


Am 13.10.20 um 02:23 schrieb Cortlandt Montross:
Hi all,

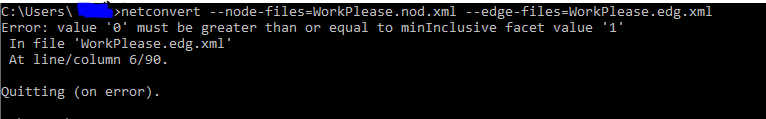

I'm working on a script for converting Synchro geometric data into SUMO plain-xml to be converted in .net.xml with the netconvert tool. I've had much success with some basic test files and I've moved on to slightly more advanced files. Currently, with a rather large network, I am experiencing the following error when I try to use netconvert on a .nod.xml and .edg.xml file:
I am having difficulty determining the source of this error. Any help on this would be greatly appreciated.

Thanks,

Cortlandt
