Re: [sumo-user] sumo-gui - --junction-taz option from netedit
  • From: <Maria.Armellini@xxxxxx>
  • Date: Mon, 12 Oct 2020 07:34:19 +0000
  • Accept-language: de-DE, en-US
  • Delivered-to: sumo-user@xxxxxxxxxxx
  • Ironport-phdr: 9a23:vu9xuxP3AiEvbt8CoyYl6mtUPXoX/o7sNwtQ0KIMzox0Ivr/rarrMEGX3/hxlliBBdydt6sbzbeI+Pm5AyQp2tWoiDg6aptCVhsI2409vjcLJ4q7M3D9N+PgdCcgHc5PBxdP9nC/NlVJSo6lPwWB6nK94iQPFRrhKAF7Ovr6GpLIj8Swyuu+54Dfbx9HiTagY75+NhW7oATeusULnIduNLs6xwfUrHdPZ+lY335jK0iJnxb76Mew/Zpj/DpVtvk86cNOUrj0crohQ7BAAzsoL2465MvwtRneVgSP/WcTUn8XkhVTHQfI6gzxU4rrvSv7sup93zSaPdHzQLspVzmu87tnRRn1gyoBKjU38nzYitZogaxbvhyvugB/zYDXboGbNvV+f7/SctwBSGpbQspRVTZMDp+gY4YNCecKIOZWr5P6p1sLtRazAg6iC/n1yj9JnHD6x7E30/4kEQ7Y2AwgG9MOsHLVrNjuKagSVfq1wLPVwjrddv5b3yr254fUfB47u/6MQa5wftTLyUkpDw7IgFqepJHkMj6V1ukAvXSW4eVkWO6xl2MqqwJ8ryWry8ksiYTHiYYYxk3G+Ch93os4J9m1RFB4bNK6FJZdtjyXOo1rSc0sRGFovTw1yrwAuZOjeygK05EnywTZa/OZb4iF5A/oWuWJITpgmX5pZKiziwux/EWv0OHwS8e53VVQoiZbndTArm0B2h7N5sSdVPdx412t1SuN2g3S8O1IPEY5nrfBJZE72L4/jJ8TvFzGHi/xhUr5krebdl4h+ui08+TnZajmpoOEO490lA7+NqMul9SxD+o+PAYAUGiV9+S72rPg+kP3WqtGg/I5nKbYrp3WP8UbpqilAw9PyIkv8QuwDzO80NgCgHYIMkpJeBOBj4f3J1HDOO30Aeulj1ixkzpmyOrKMqDvD5jONHTPjrjsca5460FGyQozyd5f54hTCrEEOP/9XVX+tMbZDhAjKQC53/znCNBj2YMaXWKPA6mZMKLJvFCV4uIvOfOAa5ILtzrlMfgq++bujWMlmV8aZaSpxoYXaHW/Hvh/PkWZemTjgs0aHGgUogU+SO3qiEWZUTFNfXqyWLg85j5oQL6hWNPYW4WqxaGa0T2TE5ZSZ3hdBxaLC3i+JKueXPJZPAebOM5o1BUeULWlT44n1DmisBW8x7cxfbmcwTERqZ+2jIs93ObUjxxnrTE=
  • Ironport-sdr: kqbsSay3iW+LVgql2SB9nOS+8nomokZz07IwNDfcoVpTuvaAn1uzCOmIcJe9U2UV33JTj4tQZZ 2XQRzdLkBciQ==
  • List-archive: <https://www.eclipse.org/mailman/private/sumo-user>
  • List-help: <mailto:sumo-user-request@eclipse.org?subject=help>
  • List-subscribe: <https://www.eclipse.org/mailman/listinfo/sumo-user>, <mailto:sumo-user-request@eclipse.org?subject=subscribe>
  • List-unsubscribe: <https://www.eclipse.org/mailman/options/sumo-user>, <mailto:sumo-user-request@eclipse.org?subject=unsubscribe>
  • Thread-index: AQHWn5q40cK0YX6vSUWf6h3mGqnne6mTkoIw
  • Thread-topic: [sumo-user] sumo-gui - --junction-taz option from netedit

Hi,



Try adding the option “<junction-taz value="true"/>” in the .sumocfg file.



Regards,

Giuliana



Von: sumo-user-bounces@xxxxxxxxxxx <sumo-user-bounces@xxxxxxxxxxx> Im Auftrag von Chris Weinhaupl
Gesendet: Sonntag, 11. Oktober 2020 08:49
An: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Betreff: [sumo-user] sumo-gui - --junction-taz option from netedit



When loading sumocfg via the cli using the option --junction-taz

There is no issue loading.



C:\sumo_projects\ont_2_ranch>sumo-gui --junction-taz -c osm.sumocfg

----------------------------------------------------------------------------------------

Loading configuration ... done.

Loading net-file from 'osm.net.xml' ... done (18707ms).

Loading additional-files from 'osm.poly.xml' ... done (440ms).

Loading additional-files from 'taz.add.xml' ... done (25ms).

Loading done.

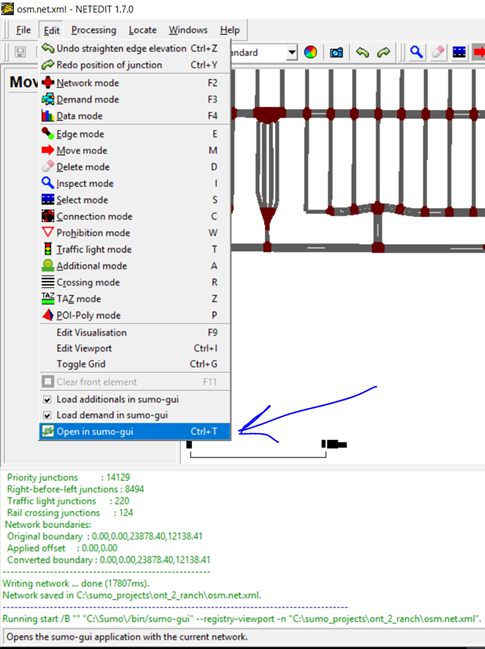

However when I am edding my net in netedit.

I have my taz included in sumocfg

But when I load sumocfg via netedit there is an error looking for "Set option '--junction-taz' or load a TAZ-file"

Is there an option that can be added to sumocfg to satisfy this requirement?











    <input>

        <net-file value="osm.net.xml"/>

        <additional-files value="osm.poly.xml,taz.add.xml"/>

        <route-files value="routes.rou.xml,ev_trips.xml"/>

    </input>



----------------------------------------------------------------------------------------

Loading additional-files from 'C:\sumo_projects\ont_2_ranch\osm.poly.xml' ... done (407ms).

Loading additional-files from 'C:\sumo_projects\ont_2_ranch\taz.add.xml' ... done (28ms).

Loading done.

Error: Source junction '4684989622' not known for trip '0'!

Set option '--junction-taz' or load a TAZ-file

Quitting (on error).
