Hi all,

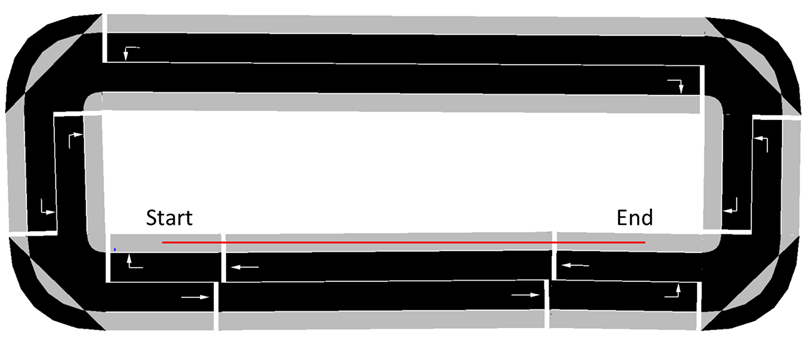

I was wondering if anyone has encountered this issue before and/or knows a work around to it. I’m trying to calculate the shortest path for a pedestrian from a list of edges. It seems though that net.getShortestPath references the road directions. To visualise in an example the redline on network below depicts the path net.getShortestPath(startEdge,endEdge,vClass="pedestrian") returns.





If I manually define the trip however like the following:



<vType id="ped_pedestrian" vClass="pedestrian"/>

    <person id="ped1" depart="0.00" type="ped_pedestrian" departPos="5">

        <walk from="startEdgeID" to="endEdgeID "/>

    </person>

</routes>

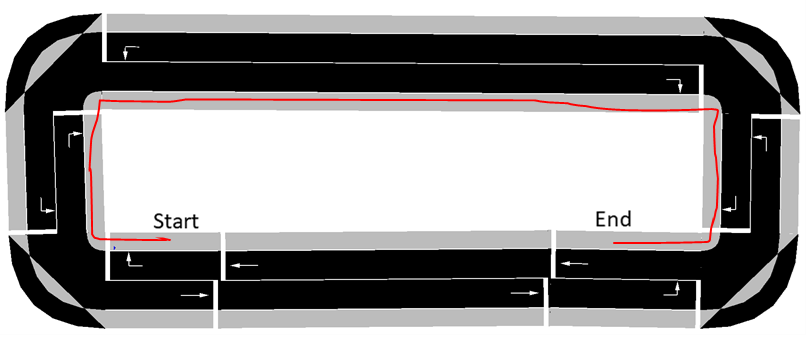

I get the path I would expect the pedestrian to follow.





Is there another method similar to net.getShortestPath I can use find the shortest path prior to a simulation or would I have to use something like traci.simulation.findRoute(starting_edge,finishing_edge,"ped_pedestrian",-1,0) within a simulation as an alternative.



Kind regards,



Barry
