Re: [sumo-user] Displaying flows

["Issa, Joshua" <Joshua.Issa@xxxxxxxxxxxxxx>]

Is there any way to change this from happening? The trains have a specified length, and when the length is increased the standard version increases, but the real world view does not. How can I work around that?



From: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@xxxxxxxxxxx] On Behalf Of Jakob Erdmann
Sent: June 17, 2020 11:07 AM
To: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Subject: Re: [sumo-user] Displaying flows



I think what's happening here is that you defined an edge with length-geometry-mismatch (the geometry is shorter than the length). Train carriages are always scaled along with the mismatch-factor which makes them look short in this case.  See https://sumo.dlr.de/docs/Simulation/Distances.html



I intend to makes this configurable (https://github.com/eclipse/sumo/issues/6920)



regards,

Jakob



Am Mi., 17. Juni 2020 um 16:59 Uhr schrieb Issa, Joshua <Joshua.Issa@xxxxxxxxxxxxxx>:

Sure.

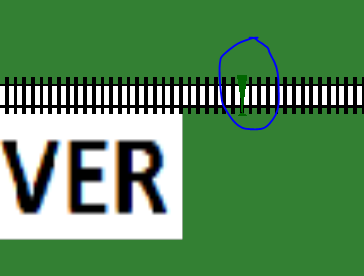

In standard:



In real world:



Thanks



From: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@xxxxxxxxxxx] On Behalf Of Jakob Erdmann
Sent: June 17, 2020 10:53 AM
To: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Subject: Re: [sumo-user] Displaying flows



Can you share a screenshot of what you mean by singular points?



Am Mi., 17. Juni 2020 um 13:40 Uhr schrieb Issa, Joshua <Joshua.Issa@xxxxxxxxxxxxxx>:

Hello all,



When running the simulation, the flows display as singular points when the display is set to “real world”. I was wondering if I could get the vehicles to display as the full vehicle.



Thank you
