Re: [sumo-user] Changing the overtaking lane in NETEDIT

[Flix Chu <yattsunchu1006@xxxxxxxxx>]

Hi Jakob,

I have tried the changing vehicle parameters method by modifying the lane changing behaviour. The one that I have done is increasing the lcSpeedGain to 10 and lcTimeToImpatience to 10 seconds, with default value 0 for the lcOvertakeRight. I found that the occurrence of lane changing on the extra lane is greatly reduced. Is it possible that if I change the lcOvertakeRight value, the vehicles will tend to overtaking using the extra lane on the right side? Thank You.

Best Regards,

Felix

On Fri, 3 Apr 2020 at 18:02, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

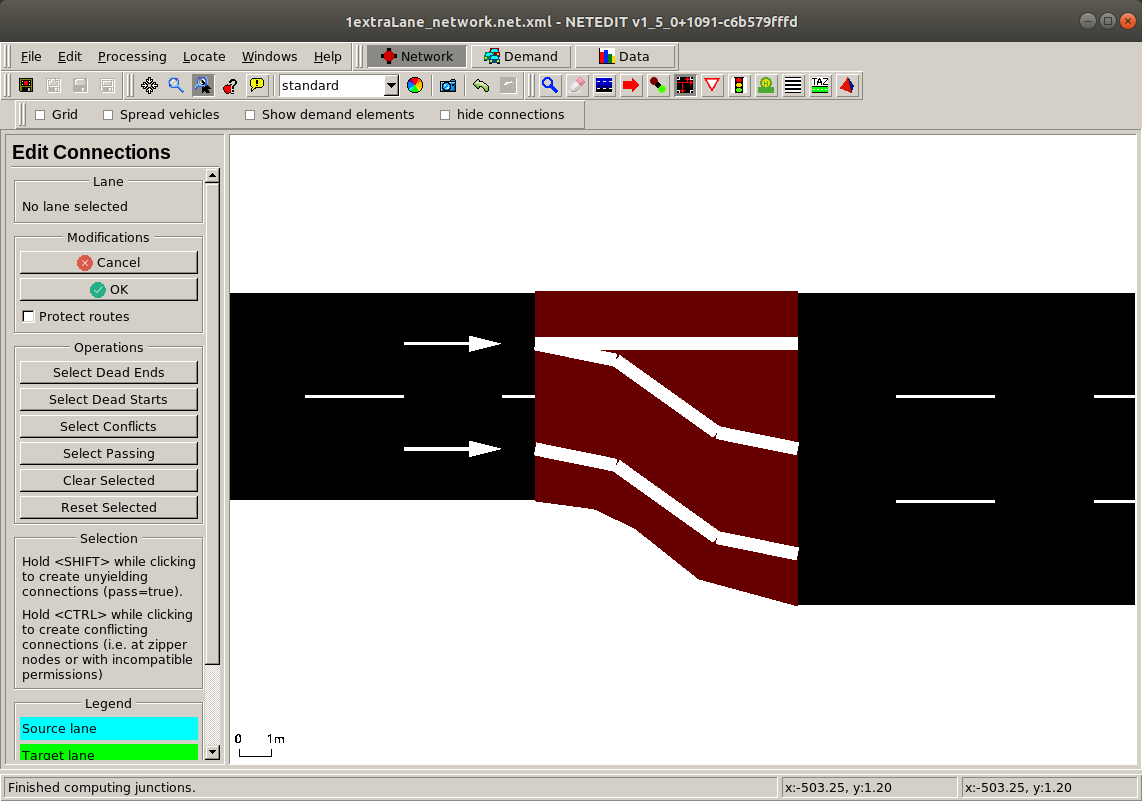

From the simulation point of view the geometrical alignment of the lanes is irrelevant (though you can affect it with edge attribute 'spreadType'). The important aspect is the connectivity between the lanes. If you want the new lane to be on the left side, use netedit connection mode to change connectivity to the pattern in the attached image.

 Note, that you can also change the "keep right" behavior with vehicle type parameters: https://sumo.dlr.de/docs/Definition_of_Vehicles,_Vehicle_Types,_and_Routes.html#lane-changing_models

Am Fr., 3. Apr. 2020 um 11:36 Uhr schrieb Flix Chu <yattsunchu1006@xxxxxxxxx>:

Hey guys,

I am building a network using NETEDIT, and there is something I want to change. I notice that the vehicle follows a 'keep right' rule of running. Therefore, I want to change the position of the extra lane by having it on the left side of the road (by default it's on the right side). How could I change this?

The attached will be the network file that I'm working on. I appreciate your help.

Best Regards,

Felix
