Re: [sumo-user] Visualizer
You can also load arbitrary images for the vehicles by using the vType attribute 'imgFile' and setting vehicle rendering to "show as raster images".


Am Mi., 15. Mai 2019 um 13:41 Uhr schrieb Menno van der Woude <menno@xxxxxxxxxxxxxxxxxx>:

Hey Stefano,

i believe what you want is possible with SUMO-GUI:

  • you can visualize vehicles as desired, e.g. as 'boxes' (SUMO-GUI > view settings > Vehicles
    • i see no option for a custom shape (like a custom svg or a circle or so), not sure if this is supported. the wiki also does not mention this
  • you can set 'draw with constant size when zoomed out', which will result in a form of highlighting
    • e.g. when also setting 'color' to 'by accumulated waiting time' you get a nice global overview of where waiting times as high
  • you can disable break lights also if desired
  • in the same dialog, you can set the background color

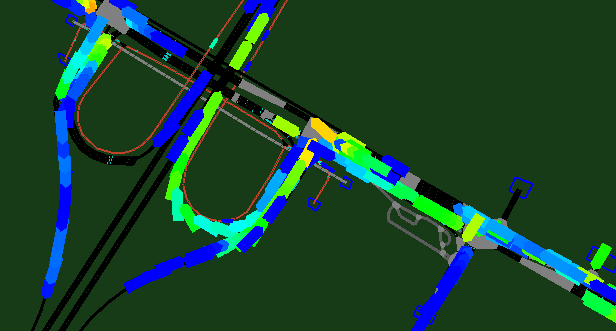

then I get:

would that suffice?

Greets, Menno

On 15-5-2019 11:52, steniero wrote:
Hi,
I was wondering wether there was the possibility, maybe with an add-on program to visualize the simulation with a different layout, I want to see a medium to big scenario and I would like to see in a highlighted way how vehicles move (I was thinking a dark background and vehicles viewed as small lights). I have to present some results and I have need a video with a high graphical impact.

Something close to this style

Thank you

Stefano
