Re: [sumo-user] Adding sidewalks using NETGENERATE and NETEDIT
Hi Jakob,

After following your suggestion, I have successfully added sidewalk lanes through the command line. Thanks! :)

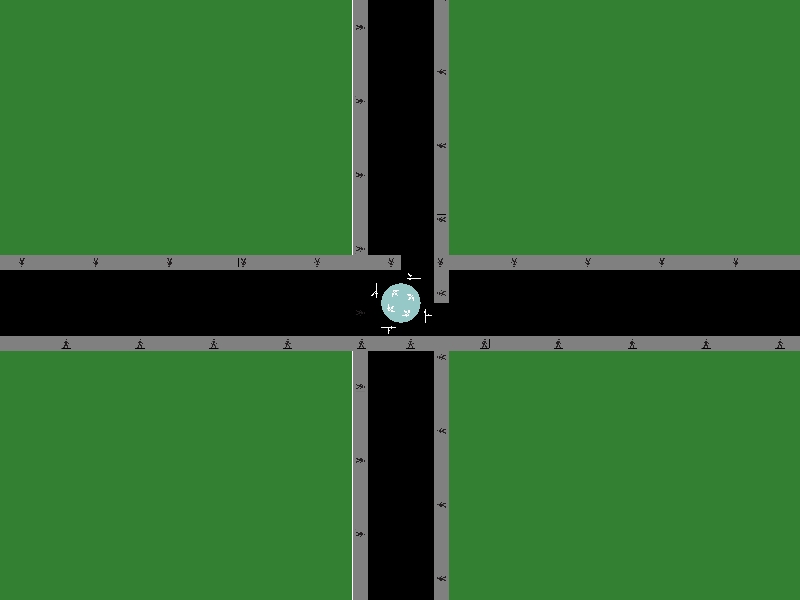

Regarding my question about the length of sidewalks, I have attached a screenshot of one of the junctions of the grid I generated.

I just observed that the sidewalks extend to the roads (sidewalk lanes terminate at the middle of the road). I intend to put pedestrian crossings on some junctions of the grid. To do this, I understand that a sidewalk needs to be in place first before adding the crossing. In that case, my understanding is that I have to extend the relevant sidewalk lanes so that they are connected at the junctions (to be able to add the crossing after). Is this correct? And how do I modify the length of sidewalk lanes?

Thank you.

Kind regards,
Charmae


On Tuesday, 22 May 2018, 12:01:33 PM GMT+2, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:


1) you need to add the option --sidewalks.guess to enable guessing (the min-speed option only configures the heuristic).
2) The length of the sidwalk is automatically adjusted after recomputing geometries (F5) or saving the network. If the length is wrong after that, please explain the problem in detail (with an anotated screenshot).

regards,
Jakob

2018-05-21 16:58 GMT+02:00 Charmae Mendoza via sumo-user <sumo-user@xxxxxxxxxxxxxxxxxxxxx>:
Hello sumo users,
Good day!
I'm a new sumo user. I would like to create a 3x3 grid network (with sidewalks) using NETGENERATE and NETEDIT. I was able to generate the grid, but I'm having some problems when trying to add sidewalks.
I already tried the following methods.
1. Heuristic generationI first set the default speed of edges to 13.1 using the "--default.speed 13.1" syntax in the command line. Then I tried adding sidewalk lanes using "--sidewalks.guess.min-speed 5.1". The description says, "Add sidewalks for edges with a speed above the given limit", so I was assuming that with the two commands, sidewalks will be added on all edges. However, when I checked the generated grid, there are still no sidewalks.
2. Adding special lane in NETEDITI also tried adding a special lane in NETEDIT. I could see that a sidewalk has been added, but the length of the sidewalk needs to be modified because it extends to the roads on both ends of the sidewalk. However, I couldn't find the way to modify its length.
Could you please help me with this?
Thanks a lot! :)
Regards,Charmae
