Thanks Jakob,

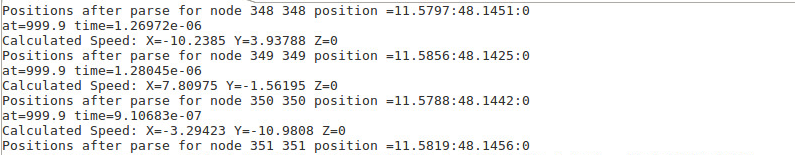

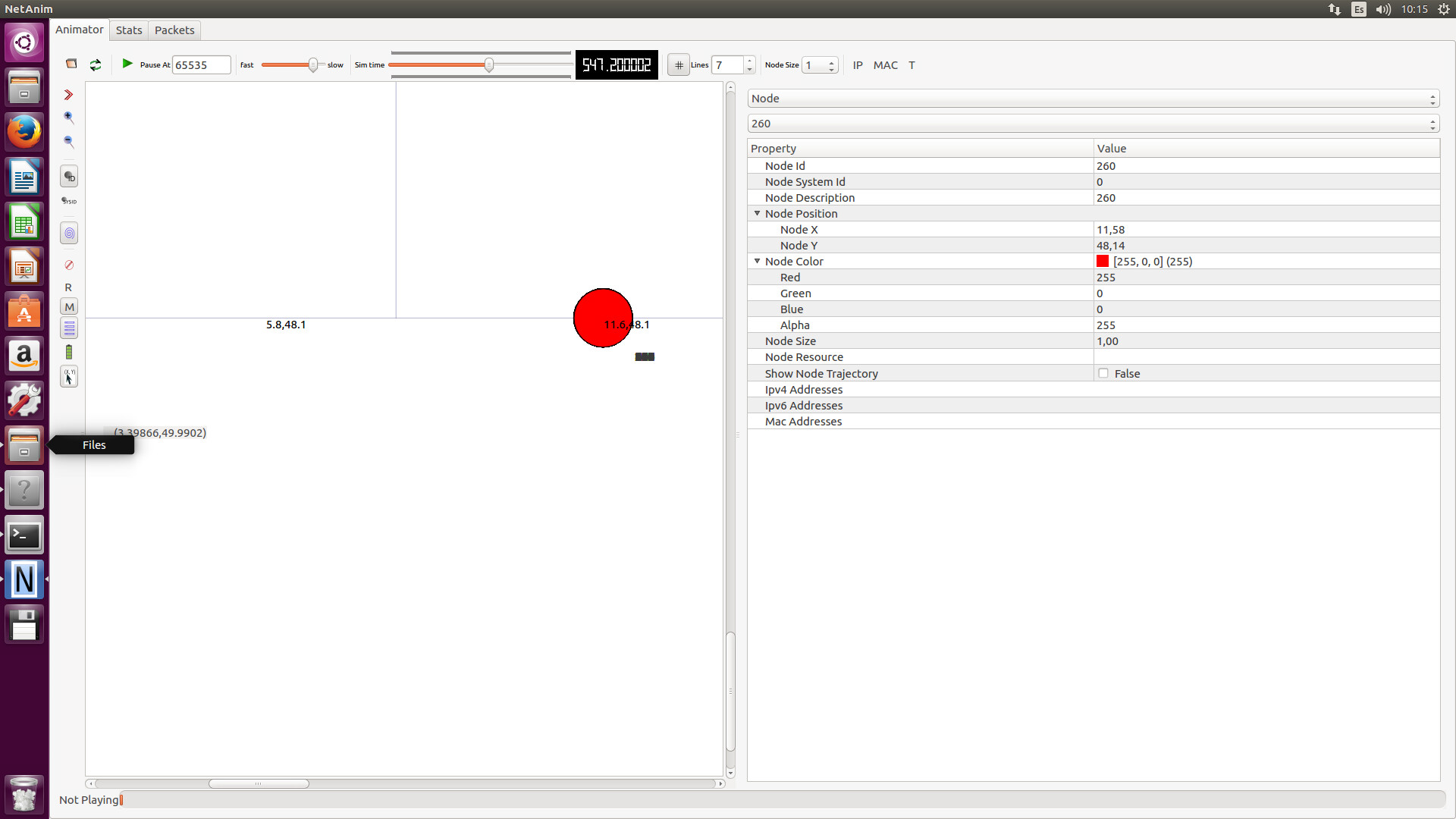

I have managed to simulate via NS3 the exact number of nodes as you suggested. But the nodes don't seem to move in the simulation via NetAnim. In fact, the simulation appears to run correctly ("sim" image) but nodes don't seem to move in NetAnim ("netanim" image), do you know what can be happening here? I don't know if this question relates to your field of expertise (I think it's not) but I'll be grateful if you could point me to semeone how can help me with this issue.

Víctor Caballero (vcaballero@xxxxxxxxxxxx)

Ph.D. Student at La Salle Barcelona - Ramon Llull University

On 20 Oct 2017, at 10:37, Jakob Erdmann <namdre.sumo@xxxxxxxxxxxxxx> wrote:

Hello,

then randomTrips tools with the mentioned parameters -p 1.4 -e 1000 generates ceil(1000/1.4) = 715 vehicle trips.

If your network is fully connected then all of these trips are valid so this is the number of vehicle you will see (not all at the same time, however).

The warning regarding nodes without mobility results from trips that are invalid (which likely happens when picking origin and destination randomly). Thus the sequence of ids in the rou.xml file is not continuous. To find out the total number, either run sumo with the option --verbose (which will list the total number of vehicles) or run 'grep -c "<vehicle " cars.rou.xml'

If you need a fixed number of vehicles in your simulation, see http://sumo.dlr.de/wiki/FAQ#How_do_I_maintain_a_constant_number_of_vehicles_in_the_net.3F

regards,

Jakob

2017-10-20 9:54 GMT+02:00 Víctor Caballero Codina <vcaballero@xxxxxxxxxxxx>:

Hello,

I have followed this example to generate random trips https://www.youtube.com/watch?v=Mh4WnY4KY4Y . In this example, there are two commands that generate trips, one of them is: python sumo/tools/randomTrips.py --n Munich.net.xml -r cars.rou.xml -t "type=\"car\" departSpeed=\"max\" departLine=\"best\"" -c passenger --additional-files car.add.xml -p 1.4 -e 1000 -l .

Then, I'm trying to import the generated simulation file (after running sumo) in NS3 via ns2-mobility-trace.cc and generate a file for NetAnim. I am concerned by the following:

- I have to specify the total number of nodes. The only way I am aware of knowing the number of total nodes is doing a tail cars.rou.xml , where I will see the last id. How can I specify it at generation step?

- I have added "AnimationInterface anim("animation.xml")" before the simulation starts, but at the end of the simulation, NetAnim outputs warnings like "AnimationInterface WARNING:Node:1 Does not have a mobility model. Use set constant position if it is stationary.". Do I need to set a mobility model? The traces are already generated by SUMO, aren't they? How can I fix that?

- Visualizing the generated "animation.xml" file via NetAnim shows nodes at constant position. I guess that by fixing the problem explained above this will be fixed.

Thanks in advance.

Víctor Caballero (vcaballero@xxxxxxxxxxxx)

Ph.D. Student at La Salle Barcelona - Ramon Llull University
