Re: [sparkplug-wg] Specification v2.2, Typo in Figure 4 ?

[Zaiming Shi <zmstone@xxxxxxxxx>]

Hi again.

Just noticed that it's been fixed here:

https://github.com/eclipse/sparkplug/issues/78

Then my question becomes: when can we expect an updated version published here: https://sparkplug.eclipse.org/

On Tue, Feb 1, 2022 at 12:16 PM Zaiming Shi <zmstone@xxxxxxxxx> wrote:

Hi all.

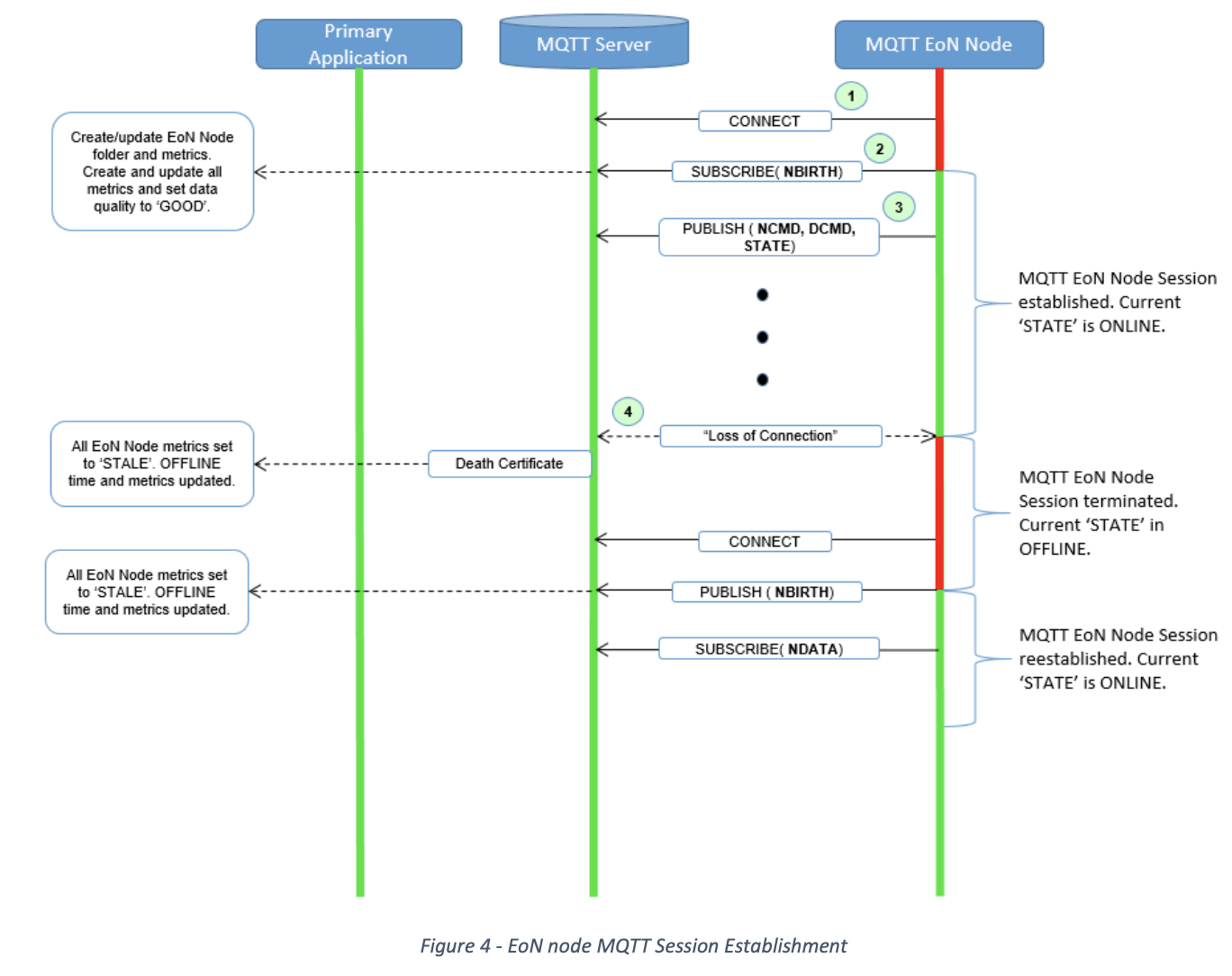

While studying the specification, I'm a bit puzzled by Figure 4, EoN node Session Establishment flow chart (pasted a screenshot).

If I understand it correctly:

* Step 2 should be a "PUBLISH" (but not "SUBSCRIBE") of the NBIRTH message

* Step 3 should be a "SUBSCRIBE" (but not "PUBLISH")

Otherwise, I may need some help to understand how these two steps work.

Regards

/Zaiming
